iNSANE BARGAIN

YiToo RFID Fingerprint Access Control System Door Lock, IP68 Fully Waterproof Electric Lock Set For Home Safe, Outdoor [SEC]

YiToo RFID Fingerprint Access Control System Door Lock, IP68 Fully Waterproof Electric Lock Set For Home Safe, Outdoor [SEC]

Regular price $163.99 AUD
Regular price $0.00 AUD Sale price $163.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:1005002674821155-F20IC Kit8-Other

Color
Mortise Lock Size

SPECIFICATIONS

Brand Name: YiToo

Origin: Mainland China

Ways To Unlock: REMOTE CONTROL

Ways To Unlock: Card

Ways To Unlock: Other

Ways To Unlock: Password

Ways To Unlock: FINGERPRINT

Material: aluminium alloy

Model Number: F20

Certification: CE

Doorknob Funcition: Biometric

Smart home platform: Other

waterproof Level:: IP68 Fully Waterproof

Biometric Features:: 360-Degree ringerprint recognition

Fingerprint Capacity: 500 Fingerprints

Security Mode: Fail Safe Mode

Working Voltage: DC 12V

Working Frequency: 13.56MHz

Unlocking method:: Fingerprint/Password/RFID Card

Applicable door:: Wooden Door/Iron Door/Metal/Glass Door

Keypad Dimension:: 138X67X37mm( L/W/H )

Type A: keypad power supply home

Type B: keypad power supply 180kg locks

Type C: electronic locks for doors

Type D: rfid door lock

































Programming Video















































































































Fingerprint Access Control System Kits For Smart Door Lock Security




Product Description

360 degree comprehensive fingerprint recognition, fast Identify Speed

For different angles of fingerprints, it can be quickly and accurately identified

Support Fingerprint, RFID Card, Password to open the door
Support 120 fingerprints and cards. 1 team password user capacity  open the door, more secure!IP68 waterproof, Can be installed outdoor
WIth Full PC Glue in the back side,  IP68 Rating, can work in the rain and starm.Backlight keypad

In the dark, you can also enter the password to unlock normally

Easy installation and operation.

Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.


Electric Locks:

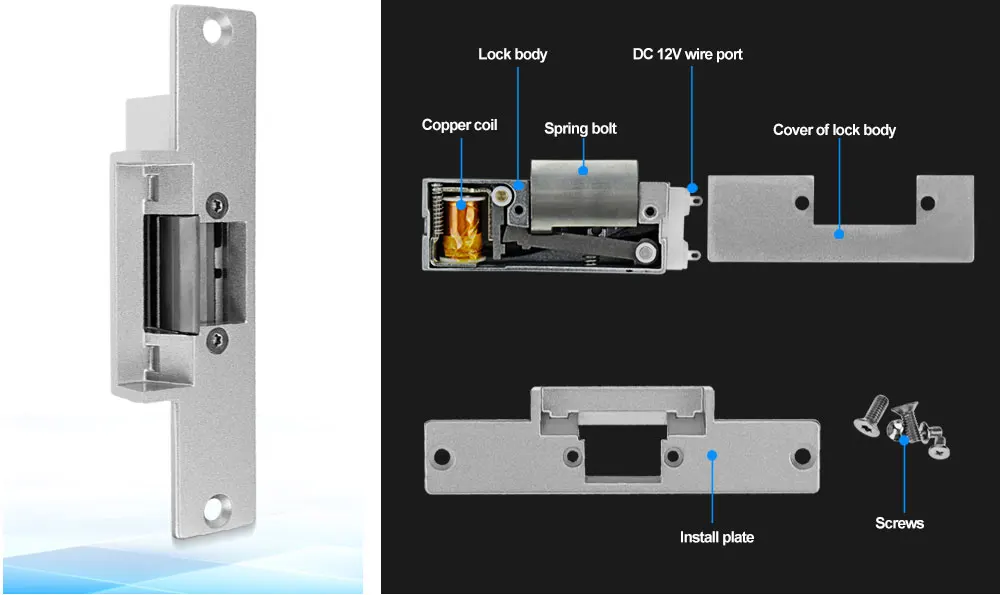

①Electric Strike Lock

Material: Stainless Steel
Holding Force: 500kg
Working Voltage: DC 12V
Working Current: 200mA
Operating Humidity: 0~90%
Face plate Housing: Painted Steel
Opening Mode: 90 Degree Swinging Door
Size: 150*28 mm
Suitable Temperature: -30~+55 Celsius Degree
Suitable for: Wooden door (90 degree swinging door)
Security Mode: NC mode (normal close), the lock will be locked when power on, unlocked when power off.

Please noted: we also have NO mode version. If you need it, please leave message to us.

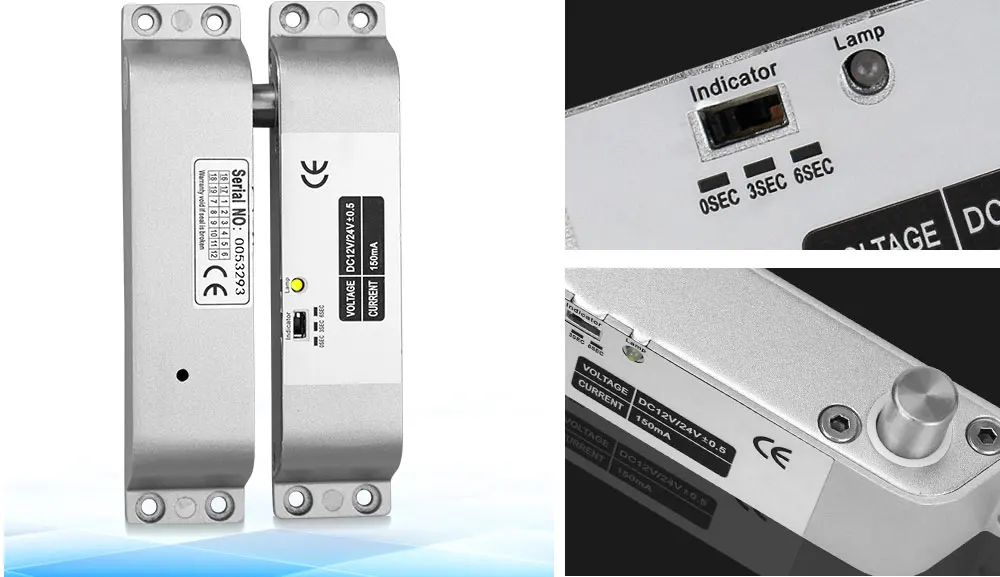

②Electric Drop Bolt Lock

Material: Aluminum Alloy
Working Voltage: DC 12V
Current: Star-up: 1.2A; Working: 0.25A
Wires: Red-power supply (+), White-COM, Black-Power Ground(-), Yellow-NC
Lock core: The diameter og 12.5MM stainless core, extending the length of 15MM
Size: 150*34*28 mm
Working temperature: -30~ 55 Degree Celsius
Time delay: 0/3/6 second ( Factory setting: 0 )
Security Mode: NC mode (Fail Safe mode: Locked when power on, unlock when power off.)
Suitable for: wooden, metal door, security door, etc.

Please noted: when you connect this lock, you should connect the red line to "NC" of the power supply and the black line to "GND" of the power supply. Other lines doesn't need to be connected.

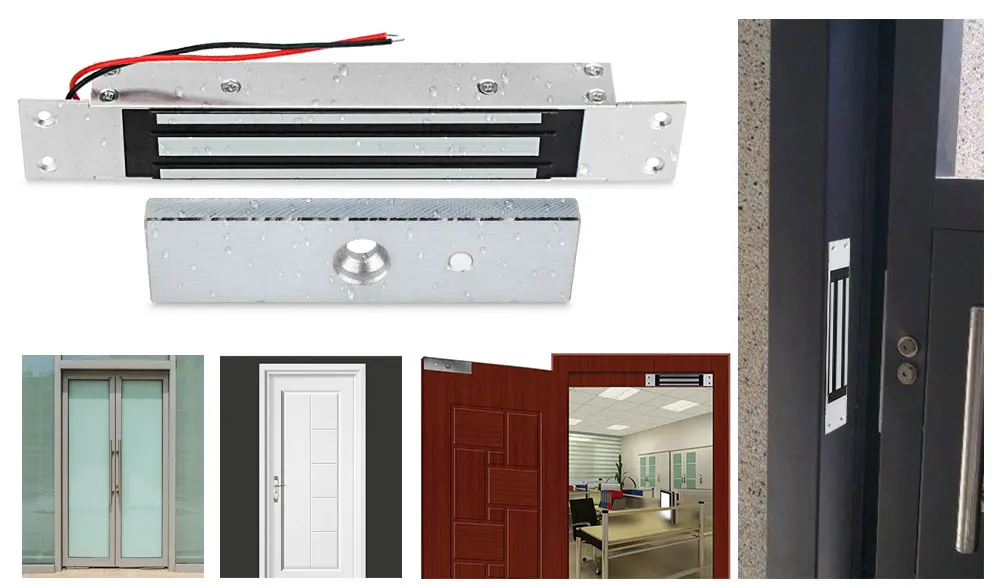

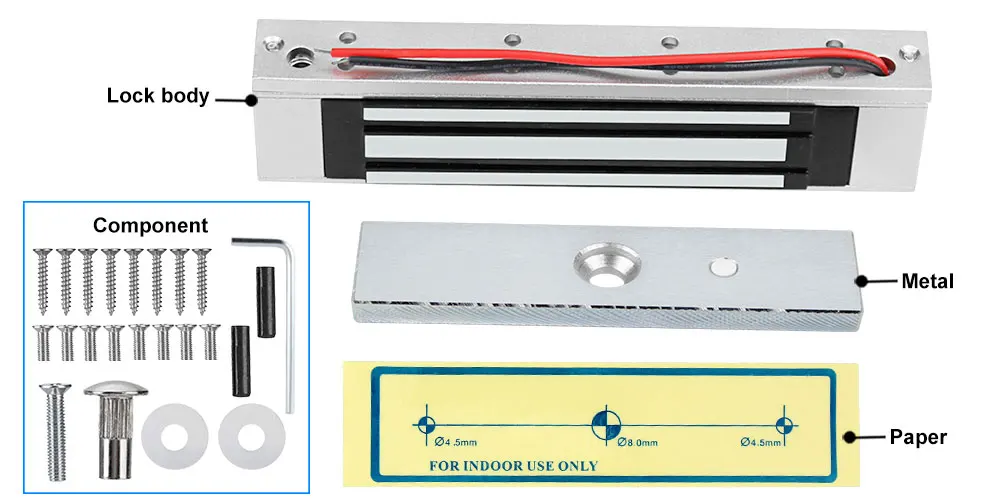

③180KG Standard Magnetic Lock

Holding Force: 180KG/380lbs
Material: Stainless steel
Working Voltage: DC 12V
Anti-Residual Magnesium Designed
Performance Testing:1000000 times aging test
Safety Function: Built-in voltage spike suppressor
Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door, etc.
Security Mode: NC Mode (Fail Safe Mode: Locked when power on, unlocked when power off.)
Dimension: 172*40*21 mm/ 130*33*10 mm
Feature: unfold install mode, NC type, without LED light, waterproof, can be installed outdoors.

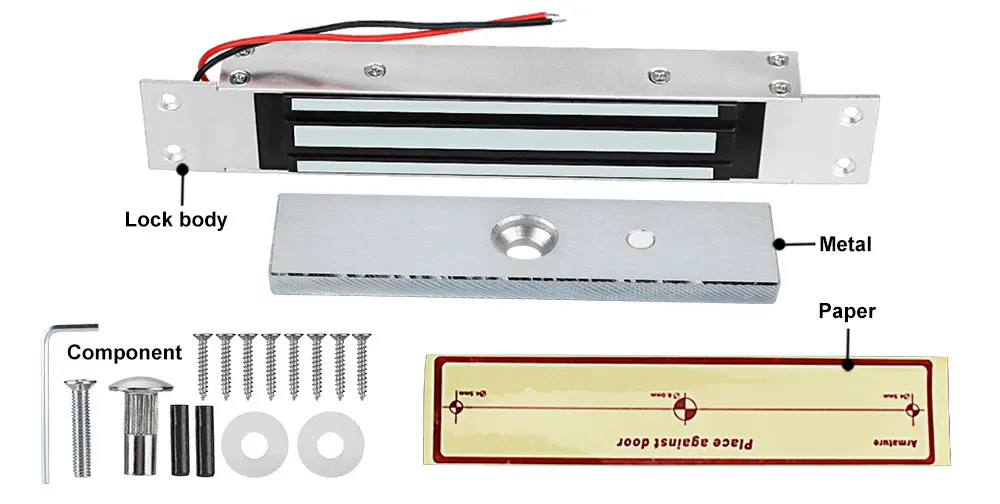

④180KG Magnetic Lock (embedded install mode)

Holding Force: 180KG/380lbs
Material: Stainless steel
Working Voltage: DC 12V
Anti-Residual Magnesium Designed
Performance Testing: 1000000 times aging test
Safety Function: Built-in voltage spike suppressor
Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door, etc.
Security Mode: NC Mode (Fail Safe Mode: Locked when power on, unlocked when power off.)
Dimension: 190*30*20 mm/ 130*33*10 mm
Feature: embedded install mode, NC type, without LED light, waterproof. Can be installed outdoors.





Power Supply:

1. AC input: Standard AC100V-240V 50-60HZ

2. DC output: Stability volt DC12V/ 3 A

3. Package Dimensions: 117 x 68 x 32mm

4. Remote control function: Yes

5. Dimension: 138X67X37mm( L/W/H )

Door Exit Button:

Material: High Quality ABS Plastic

Maximum Power Rating: 36V DC 3A—5A output

Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM ( L / W )

RFID Keyfobs:

13.56MHz frequency RFID key card

Operating frequency: 13.56MHz

Detection range: 0-10cm

Quantity: 10 pcs.

We would send you the blue key fobs by default. If you need other color, please contact us.

Kits for a Complete Access Control System

A complete set of entrance guard system for wooden doors, metal doors and glass doors, etc.
It generally include an access control keypad, a professional power supply, an indoor release switch button, an electric door lock, and some RFID key fobs cards. You can choose the kit according to the type of your door. If you don't know how to choose, please feel free to contact us, thank you.

Kit3: Fingerprint Access Controller with NC Type Electric Strike Lock

Suitable for wooden door, metal door, no need bracket.

Package including: Access Control keypad + Power supply + Electric Strike lock + Exit button + 10pcs Keyfobs
NC model (Locked when power on, unlocked when power off), if you want NO type, please leave us a message.

Kit4: Fingerprint Access Controller with Electric Drop Bolt Lock

Suitable for wooden, metal and stainless steel door, no need bracket.

Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs


Kit5: Fingerprint Access Controller with 180KG(380lbs) Electric Magnetic Lock

Suitable for wooden, metal and glass frame door, no need bracket.

Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs

Kit6: Fingerprint Access Controller with 180KG(380lbs) Electric Magnetic Lock and U Bracket

Suitable for frameless glass door. Need U bracket.

Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs

Kit7: Fingerprint Access Controller with 180KG(380lbs) Electric Magnetic Lock and L Bracket

Suitable for wooden, metal door. Need L bracket.

Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs
look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.

Kit8: Fingerprint Access Controller with 180KG(380lbs) Electric Magnetic Lock and ZL Bracket

Suitable for wooden, metal, glass door. Need ZL bracket.

Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs
If your door is open from indoor, then need to add the ZL bracket.

Kit9: Fingerprint Access Controller with 180KG(380lbs) Electric Magnetic Embedded Lock

Suitable for wooden, metal and glass frame door, no need bracket.

Package including: Access Control keypad + Power supply +180KG Electric Magnetic Embedded Lock + Exit button + 10pcs Keyfobs


Wiring Diagram
