WPC10 Digital Water Pressure Switch Digital Display Eletronic Pressure Controller For Water Pump With G1/2"Adapter [PUM]

WPC10 Digital Water Pressure Switch Digital Display Eletronic Pressure Controller For Water Pump With G1/2"Adapter [PUM]

$47.00 USD
$0.00 USD $47.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

32867103566-Default Title

Default Title

SPECIFICATIONS

Package Weight: 0.350kg (0.77lb.)

Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)

Brand Name: JOEKOL

Item Type: SWITCHES

Switch Type: Pressure Switch

Certification: CCC

Warranty: 1 Year

Model Number: WPC-10

Material: Copper

Features: Switches

Current: Other

Origin: Mainland China

Certification: CE

semi_Choice: yes

Digital Pressure Control Switch WPC-10 Digital Display WPC 10 Eletronic Pressure Controller for Water Pump With G1/2"Adapter

Technical Parameter:
Pressure Range
0-10KG/CM2
Voltage Supply
220Vac(You require a 3 phase AC contactor with 380V pump)
Technical Parameter:
Pressure Range
0-10KG/CM2
Voltage Supply
220Vac(You require a 3 phase AC contactor with 380V pump)
Connection
G1/2(Standard),it also can be customized
Overload Capacity
220V,10A; Pump(≤1.5KW) can be started directly
Product Feature:
 environment-friendly:silent design
Safe: IP65,water-proof case,water-shortage protection
Intelligent: Preventing the pump automatically restart frequently
 Reliable: Electronic Design, long-life for using, more than 200,000 times operation,anti-vibration
Widely application:Pipeline Pump,Booster Pump,Self-priming pump,Immersible Pump,Circulating Pump ect.,widely using for solar heat pump,air-source heat pump,WILO home booster pump,Grundfos hot water circulating pump and other relevant pumps.
Description of Using:
Water Supply from Upstairs to Downstairs
Pressure relief valve
The position of device
Height
the lowest outlet of water
The Upper Value=The Max. Pressure of Pump -0.5KG
The lower value=0.5KG
Water shortage protection value=0.2KG
Water Supply from Downstairs to Upstairs:
the highest outlet of water
The Upper Value=The Max. Pressure of Pump -0.5KG
The lower value=H*0.1KG+0.5KG
Water shortage protection value  ≤H*0.1KG
Immersible pump automatic control
The position of device
Height
the highest outlet of water
the surface location of water
The Upper Value=(The Max. Pressure of Pump-H )*0.1KG-0.5KG
The lower value=H1*0.1KG+0.5KG
Water shortage protection value  ≤H1*0.1KG
REAR THE CODE
CODE
MEANING
HOW TO USE
H2.9
Upper value,stop 2.9KG
You can set it as instruction
L1.5
Lower Value,stop 1.5KG
You can set it as instruction
F0.2
Water shortage protection  0.2KG
You can set it as instruction
E-F
Water shortage protection
Press ON/OFF to restart or waiting for restart automatically
E-H
Error,over the pressure range or the sensor damaged
Check the pressure source
The wiring
Please see the back of the WPC-10 pressure control, the left is Chinese word "power", you can supply 220Vac from here, the right is Chinese word "motor", please connect it with the pump 220Vac supply terminal.

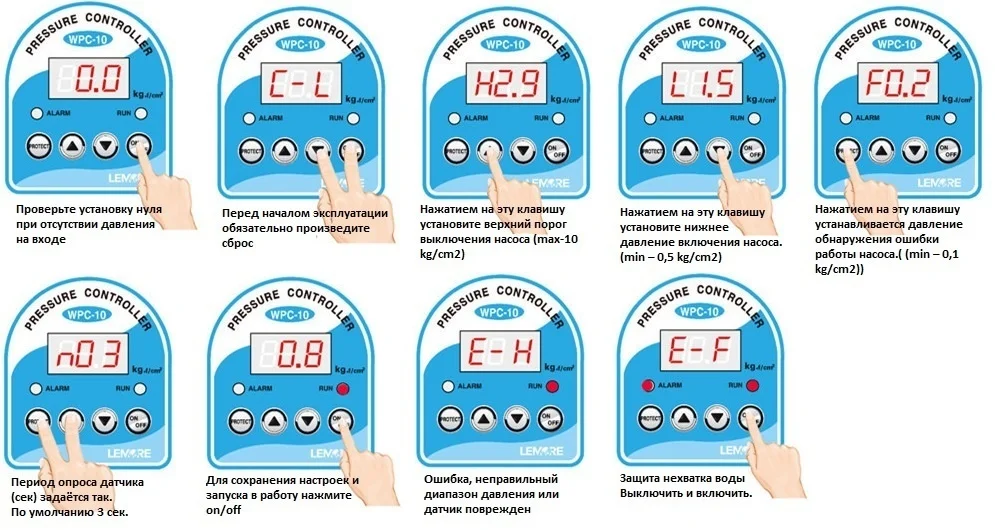

Russian Manual!

Description Of Using


Water Supply from Upstairs to DownstairsImmersible pump automatic control


The Upper Value=The Upper Value=

The Max. Pressure of Pump -0.5KG(The Max. Pressure of Pump-H )*0.1KG-0.5KG

The lower value=0.5KGThe lower value=H1*0.1KG+0.5KG

Water shortage protection value=0.2KG         Water shortage protection value≤H1*0.1KG





Water Supply from Downstairs to Upstairs





The Upper Value=The Max. Pressure of Pump-0.5KG

The lower value=H*0.1KG+0.5KG

Water shortage protection value≤H*0.1KG



Technical Parameter

Pressure Range

0-10KG f/CM

Voltage Supply

220Vac(You require a 3 phase AC contactor with 380V pump)

Connection

G1/2(Standard),it also can be customized

Overload Capacity

220V,10A; Pump(≤1.5KW) can be started directly


Read The Code

Code

Meaning

How To Use

H2.9

Upper value,stop2.9KG

You can set it as instruction

L1.5

Lower Value,stop1.5KG

You can set it as instruction

F0.2

Water shortage protection  0.2KG

You can set it as instruction

E-F

Water shortage protection

Press ON/OFF to restart or waiting for restart automatically

E-H

Error,over the pressure range

Check the pressure source

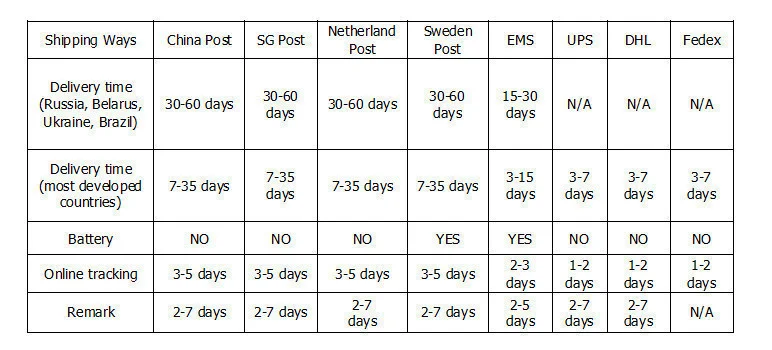

Shipment
