iNSANE BARGAIN

Quansheng UV K5 (8) Walkie Talkie Am Fm Two Way Radio Commutator Station Ham Wireless Set Long Range Receiver Quansheng UV-K6 [TEL]

Quansheng UV K5 (8) Walkie Talkie Am Fm Two Way Radio Commutator Station Ham Wireless Set Long Range Receiver Quansheng UV-K6 [TEL]

Regular price $79.99 AUD
Regular price $0.00 AUD Sale price $79.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:1005006368154768-Standard Add Antenna-CHINA-american

Color
Ships From
Plug standard

SPECIFICATIONS

Brand Name: quansheng

Battery Capacity(mAh): 1600mAh

Origin: Mainland China

Waterproof / Water-Resistant: No

Maximum Range: 3km-5km

Model Number: Quansheng UV-5(8)

Is_Display: Yes

Walkie Talkie Type: Portable

Output Power(w): 3w-5w

Material: Plastic

Storage Channel: 200

Frequency Range: VHF 136~174MHz UHF 400~520MHz

Dimensions: 115*60*37.5mm

Certification: CE

Certification: FCC

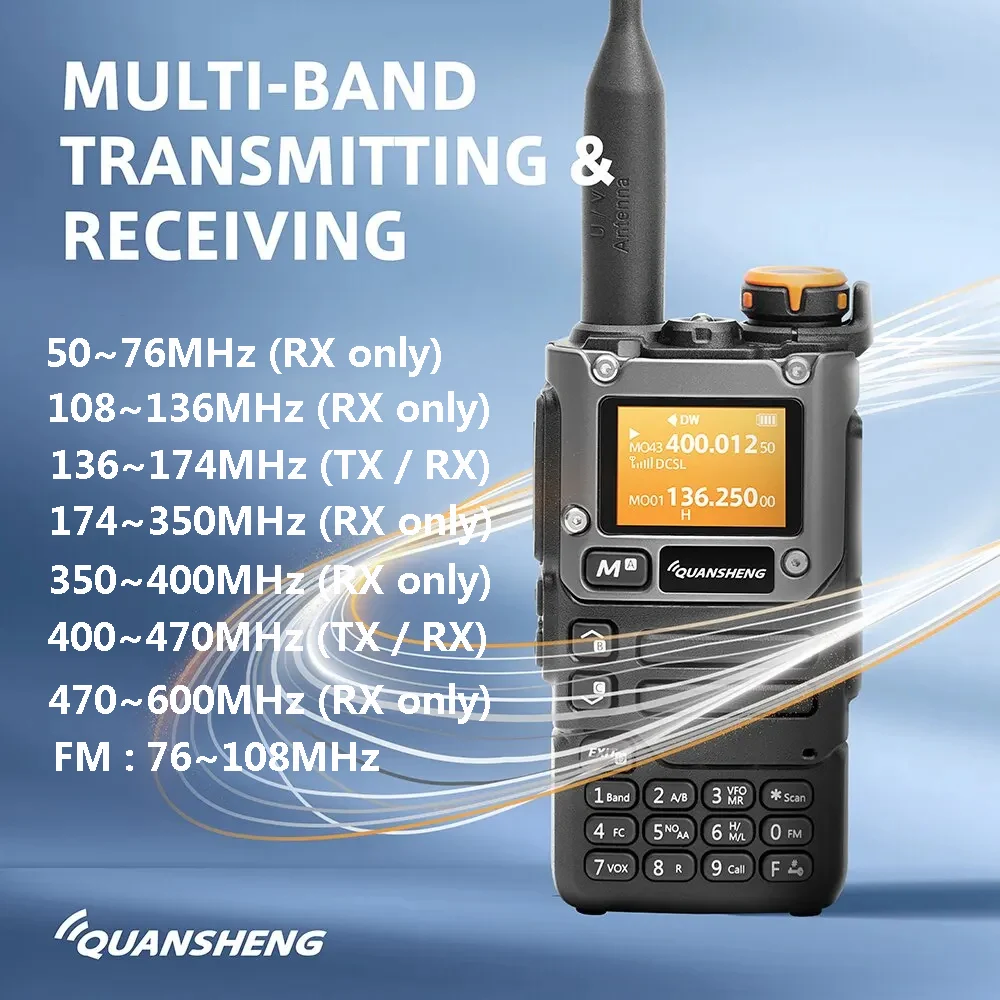

FM: 76.000-108.000MHz

F1: 50.0000-76.0000MHz(RX only)

F2: 108.0000-135.9750MHz(RX only)

F3: 136.0000-173.9750MHz(TX and RX both)

F4: 174.0000-349.9750MHz(RX only)

F5: 350.0000-399.9750MHz(RX only)

F6: 400.0000-469.9750MHz (TX and RX both)

F7: 470.0000-600.0000MHz(RX only)

Weight: 240g

Quansheng UV K5 (8) Walkie Talkie Am Fm Two Way Radio Commutator Station Ham Wireless Set Long Range Receiver Quansheng UV-K6

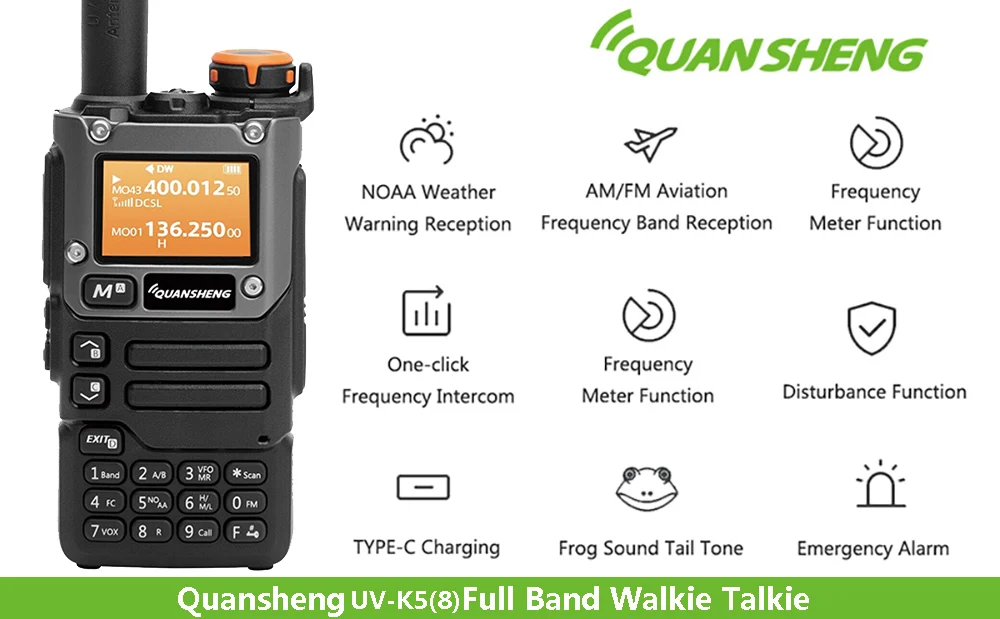

Main Features :

* UV-K5(8) multi-band walkie talkie
* One-click frequency matching
* 50-599MHz (ultra-wide frequency reception)
* Three-band transmission and six-band reception
* FM radio
* AM/FM air-band reception
* Cross-band intercom function
* With type-c charging port, it is convenient to use the device whether you stay outdoors, in a car or in a hotel
* With frequency meter (frequency measurement) function
* Wireless frequency replication: The frequency of another walkie-talkie can be quickly copied. Realize batch replication of frequency over the air and quickly build channels
* 200 channels can be saved
* 8 groups of voice can be encrypted (scrambling)
* Multiple scanning and VOX
* Digital signaling CTCSS/DCS
* Automatic/manual emergency alarm
* Receive NOAA weather alerts
* 5W real power
* Display multiple bands, VHF and UHF
* 1600mah polymer lithium-ion battery enables longer standby time. It is able to meet the needs of communication throughout the day. 12 hours of continuous use and 72-hour standby time
* LED flashlight with strong light

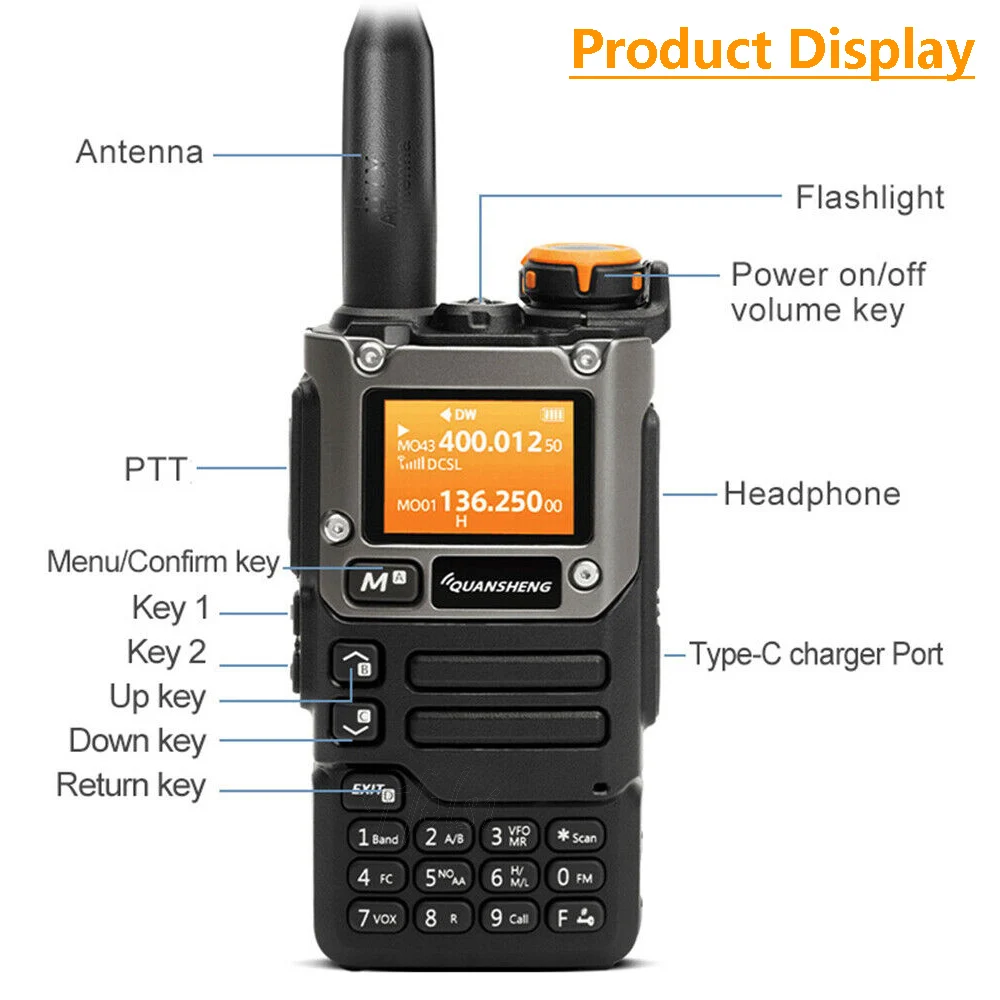

BUTTON F+ Button 3 to switch Channel mode to Frequency Mode

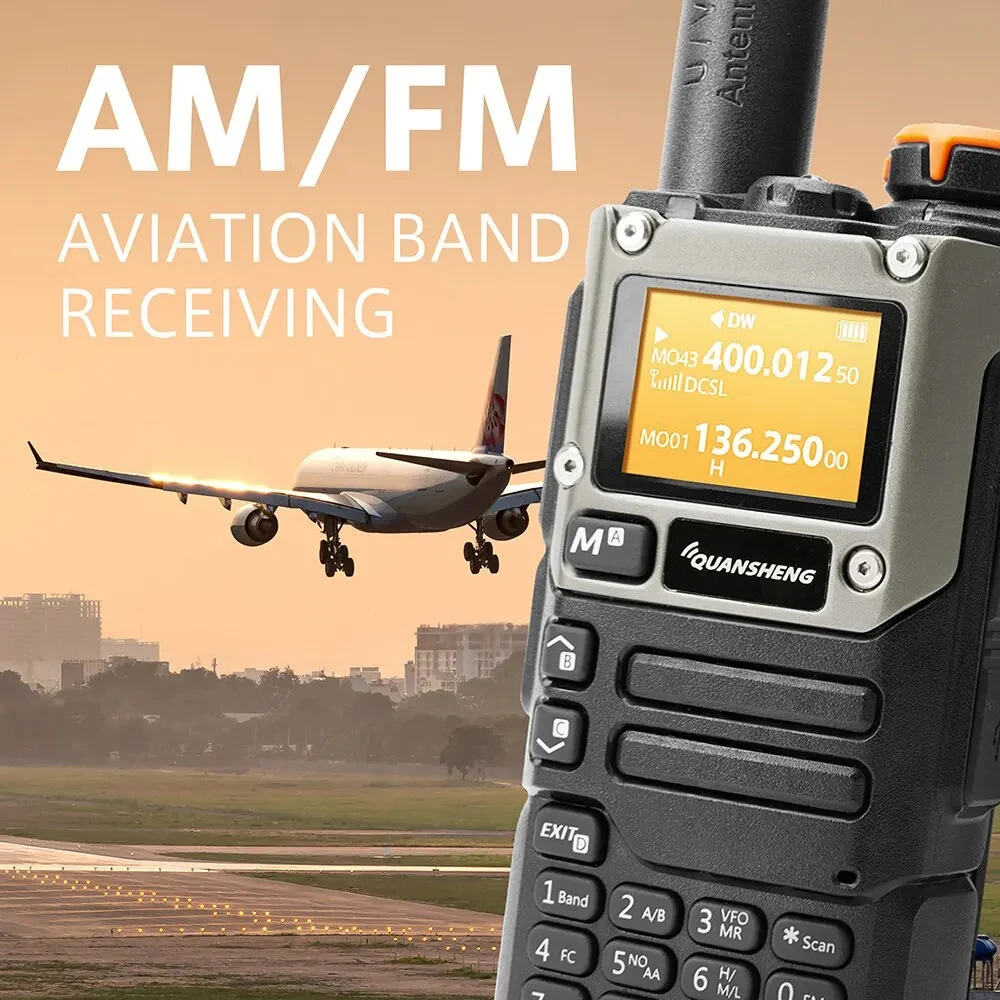

Air Band Receiving :

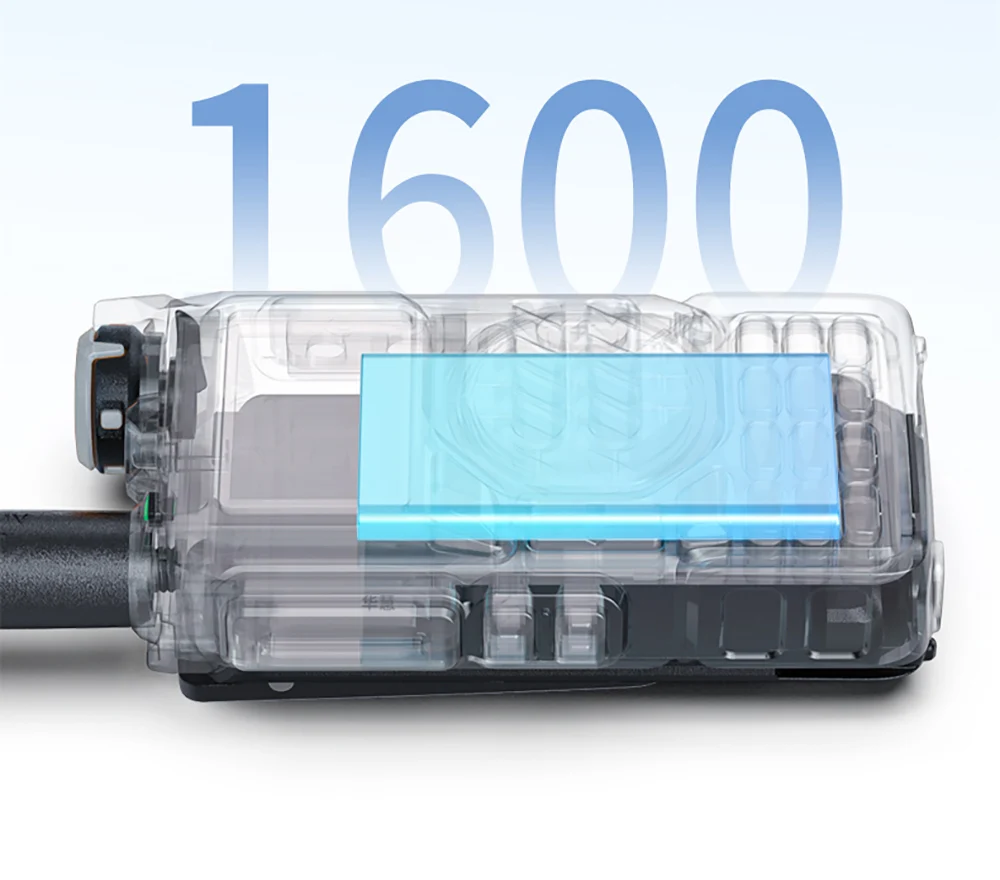

1600mAh Rechargable Li-ion Battery :

Automatic power saving function to extend battery life

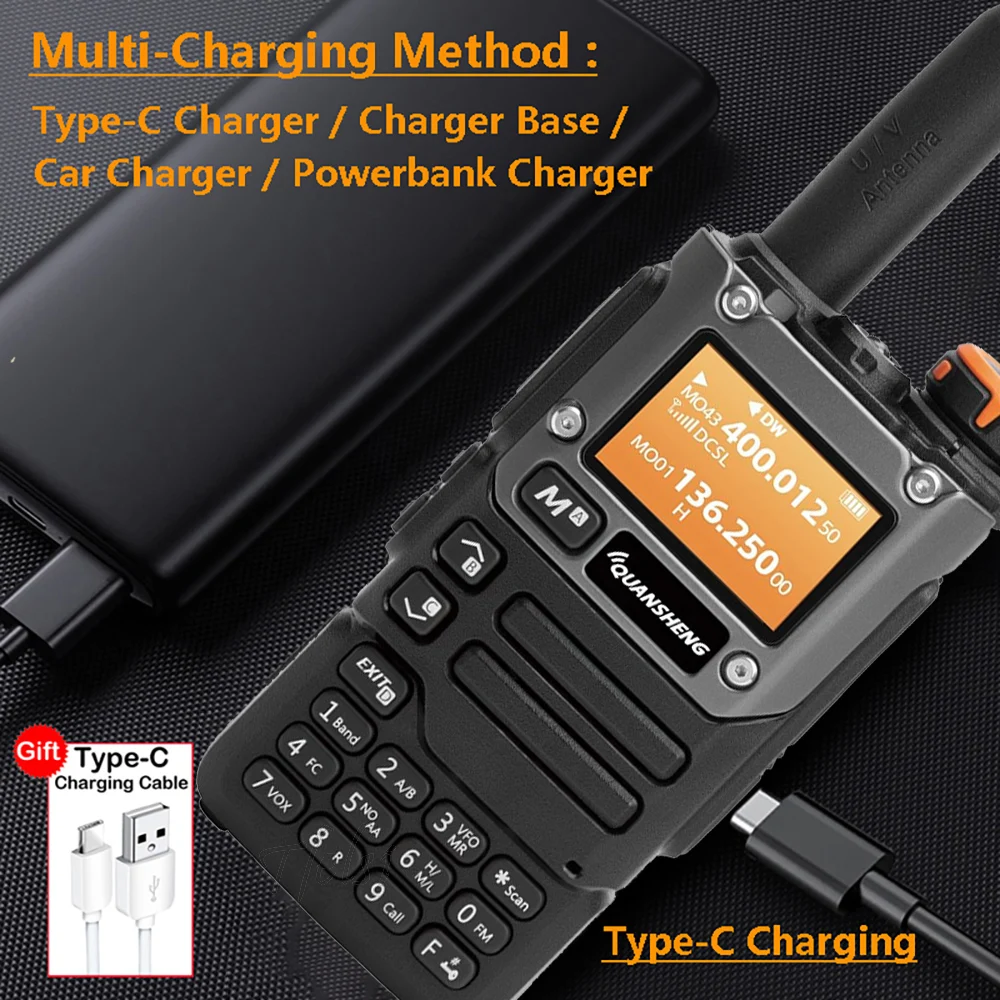

Multi-Charging Method :

Specifications :

Memory Channel Number : 200
Channel Number for FM Commercial Radio : 20
NOAA Memory Channel Number : 10
Frequency Stability : ±1ppm
Modulation : FM : 11KOF3E(12.5KHz),16K0F3E(25KHz)
Working Temperature :-20°c~ +60°c
Antenna Impedance :50 euros
Battery capacity :1600mAh
Reference sensitivity :
FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm
F3(136∽173.9975) -123dBm
F4(174∽349.9975) -123dBm
F5(350∽399.9975) -123dBm
F6(400∽469.9975) -123dBm
F7(470∽599.9975) - 121dBm
WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm
Audio Rated : ≥0.5W
Audio Distortion :≤10%
Transmission :
Frequency Range :136-173.9975MHz / 400-469.9975MHz
Output Power : 5W / 4W
Working Current : ≤1.5A / ≤1.5A
Max.Frequency Deviation :≤5KHz(25KHz),≤2.5KHz(12.5KHz) /
≤5KHz(25KHz),≤2.5KHz(12.5KHz)
Modulation Distortion : ≤5% / ≤5%
Spurious Radiation : ≤7.5uW / ≤7.5uW
Adjacent Ch. Power :70dB(25KHz),60dB(12.5KHz)/
70dB(25KHz),60dB(12.5KHz)
Inter-modulation : 40dB / 40dB

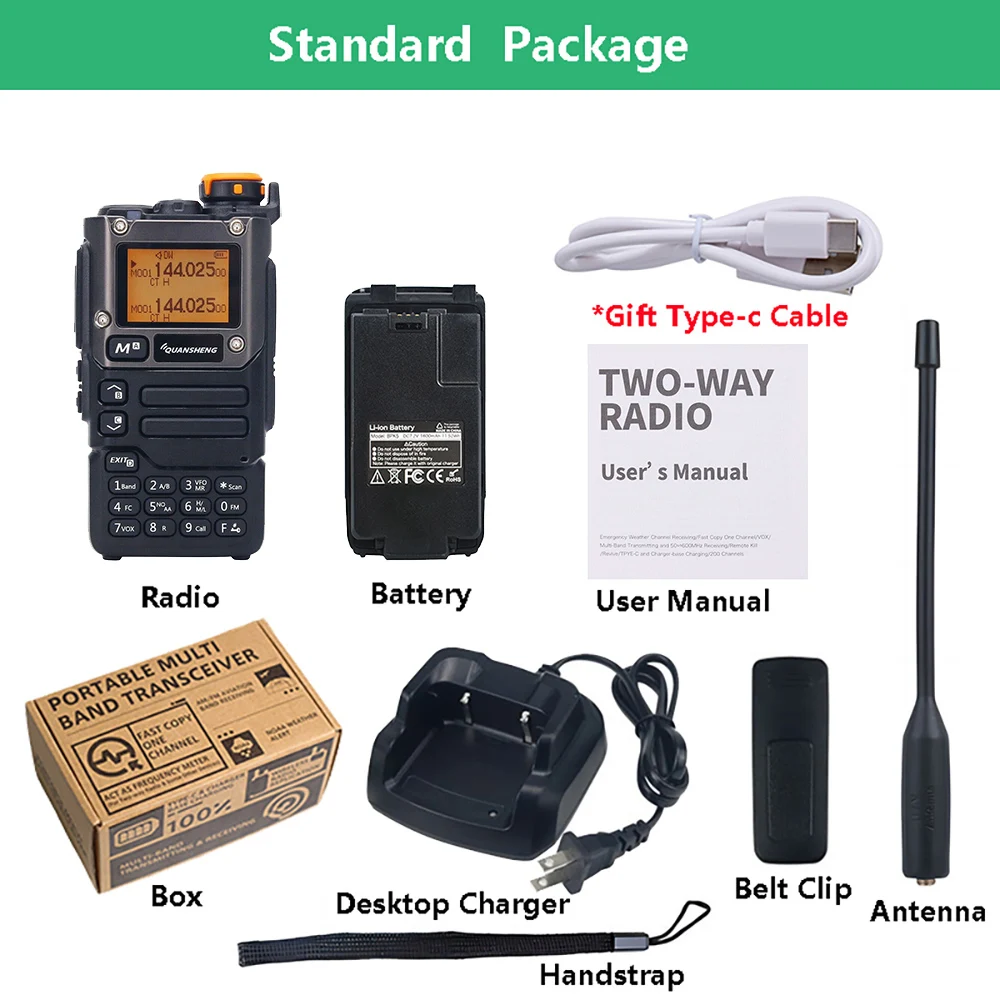

Standard Package Includes:

1 x UV-K5(8) Radio
1 x 1600mah Li-ion Battery
1 x Antenna
1 x Belt Clip
1 x Lanyard
1 x User Manual
1 x Charger
1 x Type-C Cable
If you buy other accesorries listed in the picture, we will send accordingly.
