iNSANE BARGAIN

Quansheng UV 5R Plus Walkie Talkie Portable Am Fm Two Way Radio Commutator VHF Station K5 Receiver Ham Wireless Set Long Range [TEL]

Quansheng UV 5R Plus Walkie Talkie Portable Am Fm Two Way Radio Commutator VHF Station K5 Receiver Ham Wireless Set Long Range [TEL]

Regular price $68.99 AUD
Regular price $0.00 AUD Sale price $68.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:1005005805238208-1Pcs-PC Cable

Color

SPECIFICATIONS

Storage Channel: 200

Brand Name: quansheng

Model Number: UV-5R PLUS

Frequency Range: UHF:400-470MHz/VHF:136-174MHz

Walkie Talkie Type: Portable

Material: Plastic

Is_Display: Yes

Maximum Range: 3km-5km

Waterproof / Water-Resistant: No

Dimensions: 115*60 * 37mm

Battery Capacity(mAh): 2200

Origin: Mainland China

Certification: CE

Certification: FCC

Certification: RoHS

Output Power(w): 3w-5w

Choice: yes

• Long Range :Communicate over a distance of up to 5km with this walkie talkie, making it perfect for outdoor activities and emergency situations.


• Portable :Take this lightweight and compact walkie talkie with you wherever you go, ensuring that you're always connected.


• Am Fm Two Way Radio :Enjoy crystal-clear audio with the AM and FM radio features, making it easy to stay entertained while on the go.


• VHF Station K5 Receiver :The VHF station K5 receiver ensures that you can communicate with other walkie talkies in your area, even in remote locations.


[ 200 Channel ] - [ Cross-Band Intercom ]

[ 1750HZ Call Tone ] - [ Program On Site ]

[ Emergency Alert ] - [ Reverse Frequency Function ]

[ 10-Group Scrambler ] - [ Multi-Scan ]

[ CTCSS/DCS ] - [ 10 Emergency Weather Channels ]

[ PC Programmable ] - [ Busy Channel Lock ]

[ VOX ] -[ Frequency And Channel Mode Shift ]

[ Time-Out-Timer ] - [ Wireless Radio Replication ]

[ Large LCD Display ] - [ Voice Prompt ]

[ Reminding Switch ] - [ Remote Kill/Revive ]

[ Power-on Password Protection(By PC Programmable)]

[ AM/FM Aviation Band Receiving ] - [ FM Radio ]

[ Charger-Base Charging ] - [ Wide/Narrow Bandwidth ]

[ Offset Frequency Direction Set ] - [ Reset ]

[ Squelch Level Adjustable ] - [ Dual-watch opertion ]

[ Offset Frequency Setting ] - [ Channel Scan And Add ]

[ Automatic Signaling Search ] - [ Multi Step Frequency ]

[ One Key Call Channel ] - [ Keypad Lock ]

[ Backlight Auto Off Time Selective ]- [ Jacklight]

[ DTMF Calling ] - [ DTMF ANI ]

[ DTMF Select Call (single call, group call, all call) ]

[ Repeater Forwarding Confirmation Function ]

[ Multi Display Of Channel No./Channel Frequency/Channel Name ]

[ H (High),M (Medium),L (Low) Output Power Selective ]

[ Multi-Band Transmitting & 50∽600MHz Receiving ]

[ Receive/Transmit Code Setting Separately ]

[ High Capacity Battery\Long Standby Time ]

[ Fast Copy One Channel(ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES) ]

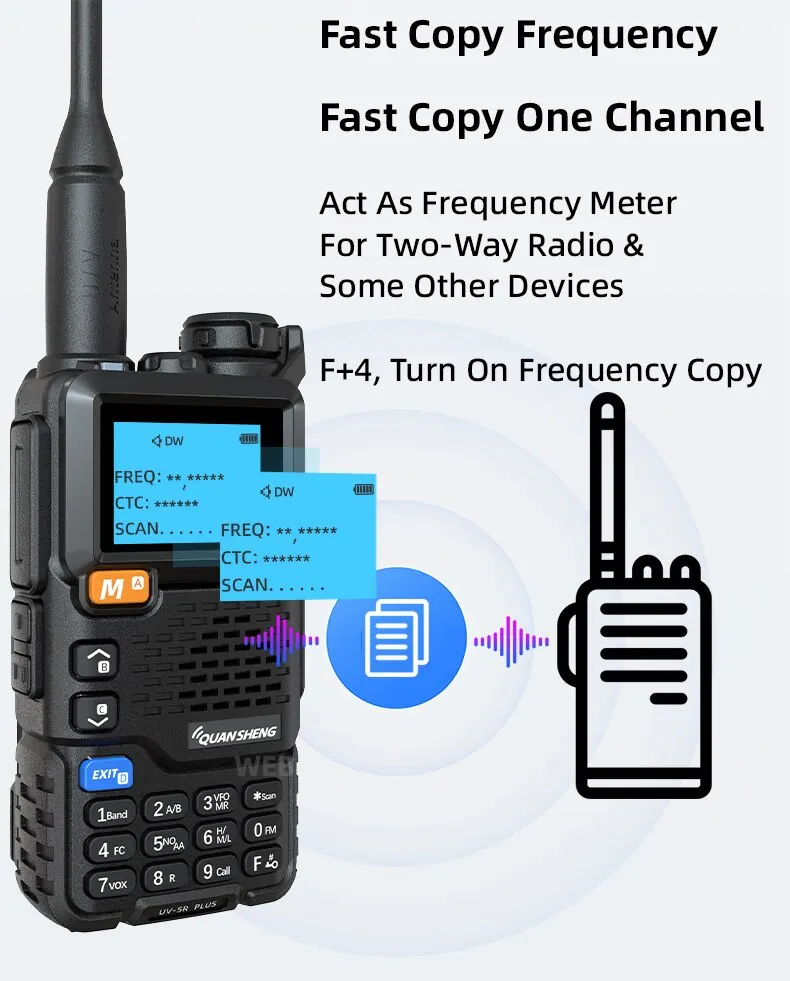

Fast Copy Frequency .


Fast Copy One Channel .


Act As Frequency Meter For Two-Way Radio & Some Other Devices .


F+4, Turn On Frequency Copy .

Large LCD Display.


The large screen is clear, intuitive,and good-looking,with a clean button layout and easy to understand operation.


AM/FM Aviation Band Receiving .


NOOA weather reception .


10 Emergency Weather Channels .


Bring more convenience to your outdoor travel .



10-Group Scrambler .Encrypted Communication .


Multiple security encryption , Protect your call privacy and communication security .


Power-on Password Protection (By PC Programmable).


Frog sound ending tone .


Frog Sound Tail Tone .


After the walkie talkie transmission is completed, the receiving console emits a "Frog sound " tail tone signal to indicate the end of the call .


DTMF.


Dual tone multi frequency signal , Simplefast and reliable transmission technology .



Many ways to scan .


Detect without knowing the frequency and ct/dcs used by the other party .



Cross-Band Receiving/Transmitting .


General Specifications:

Channel:200;

Stored FM Radio Channel Quantity:20;

NOAA Channel:10;

Frequency Stability:±1ppm;

Modulation Mode: FM: 11K / F3E(25KHz);

Dimension:115mmX60mmX37.5mm;

Weight:234g;

Kessys: 20 inches

Antenna Impedance:50 Oh?


RECEIVING:

Sensitivity:FM(12dB SINAD);

F1(50 ∽ 76):-121dBm

F2(108 ∽ 135.9975):-121dBm

F3(136 ∽ 173.9975):-123dBm

F4(174 ∽ 349.9975):-123dBm

F5(350 ∽ 399.9975):-123dBm

F6(400 ∽ 469.9975):-123dBm

F7(470 ∽ 599.9975):-121dBm

WFM(20dB SINAD):

AM(10dB S/N):F2(108

Audio Frequency:≥0.5W

Audio Distortion: < 10%



TRANSMITTING:

Output power: ≤ 5W;

Emissions current: ≤1.5A;

Maximum frequency Deviation: ≤ 5KHz (25 KHz), ≤ 2,5 KHz (12,5 KHz);

Distorzzjoni tal-modulazzjoni: <5%;

For the purposes of this Regulation, the following definitions shall apply:

Adjacent Channel Power:70dB(25KHz),60dB(12.5KHz);

Residual Modulation:40dB;
