Aerator Livewell Timer Switch Panel

About this item

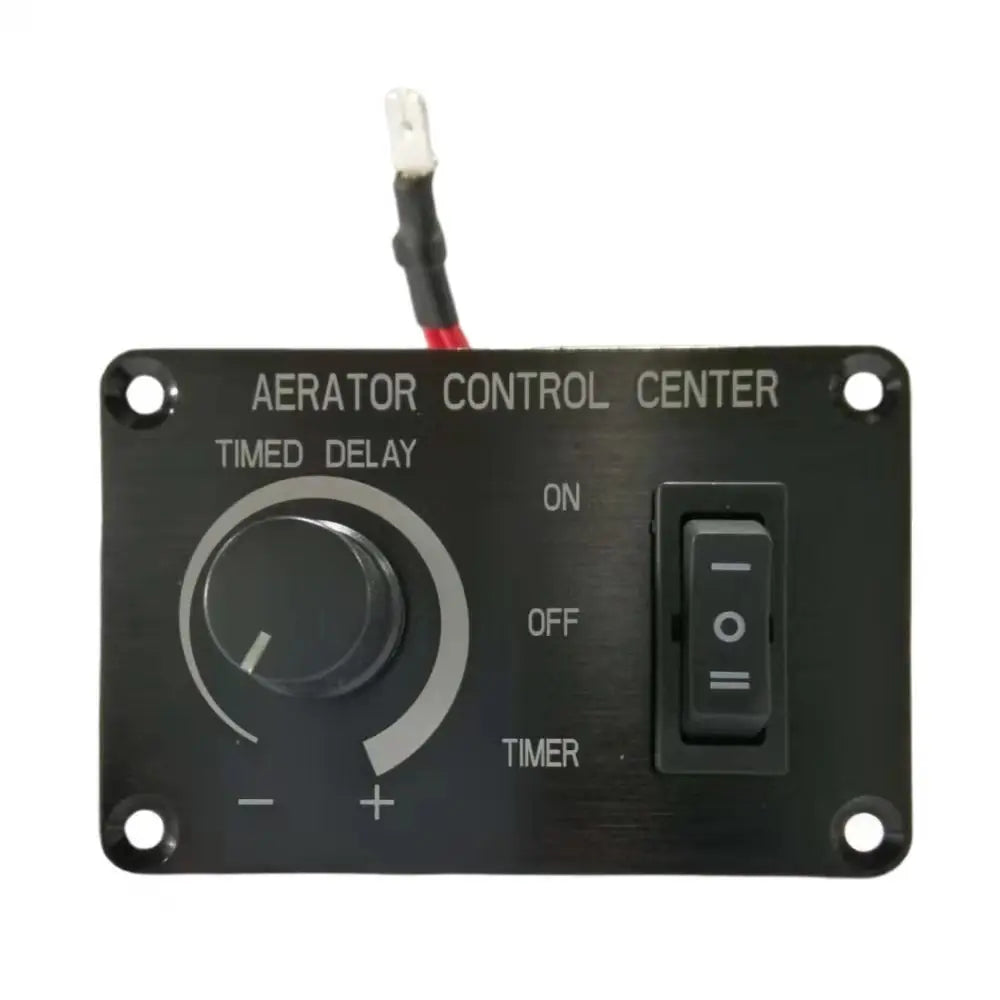

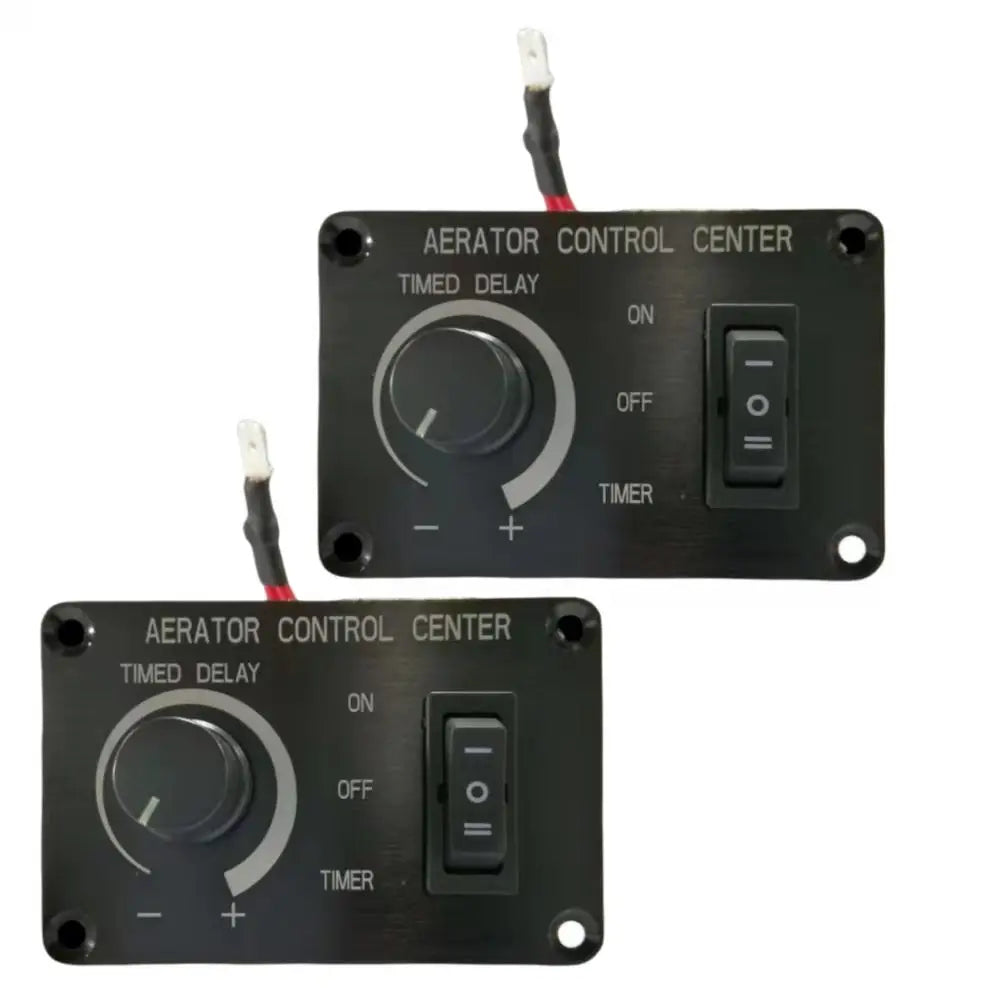

This Automatic Aerator Control Pro Timer Plus Adjustable Livewell Timer with Push ON/OFF Switch provides a source of oxygen-rich water to your tank through pump. This unit features soild-state timer ad can be turned on automatically or manually. This product is made of Black Aluminum Plate and is rated at 5 Amps and 12V DC.
The timer will run for 30 seconds then can be turned off from 10 seconds to approximately 5 minutes by adjusting the knob. Wiring Diagram is provided for your installation convenience.
ON Position: pump runs constantly, OFF Position: keeping pump off. Timer Switch: set the switch in this position to activate and use the "Timed Delayed" feature.
The timed delayed mode will allow the pump to run for 30 seconds then off for 10 seconds to 5 minutes depending on where the dial is set. MIN and MAX refer to the amount of time the pump is off between cycles. MIN will turn the pump off for approximately 10 seconds, while MAX will turn the pump off for approximately 5 minutes.
Product Dimension: 3-5/8" x 2-3/8" x 3" (92mmx60mmx70.3mm)(including wires). Cutout Size: 2-3/4" x 1-3/4" Item Number: 11113.
