SPECIFICATIONS

Brand Name: Hon&Guan

Power (W): 28W

Voltage (V): 110V/220V

Origin: Mainland China

Remote Control Function: No

Timing Function: No Timing

Type: Cooling Only

Max. Timing Limit: No Timing

Reverse Rotating Function: No

Wind Type: Natural Wind

Max. Power: 20-69W

Installation: Wall Mounted

Water-shortage Power-off Protection: No

Type: Bathroom Fan

Air supply mode: Other

Application: 10-15㎡

Certification: RoHS

Certification: CE

Certification: CCC

Material: plastic

Power Source: Electric

Rotation Way: Without Rotation

Technology: Other

Usage: Home

Controlling Mode: Wall Switch

Suspender Length: No Suspender

Rotary Vane Quantity: Without Vane

Size: <1050MM

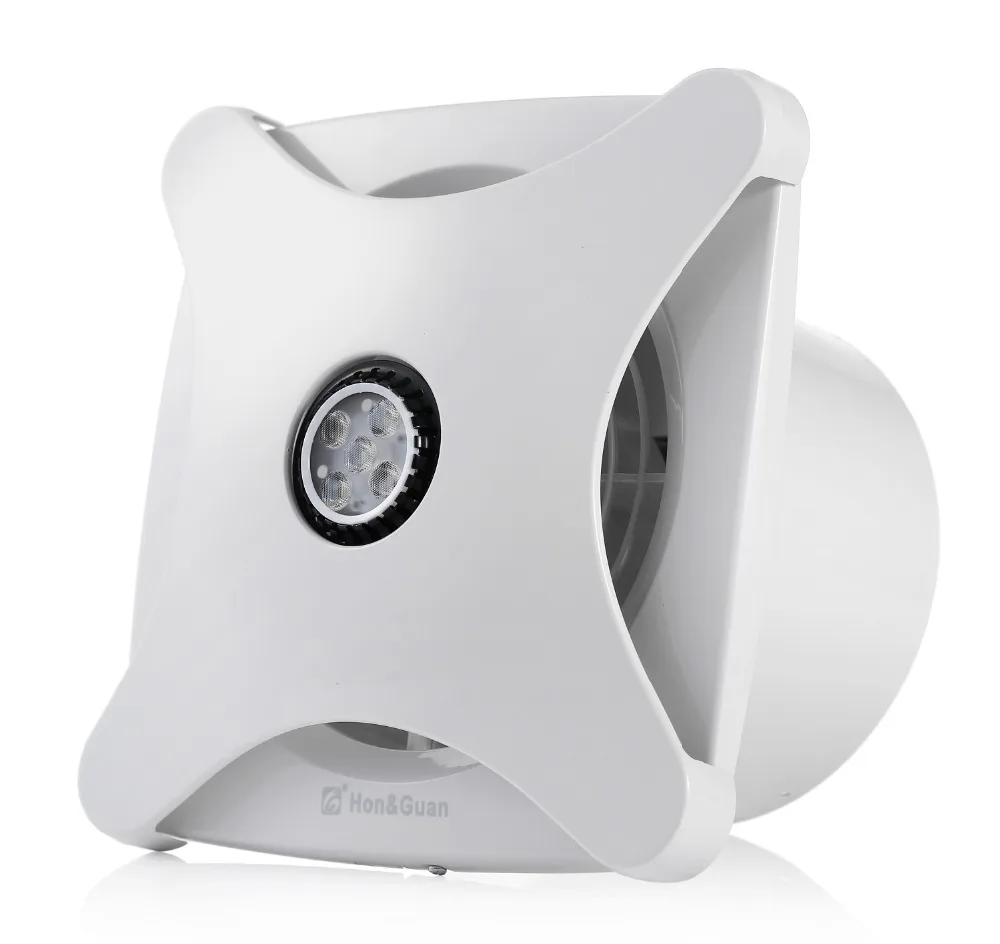

Model Number: HGA-150B

Fan Speed: Other

mini fan solar: suction fan



Protection Class IP34

150mm Outer Diameter, 2350RPM Rotation Speed, 197m³/h Air Volume.

Working temperature from -20℃ to 60℃(Low motor power has overheat protection

) , working humidity less than 80%.

With LED lights,white light,5W, 6400 lumens.

Suitable for 8 ~ 12㎡ room ( just need 5 minutes to complete a ventilation ) .

Low noise ventilation fan, application for bathroom, office, bedroom.



Ventilation fan parameter:

Voltage: AC110V/60Hz , 220/50Hz

Current:0.17Amps

Power:28W

Airflow:197m⊃3;/h

Air pressure:52Pa

Speed:2300RPM

Noise:≤40 dBA

Front panel dimension:205*205*41mm





Application:

Continuous or periodic exhaust ventilation area such as bathroom, showers, kitchens and other spaces.

Package Included:

1pc HGA 150B Exhaust Fan
