SPECIFICATIONS

Brand Name: jabriel

Frames Per Second: 30

Origin: Mainland China

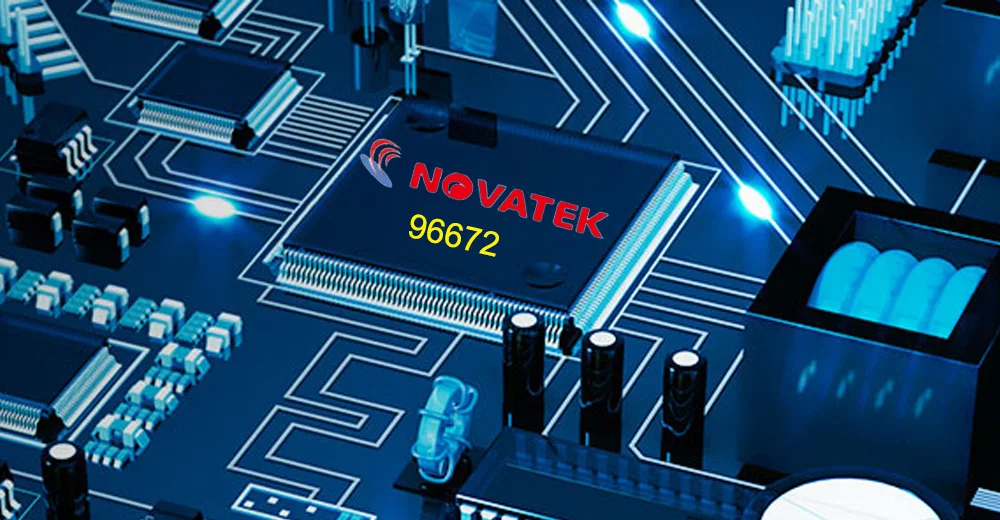

Chipset Manufacturer: Novatek

Assembly Mode: Hidden Type

View angle: 165°

Number Of Lenses: 1

Screen Ratio: none

Interface: AV-Out

Interface: Wi-Fi

Interface: Micro SD/TF

Video Code: H.264

Battery Life: Connect Fuse Box

Original Package: YES

Camera Resolution: 1920x1080

Special Features: G-Sensor

Special Features: waterproof

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: wifi function

Video Format: MOV

Video Format: MP4

Touch Screen: no

Item Type: Car DVR

GPS logger: none

Battery: None

Certification: none

Memory Card Required Reding Speed: Class 10

Imaging Sensor: Sony IMX323

OSD Language: Armenian

OSD Language: Belarusian

OSD Language: Chinese (Simplified)

OSD Language: Chinese (Traditional)

OSD Language: Danish

OSD Language: English

OSD Language: FRENCH

OSD Language: german

OSD Language: HEBREW

OSD Language: Italian

OSD Language: japanese

OSD Language: KOREAN

OSD Language: latin

OSD Language: Portuguese

OSD Language: Russian

OSD Language: Spanish

OSD Language: THAI

Pixels: 500Mega

Rear Camera: none

Max External Memory: 128G

CPU: Novatek

Special Features1: Wifi

Special Features2: HD 1080P

Special Features3: 24-Hour Parking monitoring

Work Voltage: 12V

Display: No

Suitable for models1: audi a1 a3 a4 a5 a6 a7 a8

Suitable for models2: audi q2 q3 q5 q7 q8

Suitable for models3: audi s1 s3 s4 s5 s6 s7 s8

Suitable for models4: audi rs3/rs4/rs5/rs6/rs7

Suitable for models5: audi tt

Suitable for models6: audi a4 b4 b5 b6 b7 b8 b9

Suitable for models7: audi a6 c5 c6 c7

Suitable for models8: audi a3 8v 8p

Suitable for models9: audi b4 b5 b6 b7 b8 b9

Suitable for models10: audi c5 c6 c7

Jabriel Auto Hidden Car Camera Dash Cam Camera Wifi 24-Hour Paking monitoring car recorder HD 1080P dvr Registrator Driving dash cam Rear View camera dual lens video recorder camera for audi a1, audi a3, audi a4, audi a5, audi a6, audi a7, audi a8, audi q2, audi q3, audi q5, audi q7, audi q8, audi rs3, audi rs4, audi rs5, audi rs6, audi rs7, audi tt, audi s3, audi s4, audi s5, audi s6, audi s7, audi s8, audi a4 b4 b5 b6 b7 b8 b9, audi a6 c5 c6 c7, audi a3 8v 8p.



Package Include:

1 x Car DVR

1 x Manual

1 x Power Cord



Please Contact customer service to send photos when you buy it



Please note: Because this product is dedicated, in order to avoid installation or other problems, please tell us which year and which model of your car, and be sure to take photos for the rear view mirror base and send it to us.

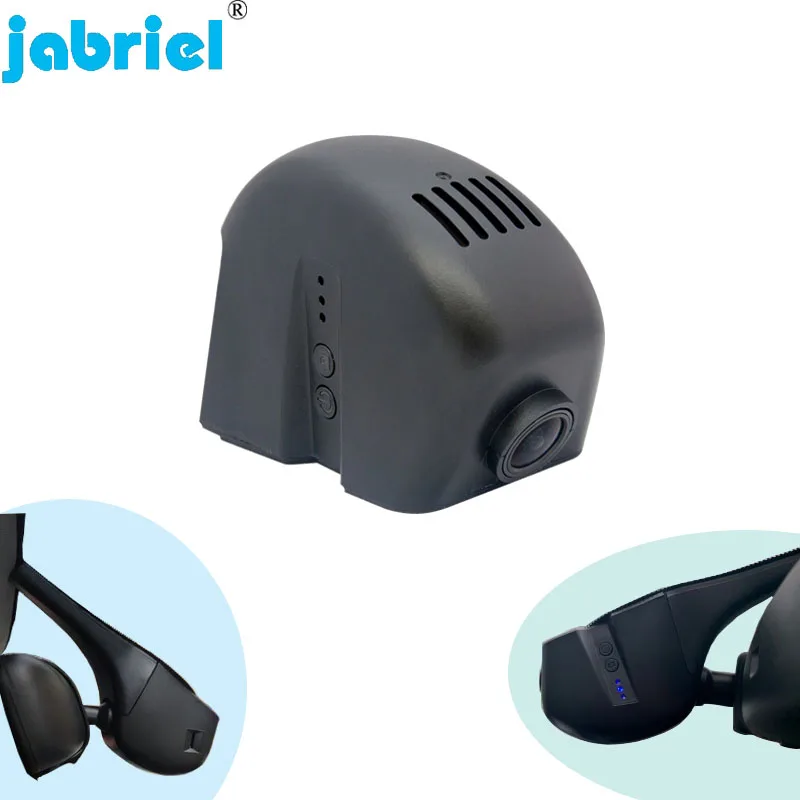

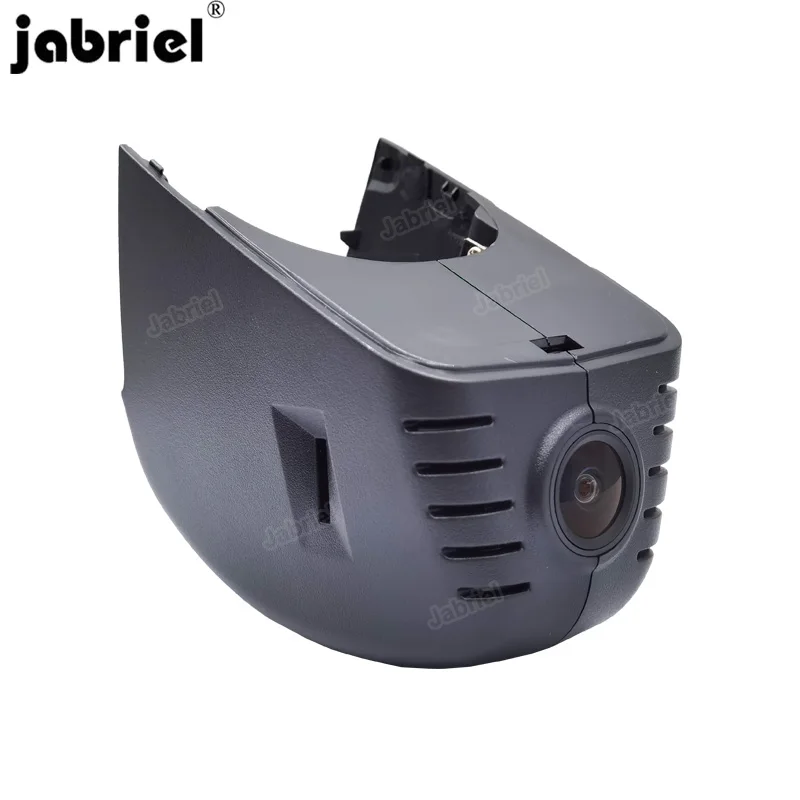

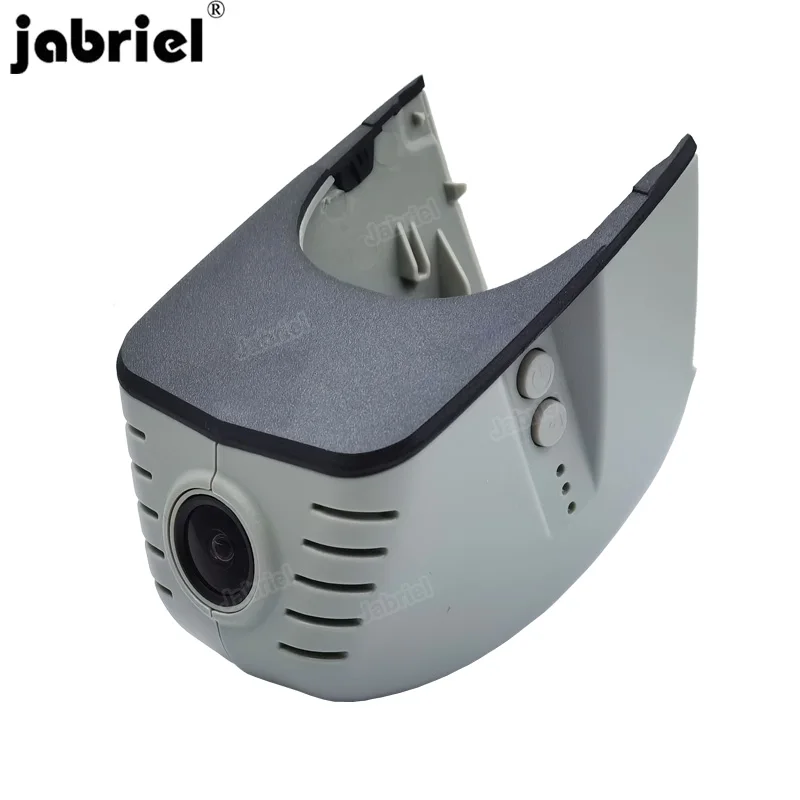

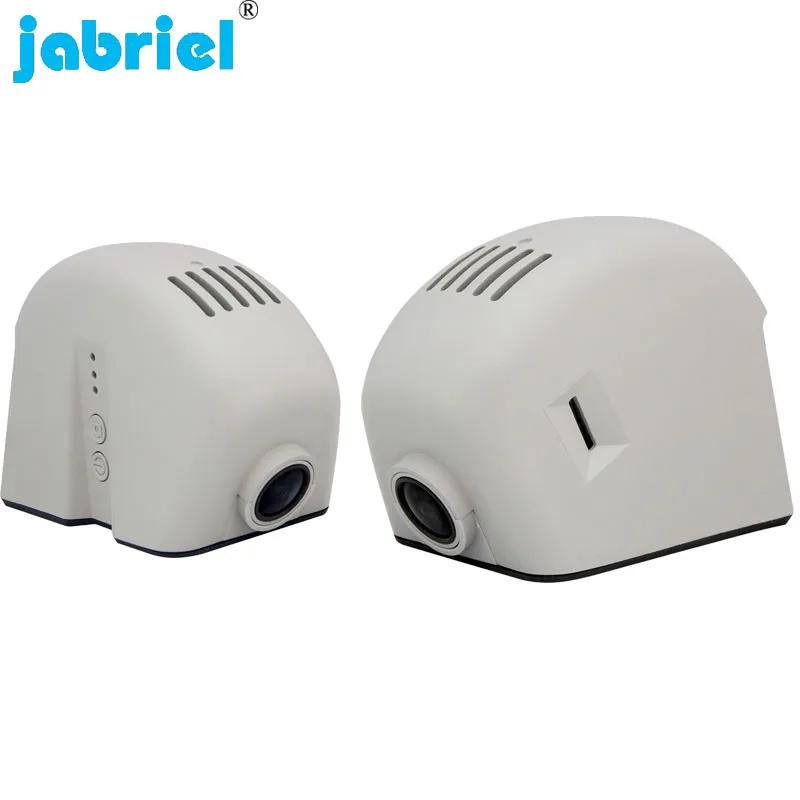

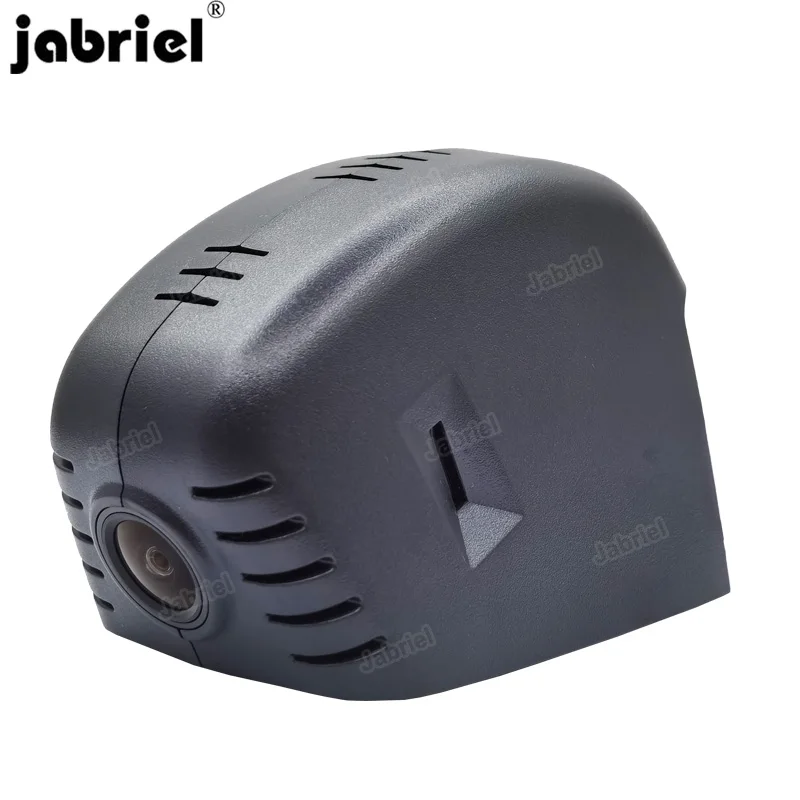

Hidden WIFI 1080P 24-Hour Paking monitoring Car DVR Dash Cam for Audi

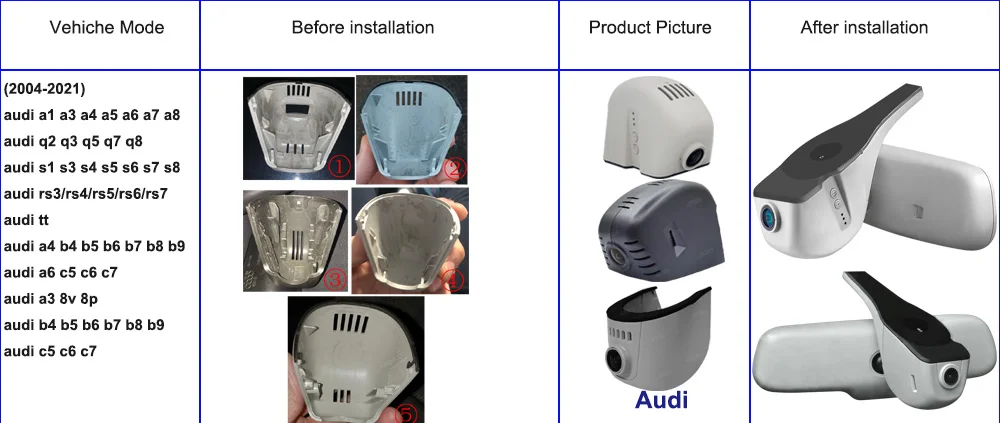

Mode 1 fit :for Audi A1 A3 A4 A5 A6 A7 A8 Q3 Q5 Q7 TT 2004-2012



Mode 2 fit : for Audi a1 a3 a4 a5 a6 a7 a8 q2 q3 q5 q7 q8 s1 s3 s4 s5 s6 s7 s8 rs3 rs4 rs5 rs7 tt (2013-2016)



Mode 3 fit : for Audi a1 a3 a4 a5 a6 a7 a8 q2 q3 q5 q7 q8 s1 s3 s4 s5 s6 s7 s8 rs3 rs4 rs5 rs7 tt (2017-2021)



128G·Smart Storage

Big, Regarding the overall improvement of storage,

Support 8-128GBKeep driving records longer.

Safety explosion protection

High and low temperature resistance,no built-in battery design, more

safer Automotive fuse power, built-in low voltage monitoring,

automatic shutdown, non-destructive battery.

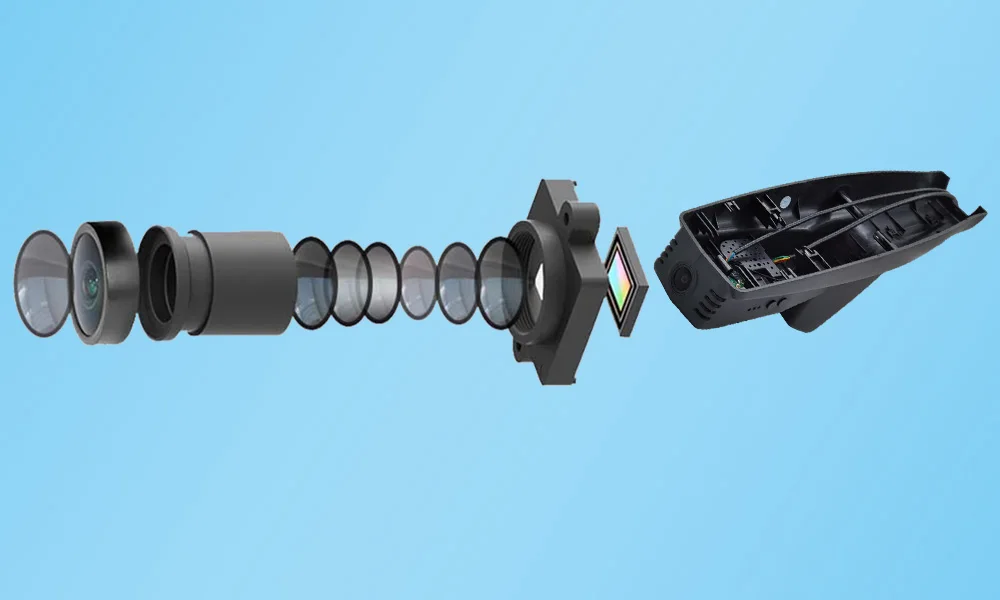

Six Glasss HD 1080P Lens --- Sony IMX323

6-layer full glass lens, F2.0 large aperture

Adopt 6-layer full-glass 1080P high-definition camera,

F2.0 large aperture is larger than F2.4, and better quality

in low light environment

Built-in WDR wide dynamic technology

WDR technology uses DSP circuit to expose the bright and dark parts with

the appropriate shutter speed, and the two images are processed by DSP,

so that the over-bright and over-dark parts can be seen clearly.

Gravity Sensing

When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking protection

is stored in the memory card to prevent loss of coverage.

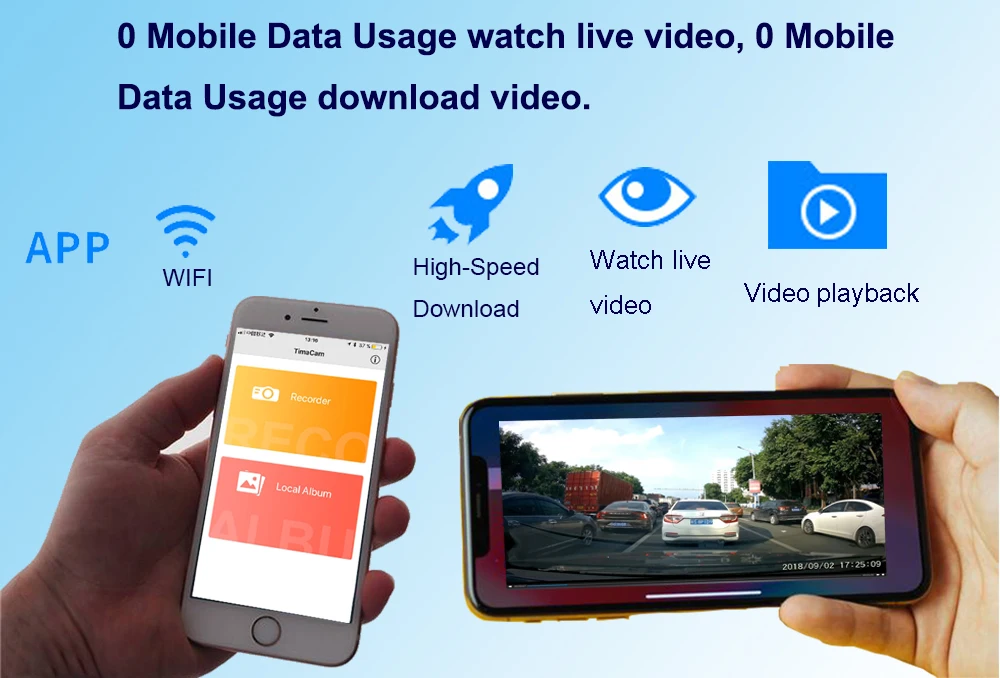

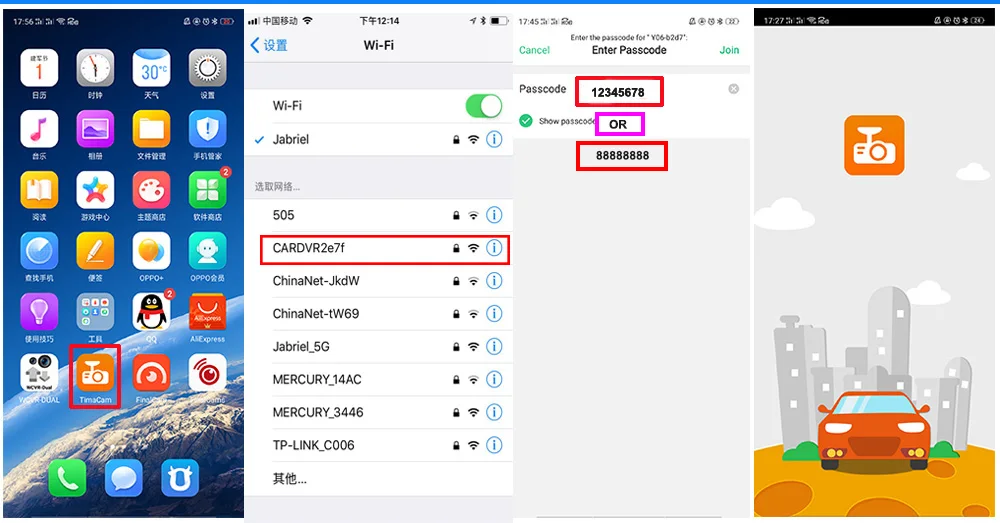

Link WIFI Control

Please download Timacam app from Apple Store or Google Play Store.

The Wifi name is : CARDVR**** or Y06-****

The password is : 12345678 or 88888888

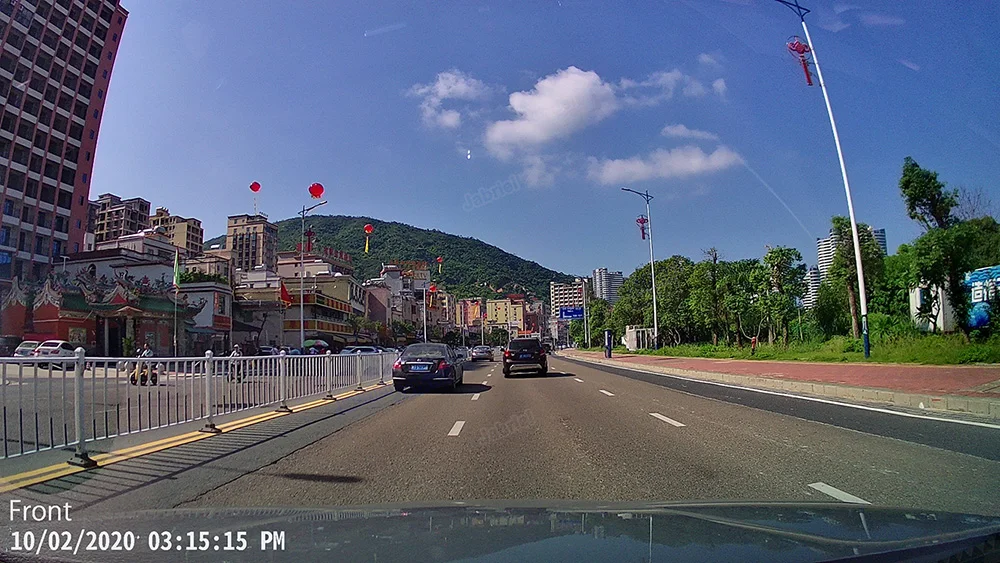

Real Video Display

The image is compressed and actually very clear

Cycle Recording without leaking seconds Video segmentation

recording, when the video is full, the recorder will automatically

delete the previously recorded video clips and record them in

a loop, so that you don't have to worry about frequent card changes.

24-hour Parking Monitoring

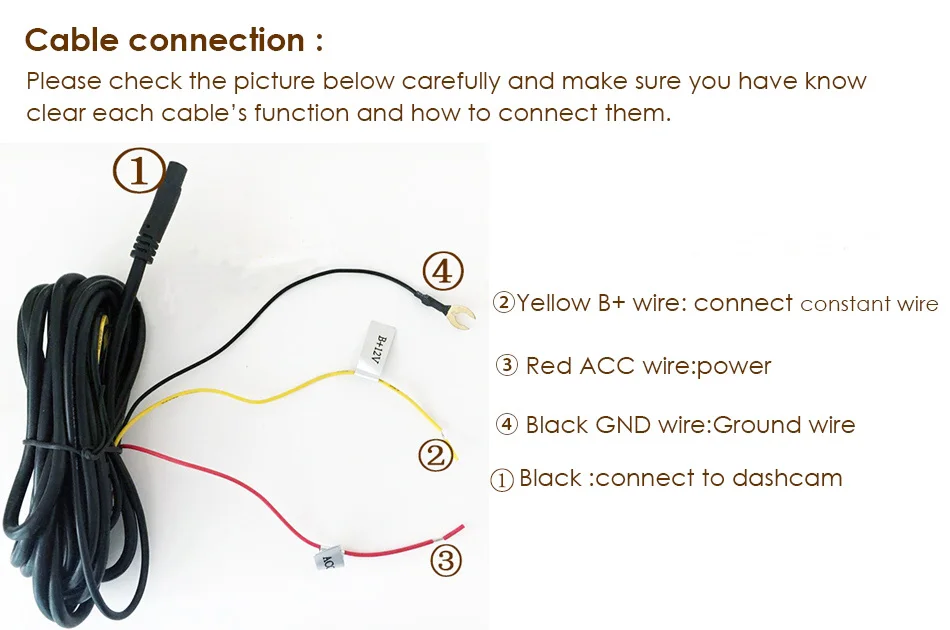

Cable Connection

Reference Installation Guide

1. Before installation

First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!

2. Installation

The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.

(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off.  it is ACC.

(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.

3. After installation

The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).
