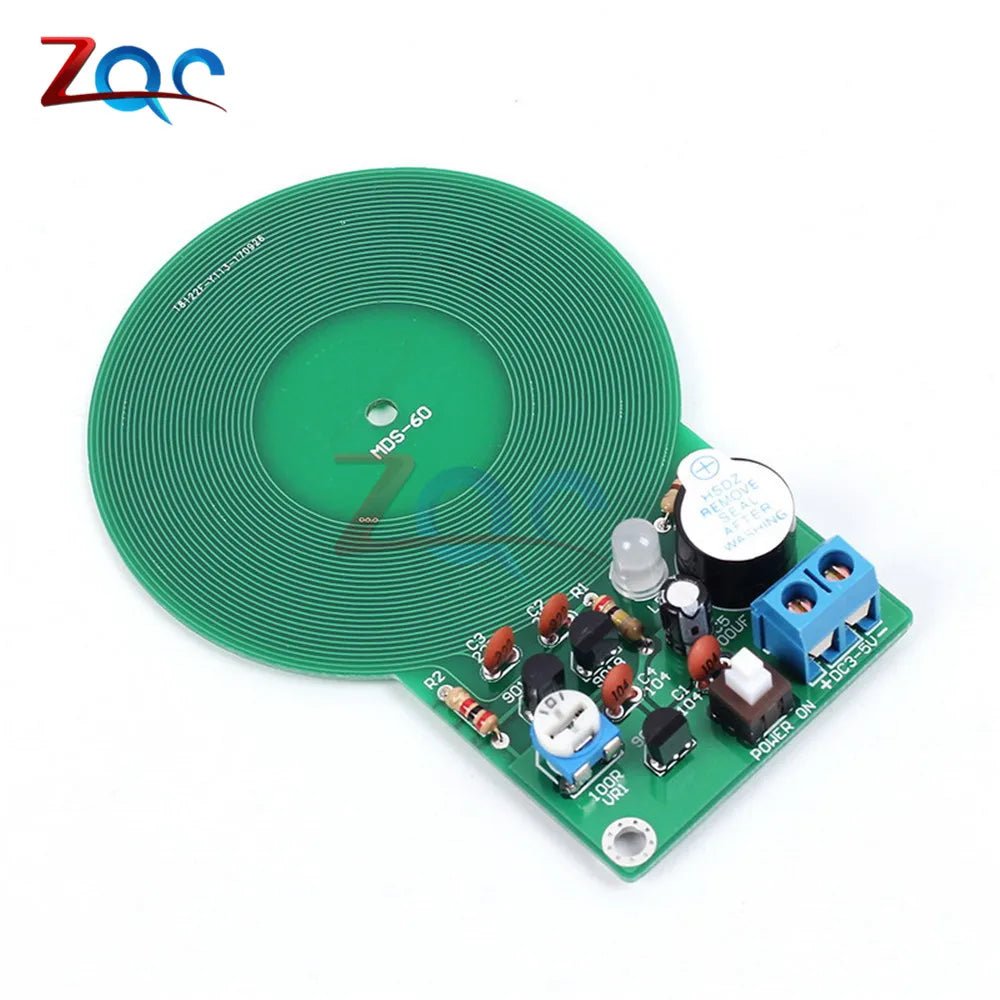

DIY Kit Metal Detector Kit Electronic Kit DC 3V-5V 60mm Non-contact Sensor Board Module Electronic Part Metal Detector DIY [MTL]

DIY Kit Metal Detector Kit Electronic Kit DC 3V-5V 60mm Non-contact Sensor Board Module Electronic Part Metal Detector DIY [MTL]

$11.99 AUD
$0.00 AUD $11.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

32849030794-Default Title

Default Title

SPECIFICATIONS

Brand Name: diymore

Origin: Mainland China

DIY Supplies: ELECTRICAL

Type: Non-contact Sensor Board

Certification: CE

Model Number: 3V-5V

Size: 60mm

Style: Metal Detector

Output Type: DC 3 -5V


Description:
Metal Detector is a high performance metal detector designed for security.

Sepcification:
Name: Metal Detector
Operating Voltage: DC 3-5V
Operating Current: 40mA
Standby Current: 5mA
Detection Distance: 60mm
Alarm mode: Sound/Light
Difficulty: Easy
PCB Size: 86*61mm

Application:
Game entertainment
Security check
Search for metal products
Car detection
Traffic Statistics
Elevator floor control
Production equipment position detection
Production equipment development and design
Electronic Product Design
Play equipment development
Metal proximity switch
Metal detection in human body

Schematic:


5.Component listing

NO.

Component Name

PCB Marker

Parameter

QTY

1

Metal Film Resistor

R3

470ohm

1

2

Metal Film Resistor

R2

2K

1

3

Metal Film Resistor

R1

200K

1

4

Potentiometer

VR1

100R

1

5

Ceramic Capacitor

C2,C3

0.022uf

2

6

Ceramic Capacitor

C1,C4

0.1uf

2

7

Electrolytic Capacitor

C5

100uf

1

8

Red LED

LED1

5mm

1

9

S9012

Q2.Q3

TO-92

2

10

S9018

Q1

TO-92

1

11

Power Switch

SW1

6*5mm

1

12

Buzzer

SP1

9*12mm

1

13

Power Socket

J1

KF301-2P

1

14

PCB


MDS-60

1

NOTE:Users can complete the installation by PCB silk screen and component listing
