SPECIFICATIONS

Storage Channel: 128

Brand Name: BAOFENG

Model Number: UV-82 5w/8W

Frequency Range: 136-174MHz & 400-520MHz

Walkie Talkie Type: Portable

Material: Plastic

Is_Display: Yes

Maximum Range: 5km-10km

Waterproof / Water-Resistant: No

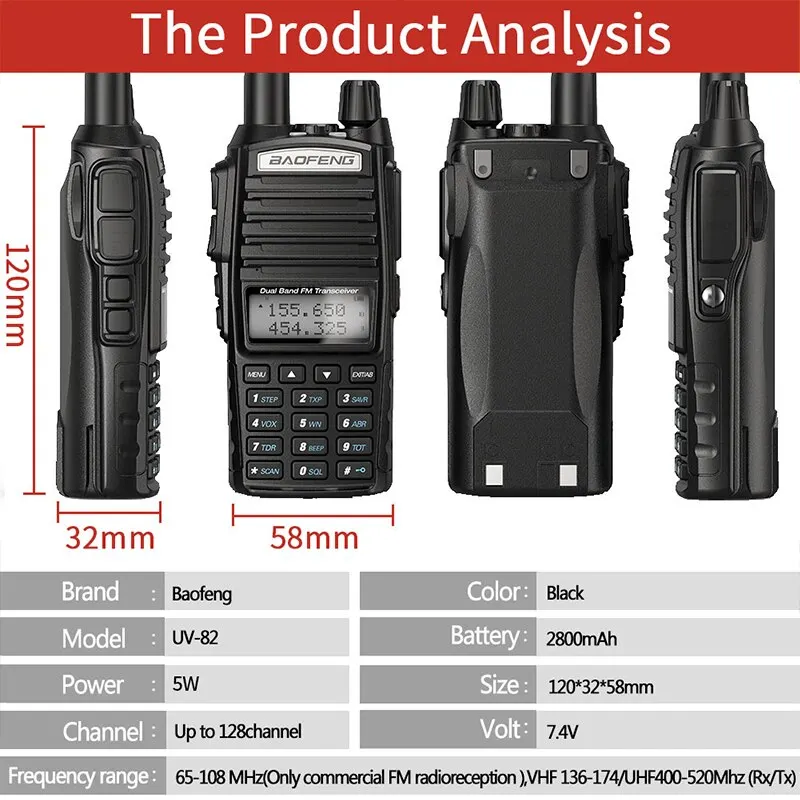

Dimensions: 130x60x35mm

Battery Capacity(mAh): 2800

Origin: Mainland China

Certification: CE

Certification: FCC

Output Power(w): 5w-10w

Choice: yes

👍Multiple frequency modulation methods

① Program Manually In VFO Mode:Press "VFO/MR"to switch into Frequency mode,Without being bound by the computer,you can input frequency by keyboard,select CTCSSand store it.

②Program by PC :You can use our programming soft to program your walkie-talkie with PC, easy to operate, suitable for novices, and provide technical guidance.Work with CHIRP!

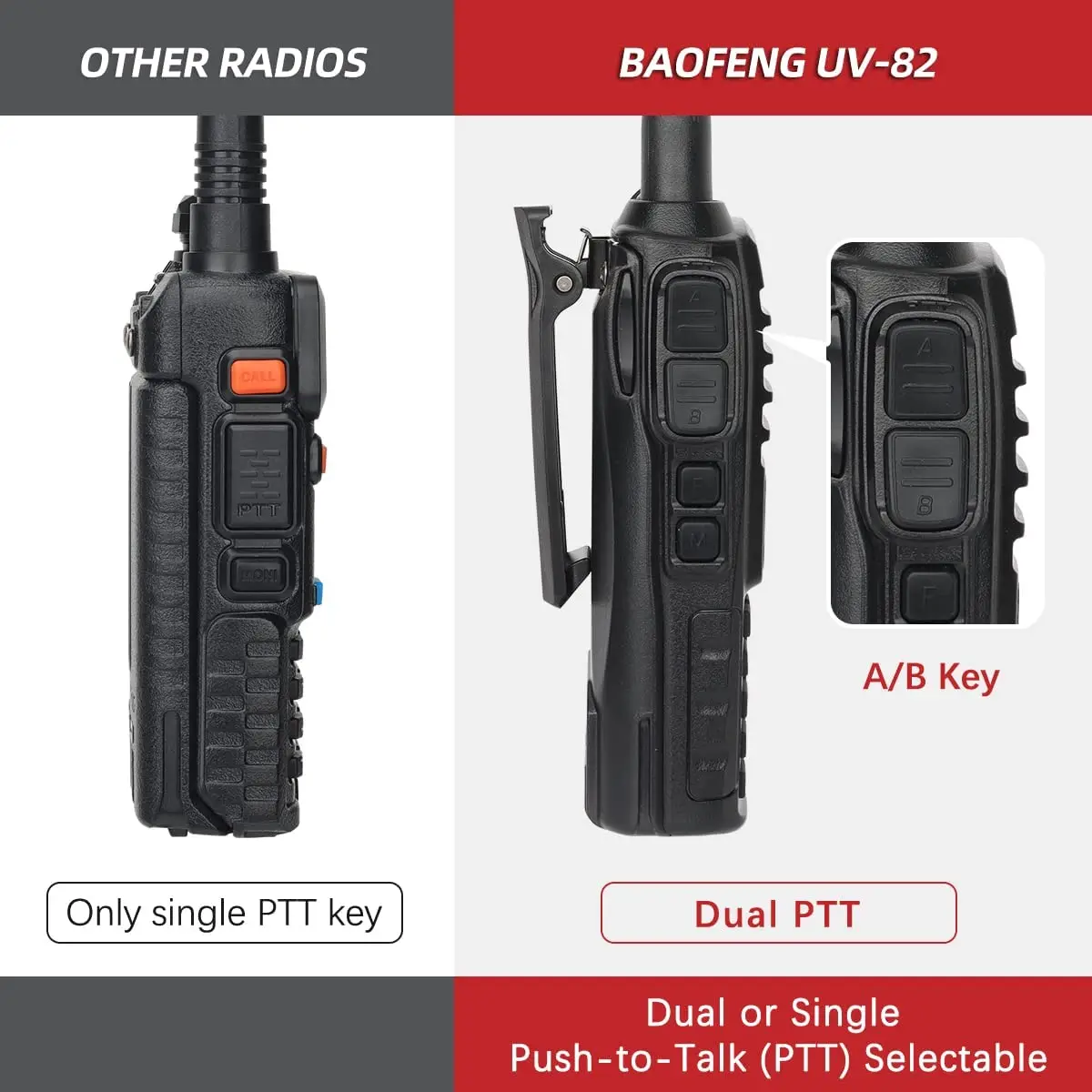

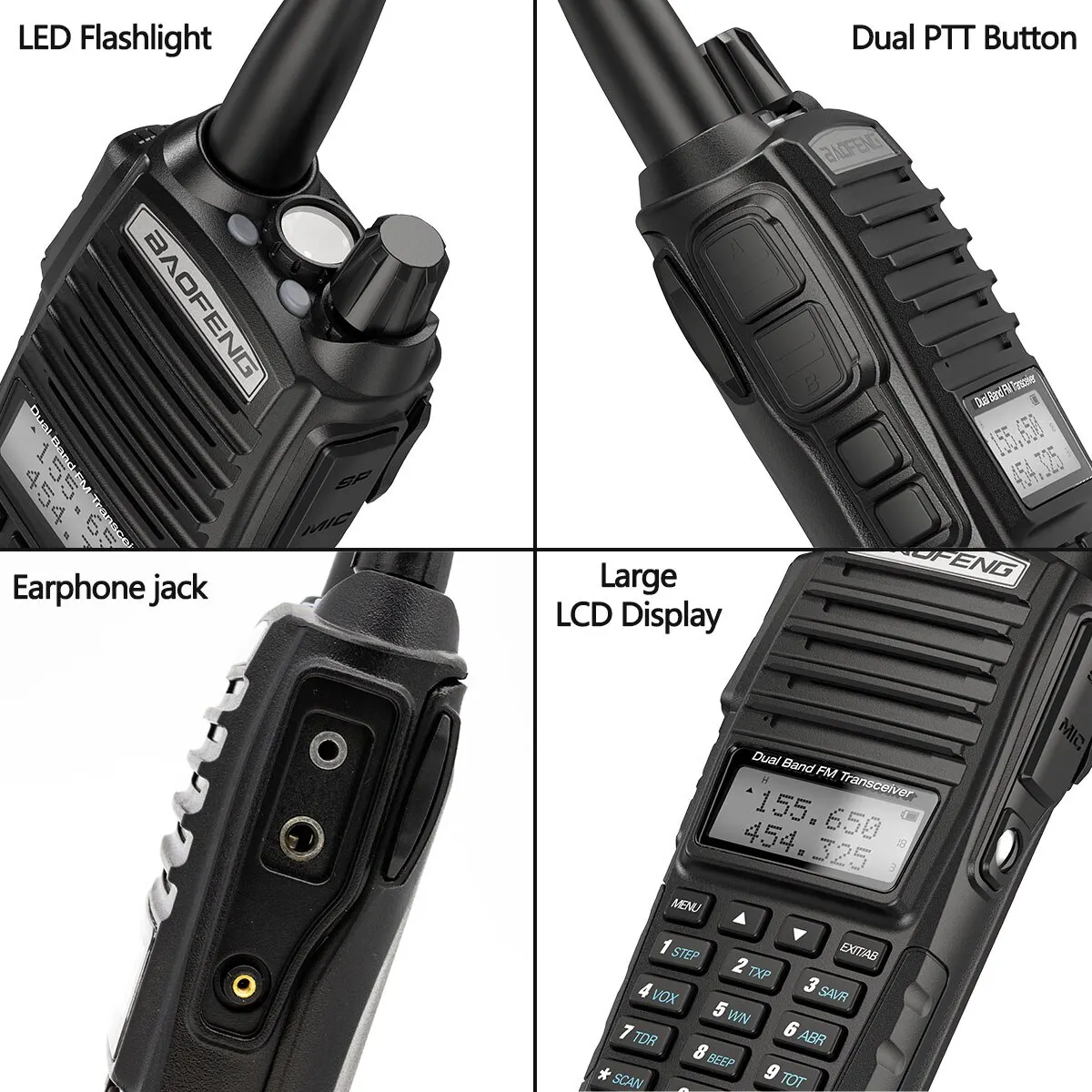

👍Unique Dual PTT:The Radio comes with a unique double PTT button design, provide clear sound quality,PTT switch is sturdy and durable.More convenient and portable.

👍 FM Radio &Super-Bright:FM radio allows you to enjoy your leisure time by listening to the FM radio , getting a relaxed mood during the long trip.Baofeng UV-5R radio can also provide light to keep you and your loved ones out of the dark.

👍Dual Standby:Dual Band, Dual Display, Dual Frequency,Dual Standby Help you communicate more freely and without barriers

👍 Perfect for Outdoor Adventures: With a lightweight and compact size, the weather solar radio easily fits in your backpack, and the included wrist strap ensures it won't get lost, ideal as a must survival kit for any outdoor adventure.

8W:

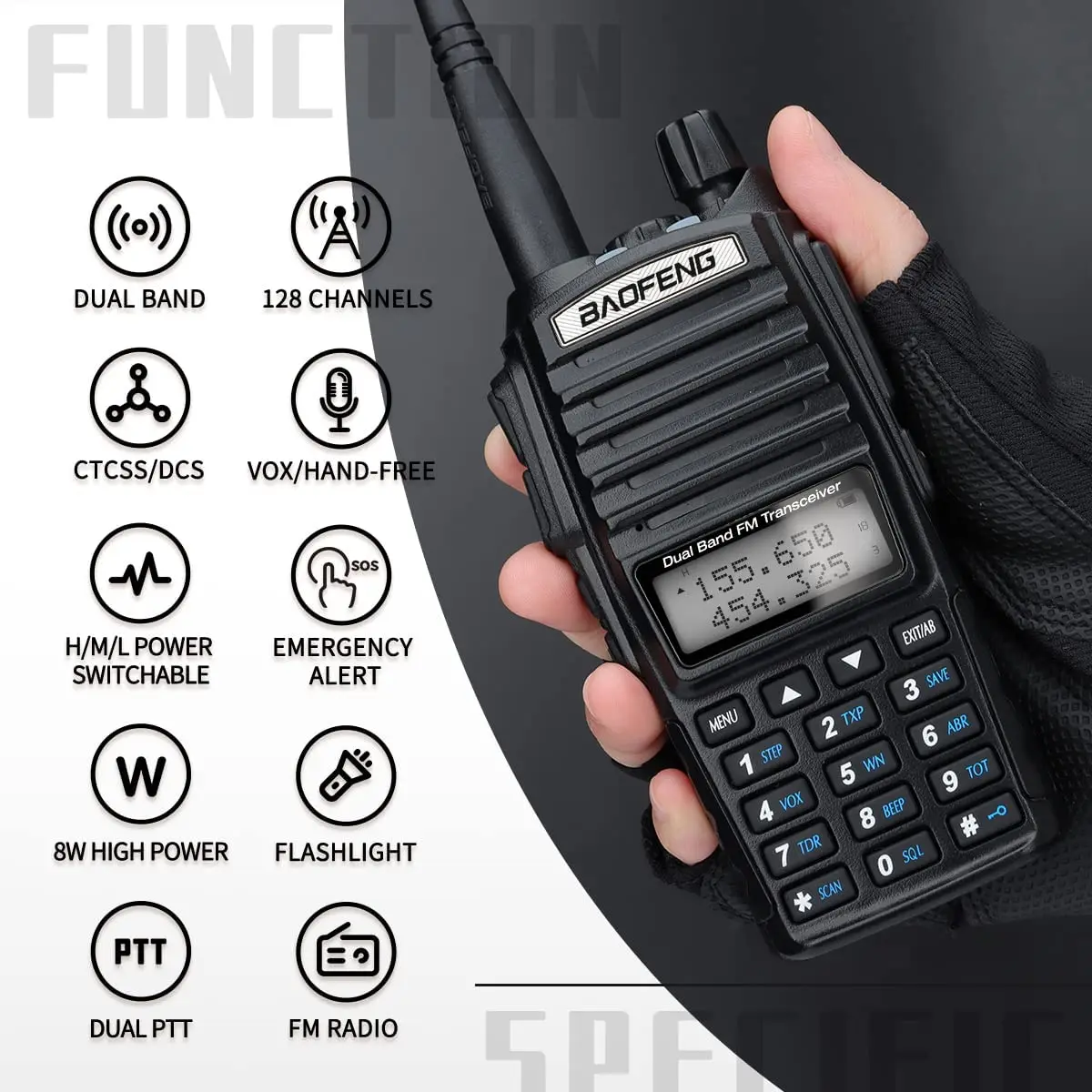

Main features

01)100%Brandnewandhighquality

02)Dual-bandhandheldtransceiverwithdisplayfunctionmenuonthedisplay "LCD"

03)FrequencyMode/Channelmode

04)DTMFencoded

05)Incorporates105codes"DCS"and50privacycodes"CTCSS"programmable,

CTCSS & DCSscanningandCTCSS & DCSdirection input

06)VOXFunction

07)BatterySaving

08)Wide/NarrowBandSelection

09)Time-outTimer(TOT)

10)ATUOKeypadLock

11)BusyChannelLockFunction

12)PrioryScanningFunction

13)LowBatteryWarning

14)LEDFlashlight

15)High/LowRFPowerSwitchable

16)PCprogrammable

17)BusyChannelLock(BCLO)

18)Built-inkeylock

19)High-capacitybattery:lowself-discharge,nomemoryeffect,highcyclelife,

General FrequencyRange 136-174MHZand400-520MHZ(TX/RX) Chinese. 128 FrequencyStability ±2.5ppm Antenna HighgainDualBandantenna AntennaImpedance 50Ω OperatingVoltage DC7.4V <2800MAH MAX Modeofoperation Simpleorsemi-Duplex Antenna: SMA-Female Earpiece/mictype: K-Plugtype Dimension(WxHxD) 132*60*35mm (not included antenna) Weight 238g(includingbattery,antenna) Power adapter Input: AC100-240V, 50-60Hz; Output: DC10V/500mA; Plug Type: US/EU/UK/AU Transmitter Modulation Fashion 16K ΦF3E/11K ΦF3E Maximumdeviation 5kHz(Wide)/ 2.5kHz(Narrow) SpuriousRadiation 7μw AdjacentCh.power For the purposes of this Regulation, the following definitions shall apply: Pre-empasics 6dB Current ≤ 1.6A(5W) CTCSS/DCSdeviation 0.5±0.1kHz(Wide)/0.3±0.1kHz(Narrow) Intermediationsensitivity 8-12mv Intermediationdistortion ≤ 10%

5W:

Package:

1 X Portable radio

1 X Antenna

1 X Li-ion battery

1 x Li-Ion Charger

1 x headset

1 X Belt clip

1 X The Sling

1 X User's manual

1 x headset



NOTICE:

*The warehouse sends EU Plug by default: Russia, Spain, Germany, Korea, France, Netherlands, Denmark, Finland, Norway, Poland, Portugal, Austria, Belgium, Hungary, Sweden, India, Italy, Ukraine, Chile, Turkey, etc.

*User Manual: The user manual we provide is English version, including paper version and electronic version, if you need electronic version, please contact us, thanks.

*How to communicate with different walkie talkies: No matter what brand of walkietalkie you use, as long as the frequency is the same, you can communicate.

*Long-Range communication :Walkie talkies long range can reach 3-10km in open areas such as rural areas, suburbs or seaside, etc. where there is no shelter. If in cities or towns, walkie talkies can reach 2-5km in most cases. The actual distance Depends on the obstruction of the current environment.
