SPECIFICATIONS

Brand Name: ACCESTING

Origin: Mainland China

Manufacturer Part Number: 00

Number Of Cylinders: 3

Placement on Vehicle: 000

Material Type: good quality

Item Length: 85mm

Special Features: tachometer

Item Width: 85mm

Country/Region of Manufacture: China

Item Height: 85mm

Interchange Part Number: tacometro digital

Item Weight: 0.5kg

Range: 8kRMP

Working Voltage: 12V 24V

Feature 1: tacometro digital

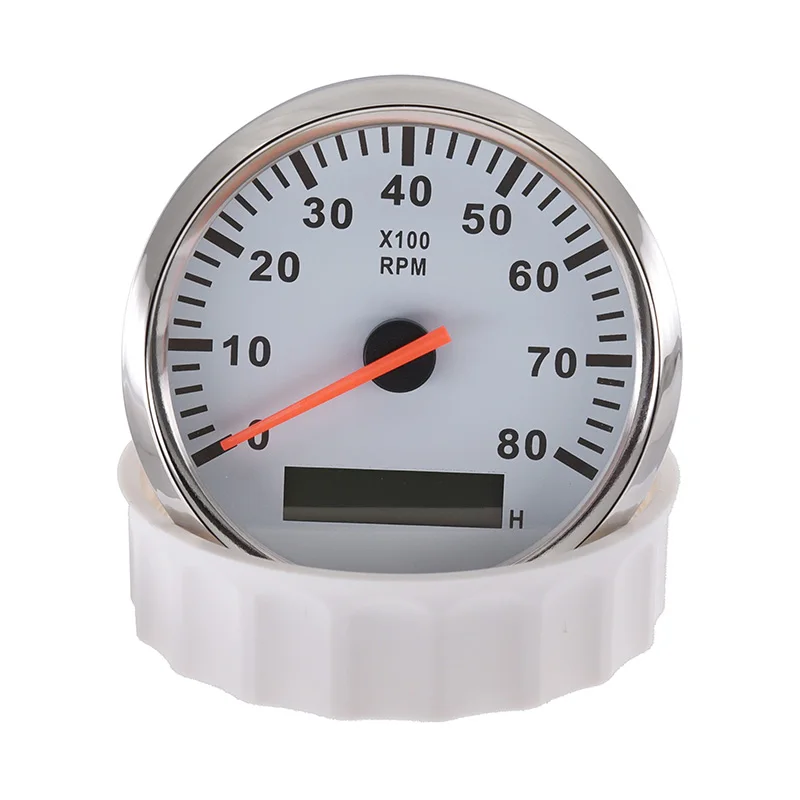

Product: Motor Diesel Tachometer

Motorcycle tachometer: 3000-8000 RPM

Car Gauge Tool: For Marine Boat

Tachometer For Motorcycle: Hour Meter Tachometer

Tachometer Diesel: Rpm Meter Motorcycle

Digital Motorcycle Tachometer: Electronic Tachometer

Motorcycle Tachometer Universal: Tachometer Digital For Car

Tachometer Universal Motorcycle: Tachometer For Bicycle

Specifications

Name: Tachometer

Materials: stainless steel+nickel-plated plastic

Operating Current: ≤100MA

Adjustable speed ratio: 1-300

Size: 92x50mm

Range: 0 ~ 200km / h

Voltage: 12V / 24V

Backlight: Red.

Installation diameter: 85mm or 52mm

Tacho sensorModel:M18*1.5 Tacho Sensor    M16*1.5 Tacho Sensor

Indicating Range:

0-8000RPM[85MM Diameter]

0-3000RPM[85MM Diameter]

0-4000RPM[85MM Diameter]

0-6000RPM[85MM Diameter]

0-9990RPM [52MM  Diameter]

Features

1.Convenient Installation by multi-pliug socket connecting way;.

2.Excellent anti-fogging function.

3.Protection grade is IP67, the whole body is completely waterproof.

4.Pluse Signal from tacho sensor, engine, alternator, ignition coil, crankshaft sensor, etc.

5.Opration Mode: LCD Display, stepper motor.

6.High Precision.

7.Suitable for all kinds of vehicle modification, the use of stepper motor drive pointer, accurate display engine RPM, and with the LCD display clear display hour, with instructions of high precision, repeatability and versatility, reliability and stability, drive And control is relatively simple and so on.

Install Instructions:

• 1.Before installation , firstly ,to open a hole (Dia:85~87mm) of the panel, make sure there is a space with (70mm backyard of panel) as well

• 2.Put the gauge in the hole.

• 3.Mount the gauge in hole, twist the back cover on after adjustment.

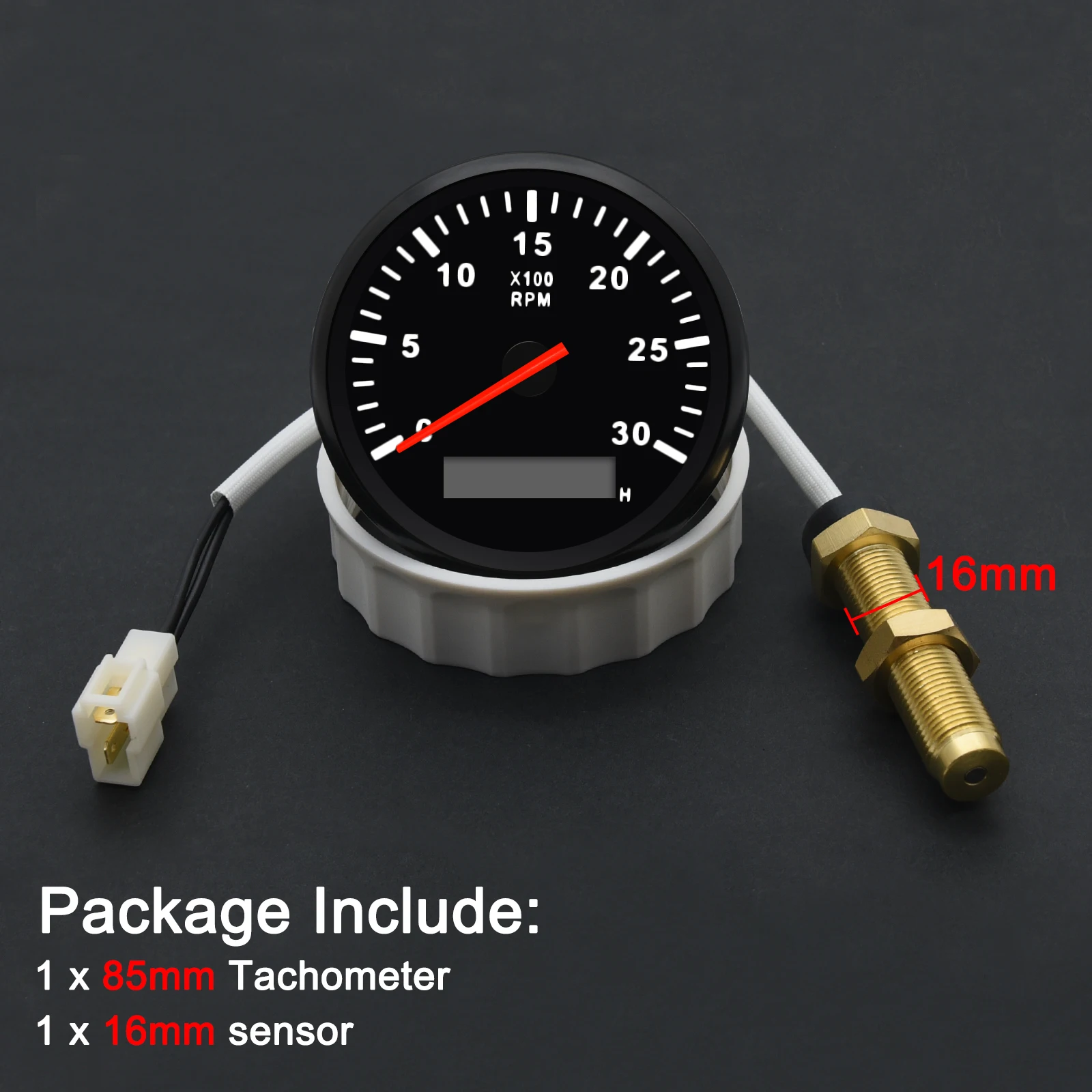

Package Include

1 x Boat Tachometer

1 x Installation

Notes:

Due to the manual measurement, there might be some error.

Sensor and the gauge need to be purchased separately.
