608ZZ Bearing 8x22x7 mm ( 10 PCS ) ABEC-5 Skate Stroller Miniature 608 ZZ Ball Bearings 608Z 608 2Z Bearing [HOM]

608ZZ Bearing 8x22x7 mm ( 10 PCS ) ABEC-5 Skate Stroller Miniature 608 ZZ Ball Bearings 608Z 608 2Z Bearing [HOM]

Regular price $30.99 AUD
Regular price $0.00 AUD Sale price $30.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:549643998-CHINA

Ships From

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Structure: Deep Groove Ball

Coatings: 52100 Chrome Steel

Material: STEEL

Torque Capacity: 8*22*7 mm

Surface Roughness: Ra 0.05

Model Number: 608ZZ ABEC-5 8x22x7 mm

Certification: RoHS

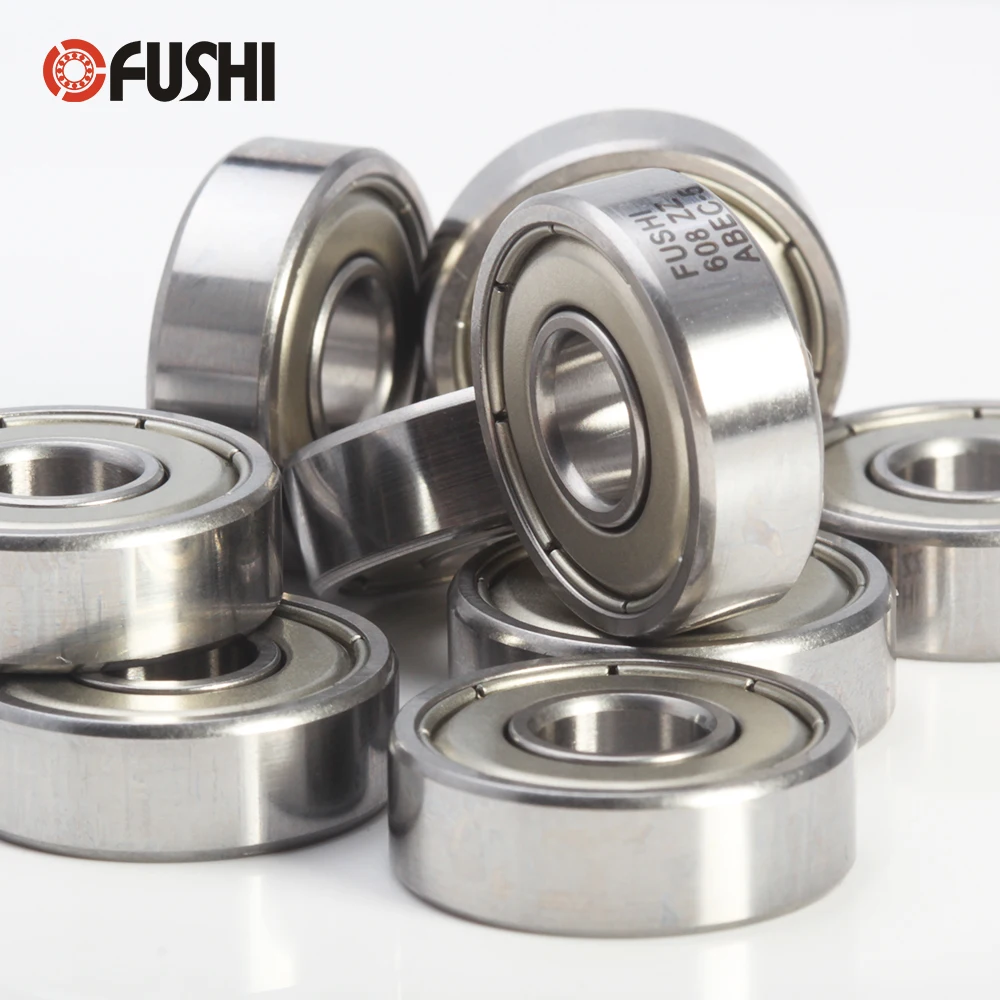

608 ZZ Ball bearings (10 pieces)

By FUSHI Official Store (Handle By Aliexpress)

Miniature Bearing Features

Miniature Bearings can sustain some axial load in either direction as well as radial loads,
And the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration.

Several different cage designs are available with different characteristics and the choice depends upon the individual application.













TECHNICAL SPECS (metric):

Bearing type: Shield
Bore diameter: 8.000 mm
Outer diameter: 22.000 mm
Width (B): 7.000 mm
Radius (min) (rs): 0.30 mm
Dynamic load rating (Cr): 2,799 N
Static load rating (Cor): 1,103 N
Max speed (Grease): 34,000 rpm
Max speed (Oil): 40,000 rpm
Max. shaft shoulder dia, inner (Ui): 10.5 mm
Min. housing shoulder dia, outer (Uo): 19.03 mm
Ball quantity: 7
Ball diameter (Dw): 3.969 mm
Weight (g): 12.80 grams
Precision: ABEC-5
Standard clearance: C0/(K25)
Material: 52100 chrome steel

This Bearing Structure

Standard Type: A ball bearing is composed of an outer and inner ring, balls, seal and a retainer.
Open type will no seal,
Flanged type with flange side.

This Bearing Cover

Compared to the open type, the shielded and sealed bearing types provide better protection from contamination and grease leakage.
They are selected based on the application type and environment.

This is ZZ double shields.

This Bearing Lubrication

One of the most important elements required
for the effective function of bearing arrangements is correct lubrication.

The lubricant separates the metallic bearing
surfaces and thereby reduces friction, preserves the steel parts and acts as an additional barrier against the entry of contaminations or impurities into the bearings.

This Bearing Cage

Retainers keep the balls separated and equally spaced.
Retainer types are set based on the bearing size but can be selected based on the required performance.

This is made of Nylon PA66 Cage.

This Bearing Material

The most common material used to produce the load carrying components in roller bearings is 52100 chrome steel (bearing steel).

These components are the bearings inner and outer rings, balls and rollers.
The chemical composition of this steel has high carbon and about 1.5% chromium content.
Using controlled processing and heat-treating methods the finished bearing components have high strength to resist cracking and a hard surface to resist subsurface rolling contact fatigue.
The typical surface hardness for bearing components made from this material ranges from 60- 64 on the Rockwell hardness C scale (Rc).

This Bearing Balls

Due to this usually very small contacting area ball
bearings have less frictional resistance and are
more suitable in high speed applications.

This is made of 52100 chrome stee

This Bearing Clearance

The term “clearance” is briefly described as the distance that bearing components may move relative to each other at physical extremes.

CN (C0) “normal” clearance
This clearance group is defined as the standard.
Thus CN is not marked on the bearings. Historically the standard clearance was designated as “C0“.

C2 clearance range smaller than CN
C3 clearance range larger than CN

This Bearing Grade

Executive standard:
GB/T 307.1-2005
Rolling bearings Radial bearings Tolerance
