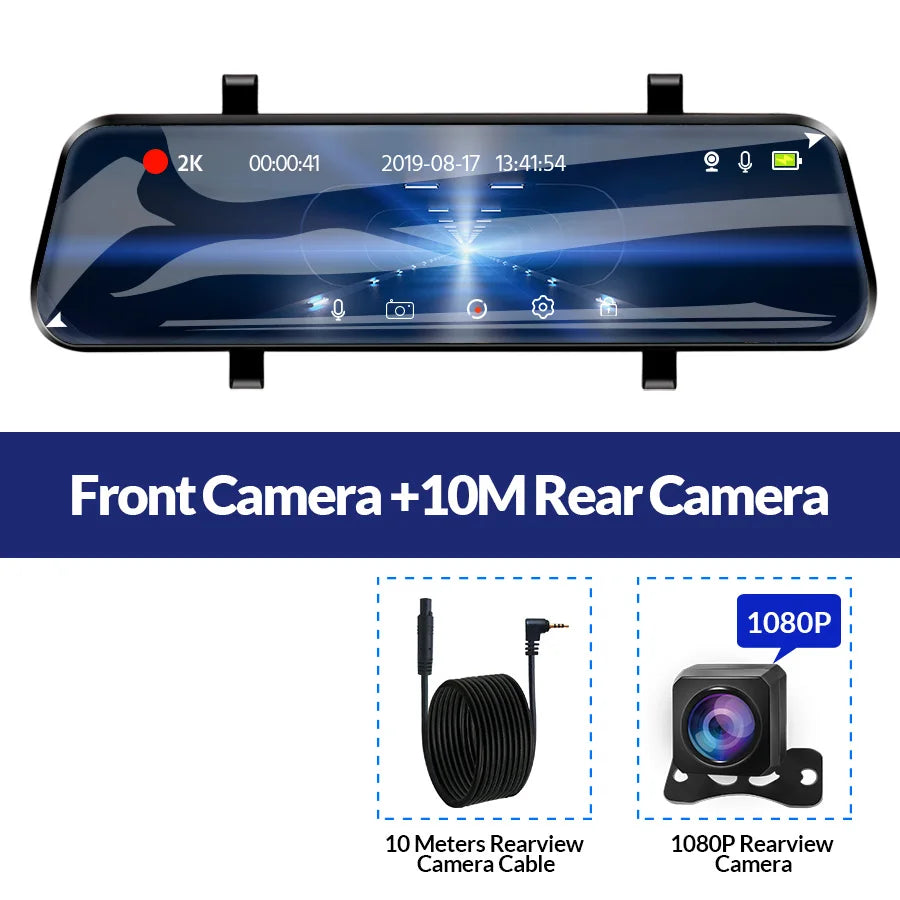

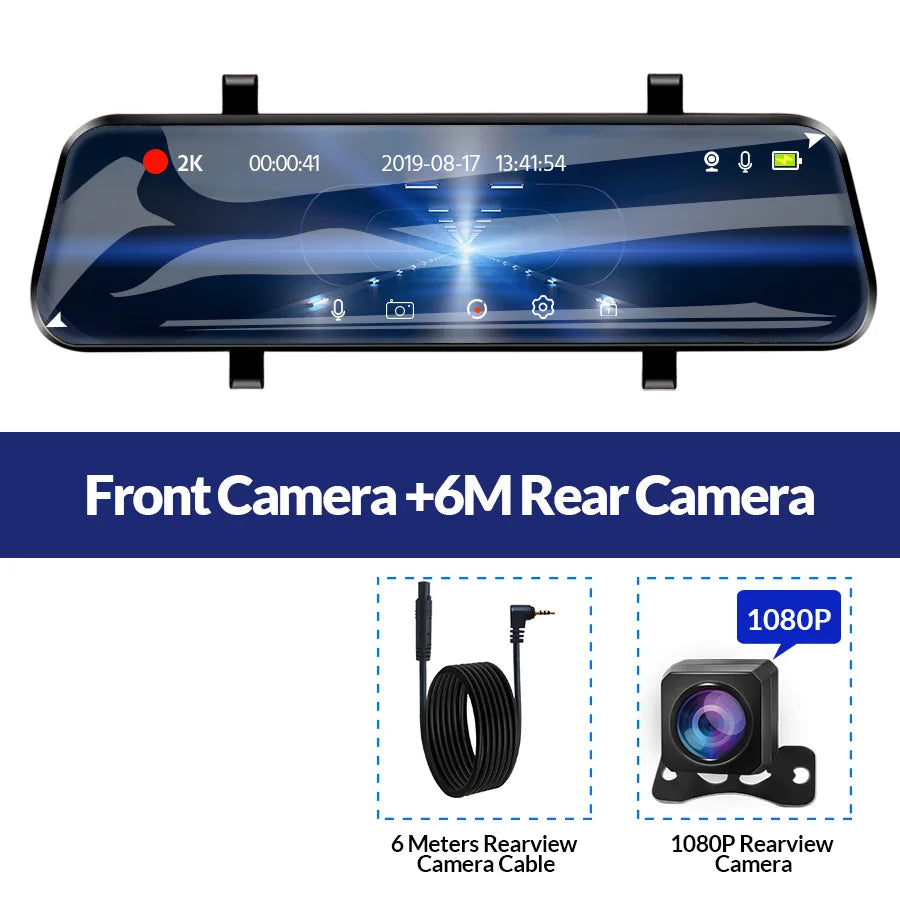

E-ACE A37 Car Dvr With Wifi 10 Inch Stream Media Mirror Dash Camera 2.5K 1440P Car Camera Night Vision Video Recorder Dual Lens Dashcam, Support GPS

Features And Specifications
➤Installation Type:Portable Recorder, suitable for all vehicles
➤Screen(Display) Size:10.0 Inch Touch IPS Screen
➤Chipset(Processor/CPU):Huawei Hisilicon
➤Camera Sensor:Front 4MP + Rear 2MP
➤Camera Lens:Front   Rear; 6 Glass   4 Glass; 170 Degree Angle   140 Degree Angle; F2.0 Aperture   F2.2 Aperture
➤Video Resolution: Front: 2560*1440P@30FPS; Rear: 1920*1080P@30FPS
➤Photo Resolution:12M
➤Video Code:.H.264
➤Battery:Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
➤OSD Languages:English, Russian, Chinses, Japanese, Korean,etc..... (If you want other languages,tell us,we will help you add it)
➤Basic Features:G-Sensor, Cycle Recording, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
➤Memory Card:Micro SD Card, class 10 and 16GB to 128GB (Not included)
➤Rear Camera Upgrade:Support max 10 meters cable Rear Camera
➤Add Features:Night Vision, GPS tracking, 2560*1440P front Camera With 1080P Rear Camera

Packing List
➤1 x Packaging box
➤1 x DVR
➤1 x Power charger
➤1 x User manual
➤1 x 1080P Night Vision Rearview Camera With 6/10 Meters Cable(Optional)
➤1 x Buck Line For 24H Parking Monitoring(Optional)
➤1 x Real Class 10 High Speed TF Card(Optional)

➤About 24h Monitoring:The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
➤About Video:Our Car DVR is 1440P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can't support our DVRs work normally, if you can't make sure you have good TF Card,please buy our Original TF Card together.

Main Features

Streaming Media DVR Mirror

This is all new technology for rearview mirror dvr. A37is equipped with this advanced streaming media technology,makes the driving rear view angle more widely,it is triple wide view angle then the traditional mirror.

It is not affected by obstacles or natural weather

Dvr use HD to provide you with flawless images in rain, fog, snow, or even at low-light level.You will be able to observe all the details with ease for outside or inside.

Huawei Hisilicon Chipset

A37 use Original Hisilicon Chip and Sony image sensor. Picture quality is more detailed.

1:1 Split Screen

1:1 split screen design to switch front and rearview recording, big screen and clearly and ersily to check rear view.You can switch views by swiping your finger left or right. It contains 3 views: front view, rear view, front & rear view.

10 Inch Touch Super Screen Display

10 inch touch screen, more convenient to operate, you can very fast operation of the car camera, so that you are safer in driving.

6 Glass HD Lens

The front camera image sensor is Sony IMX335, and 6-lens quality offers non-deforming images, together with 170° wide angle, captures the whole road’s picture in 1440P high resolution.

Front HD 2560*1440P + Rear 1920*1080P

2560*1440P Ultra HD + Rear 1920*1080P help you clearly record every moment.

Dual Camera Simultaneously Recording

170 Degree Angle front camer with 140 Degree Angle Night vision Rear view Camera (Optional) that allows for simultaneously recording videos from two different angles. Two split view make you have clear view from front and back-up camera.

Real-time Display Reverse Parking view

Smart rear view angle switch between driving and parking.You could see all further vehicles and objects clearly behind. you while real-time driving and it will switch  the rear view camera  automatically to give a closer backup image when parking.

FULL HD 1080P Rear View Camera (Optional)

1080P resolution clear viewing rear view images, and a reversing line better than the original rearview images, reversing more secure.

About Choosing The Length Of Rear Camera Cable

There are 2 lengths of rear camera (up to about 10 meters) can be chosen,suitable for cars of different lengths.Please choose the rear camera according to the length of your car.

Loop Recording

When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.However, videos under special conditions will not be overwritten, such as G-sensor, Parking Monitoring.

G-Sensor

When your car is subjected to an impact or other emergency, the G sensor is triggered, so that the recorder immediately records and locks the video.

Time Lapse Video Function

Taking a 16G memory card as an example, only about one hour of video can be recorded in the 30-frame per second mode. After the time-lapse recording function is enabled, recording time under 1 frame per second mode will reach 30 hours (more than 24 hours), which will increase the maximum recording time and data storage by 30 times, ensuring the integrity of the recorded content, greatly saving memory Card space and protect your vehicle for more than 24 hours.(Note: Need to buy a buck line)

Parking Monitor

If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours.If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.

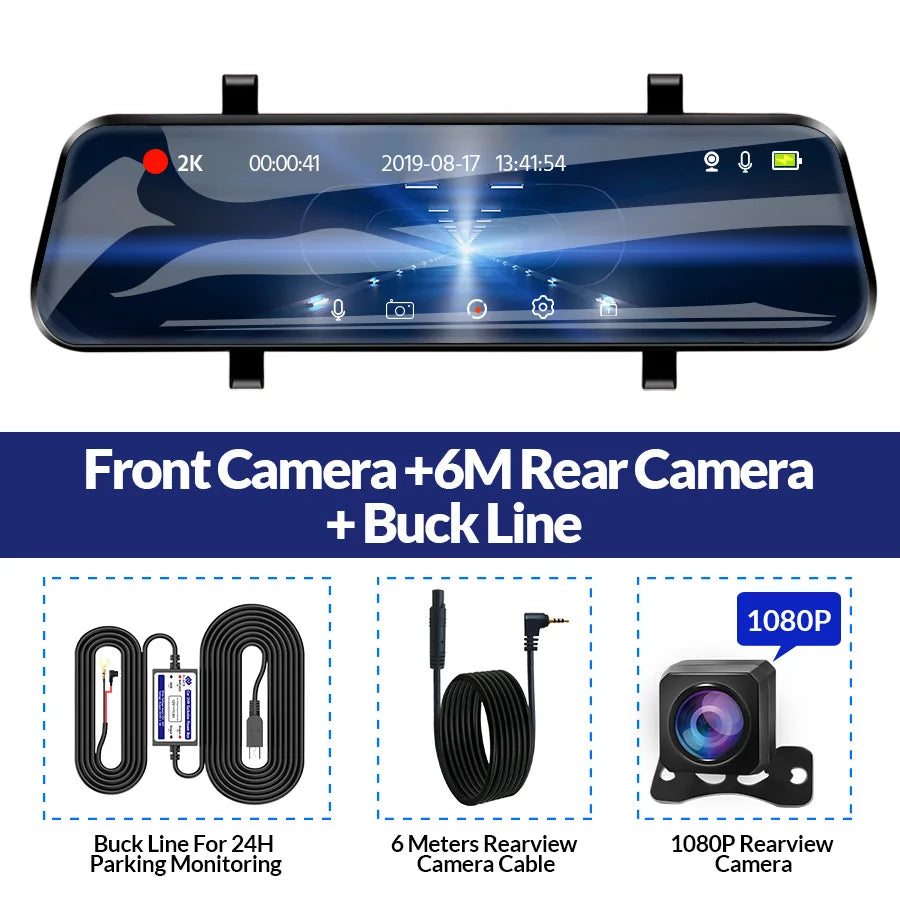

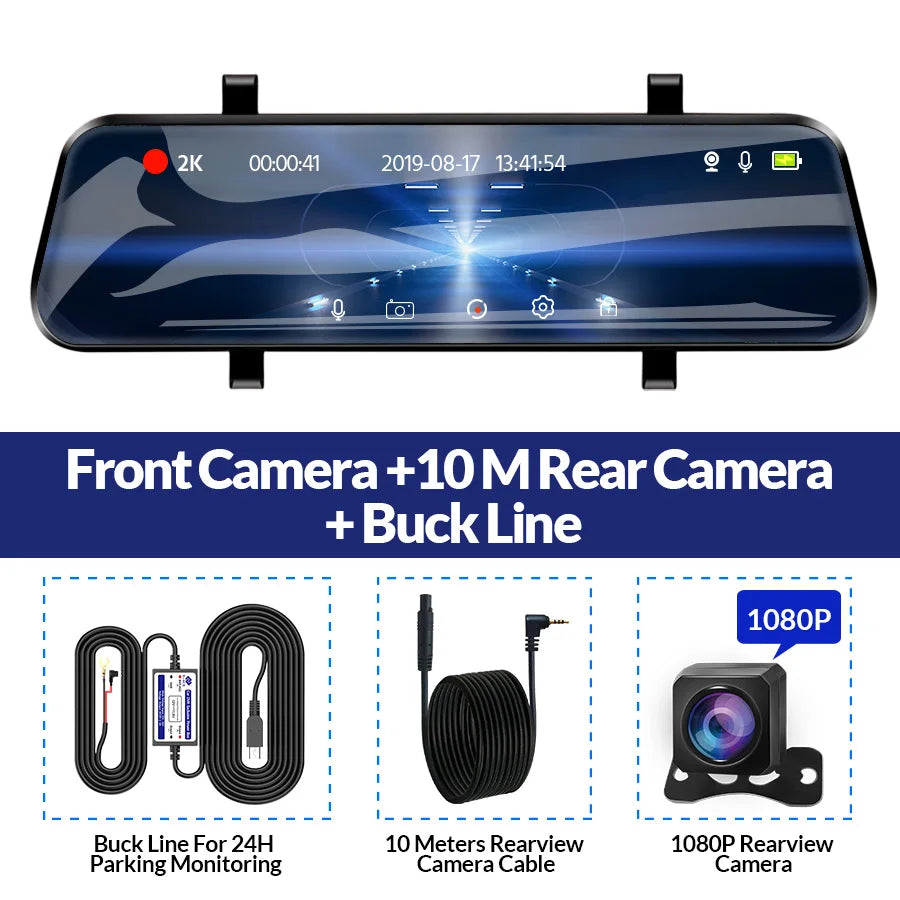

Buck Line

Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.

WDR Dynamic Light Processing

For local exposure control frame(eliminates glare and dimming)
