2/4/5/10/20/50pcs SG90 9g Micro Servo For Rc Planes Fixed wing Aircraft model telecontrol aircraft Parts Toy motor 450 Helicoper [TOYS]
2/4/5/10/20/50pcs SG90 9g Micro Servo For Rc Planes Fixed wing Aircraft model telecontrol aircraft Parts Toy motor 450 Helicoper [TOYS]
Regular price
$14.00 USD
Regular price
$0.00 USD
Sale price
$14.00 USD
Unit price
/
per
SKU:4000903734519-2 PCS
SPECIFICATIONS
Brand Name: Skyquist
Origin: Mainland China
Material: plastic
Plastic Type: ABS
Recommend Age: 14+y
RC Parts & Accs: Servos

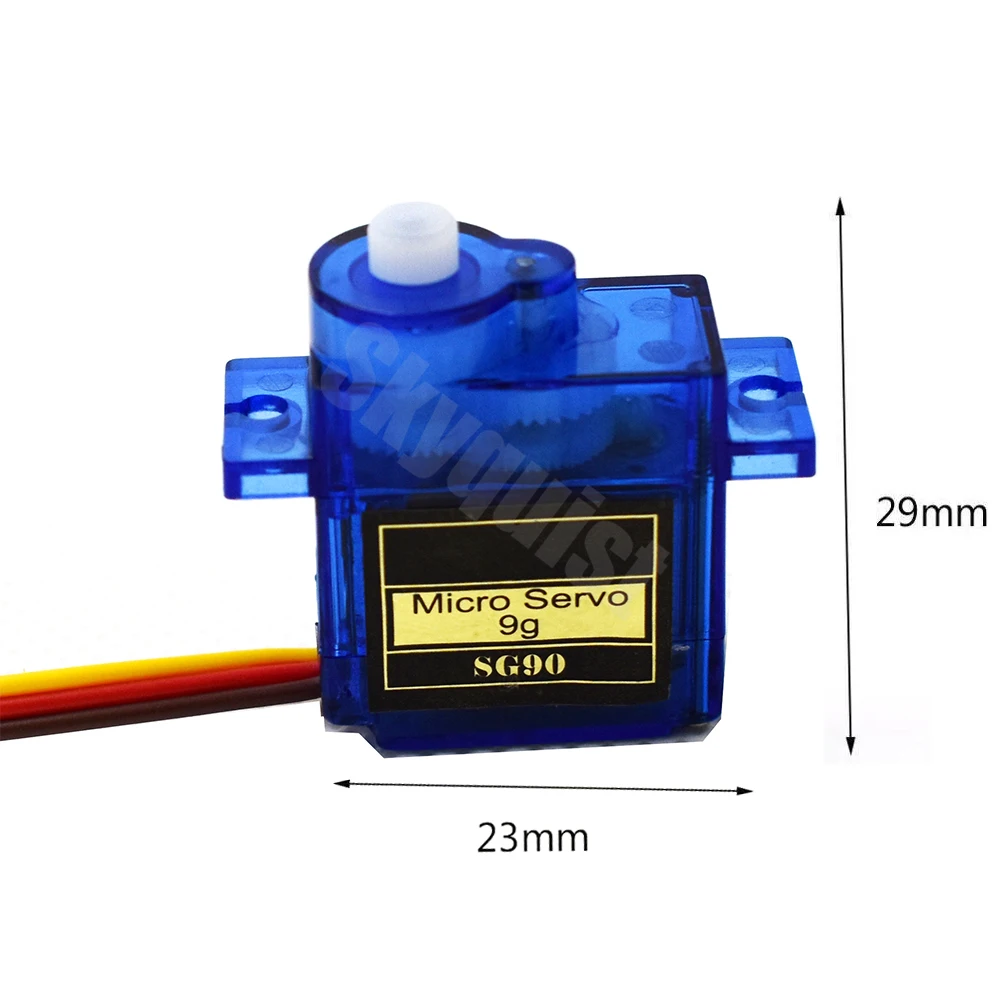

Size: mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 3
Model Number: SG90
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws

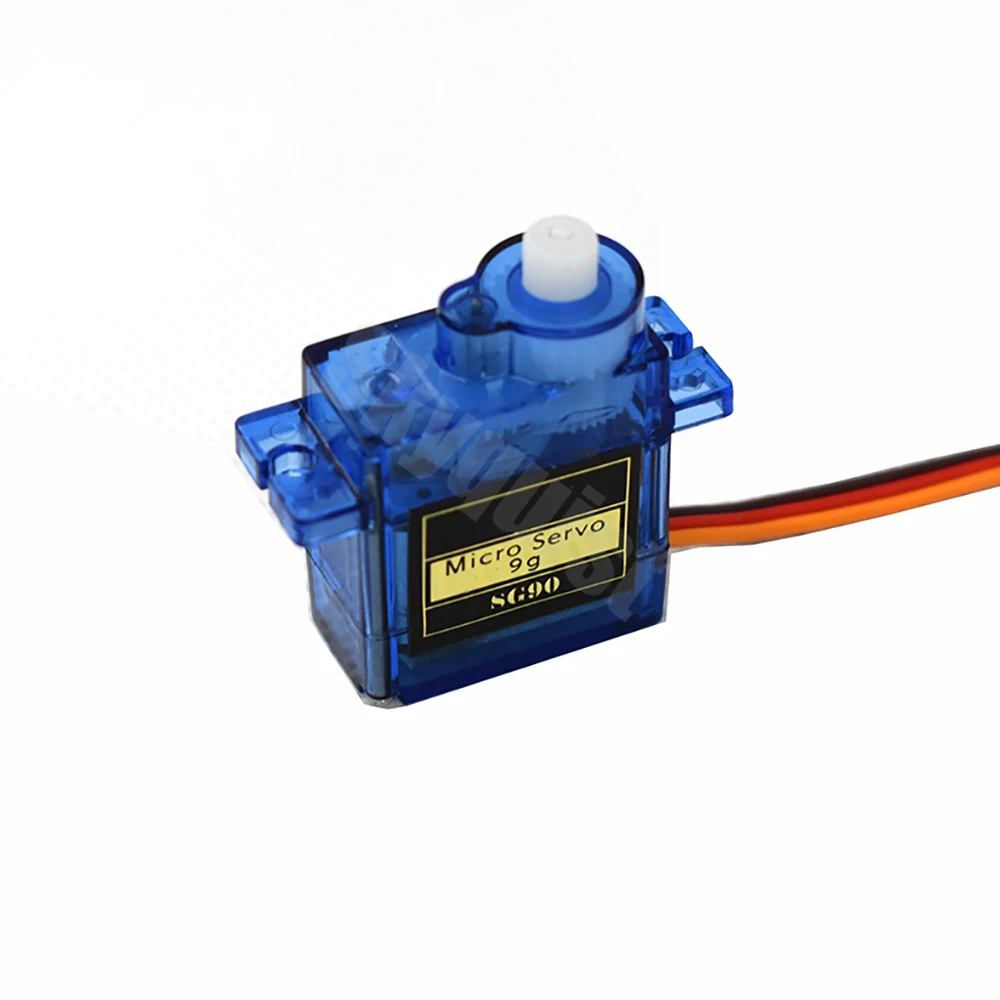

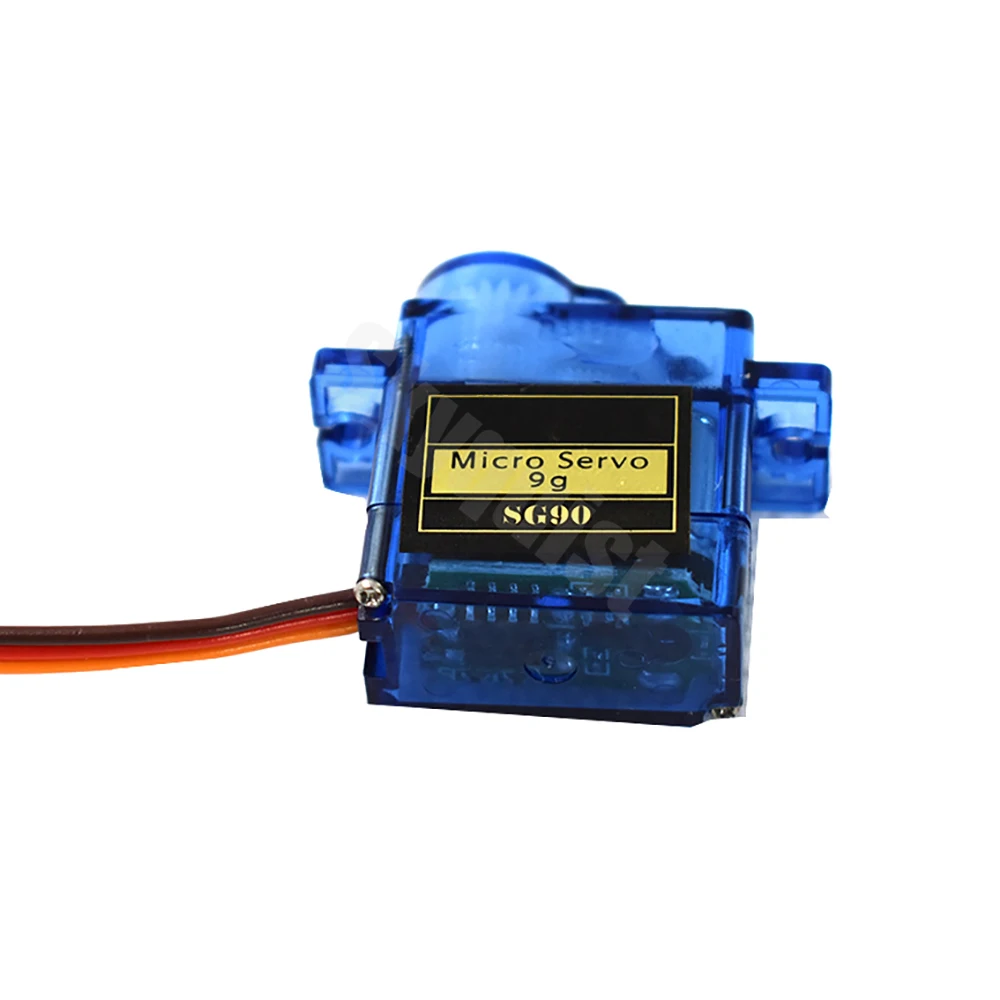

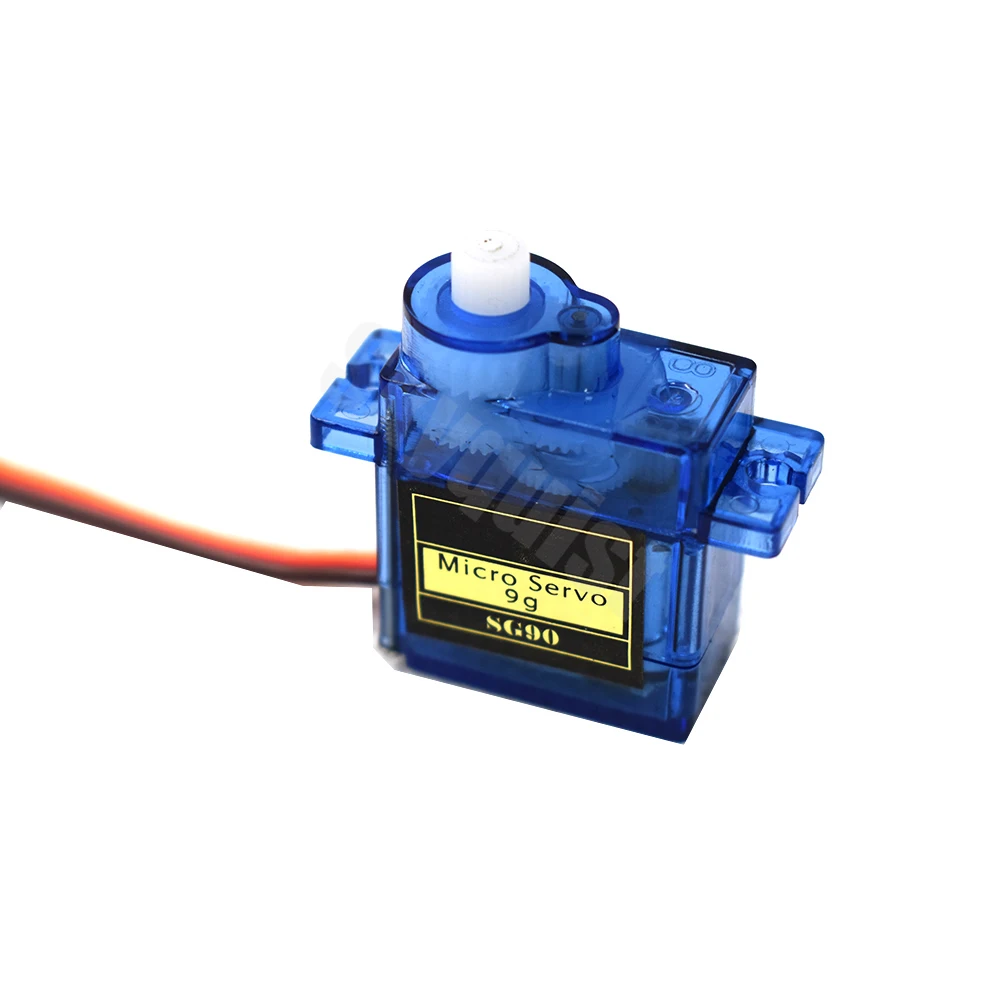

This is the most popular mini servo. It only weighs 9 grams and gives you 1.5 kg.cm of torque. Pretty strong in size. Suitable for lightning robot.
Characteristics:
Operating speed: 0.3 seconds / 60 degrees
Suspension torque: 1.5 kg / cm
Temperature range: 0 C_ 55 C
Deadband Width: 10usec
Operating voltage: 4.2V ~ 6V
Suitable for all kinds of R / C toys
Connector cable length: 250mm
Steering gear control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms. Taking the 180-degree angle servo as an example, the corresponding control relationship is as follows:
0.5ms--------------0 degrees;
1.0ms------------45 degrees;
1.5ms------------90 degrees;
2.0ms-------135 degrees;
2.5ms-------180 degrees;
Steering gear control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms. Taking the 180-degree angle servo as an example, the corresponding control relationship is as follows:
0.5ms--------------0 degrees;
1.0ms------------45 degrees;
1.5ms------------90 degrees;
2.0ms-------135 degrees;
2.5ms-------180 degrees;
Package includes:

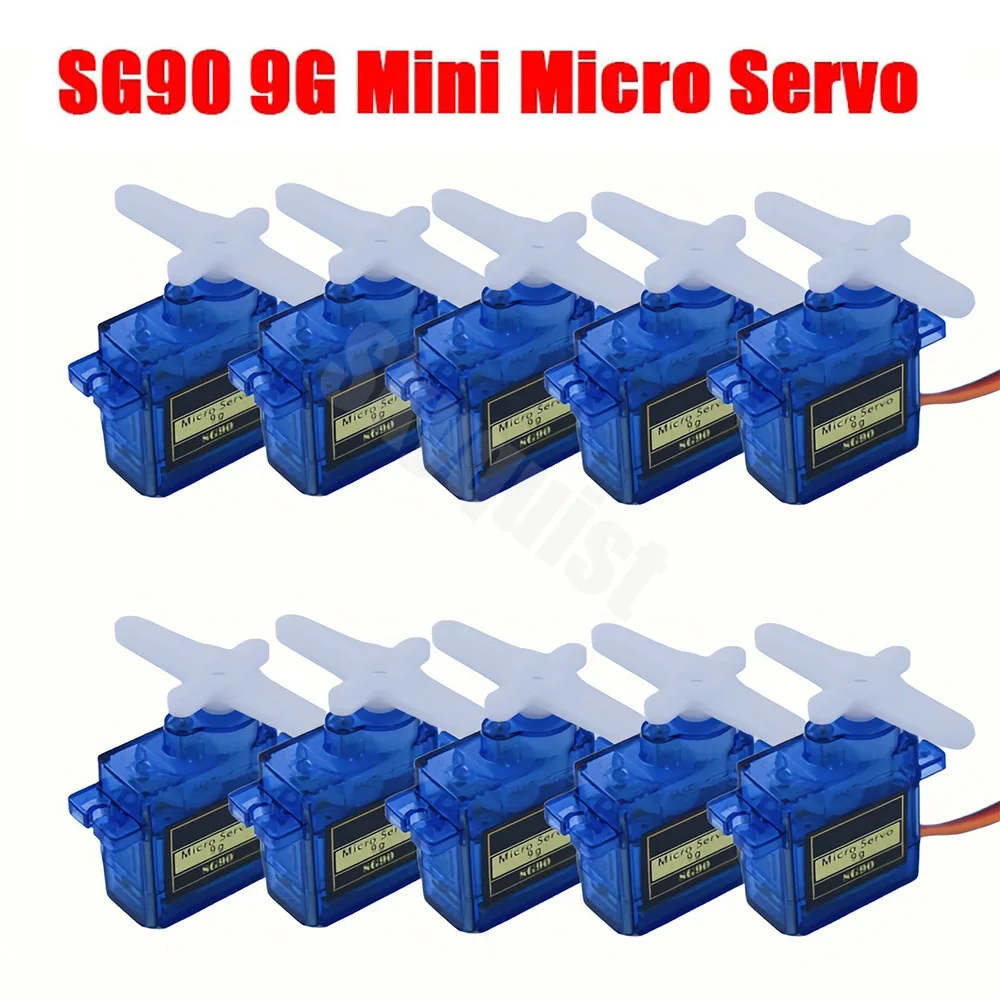

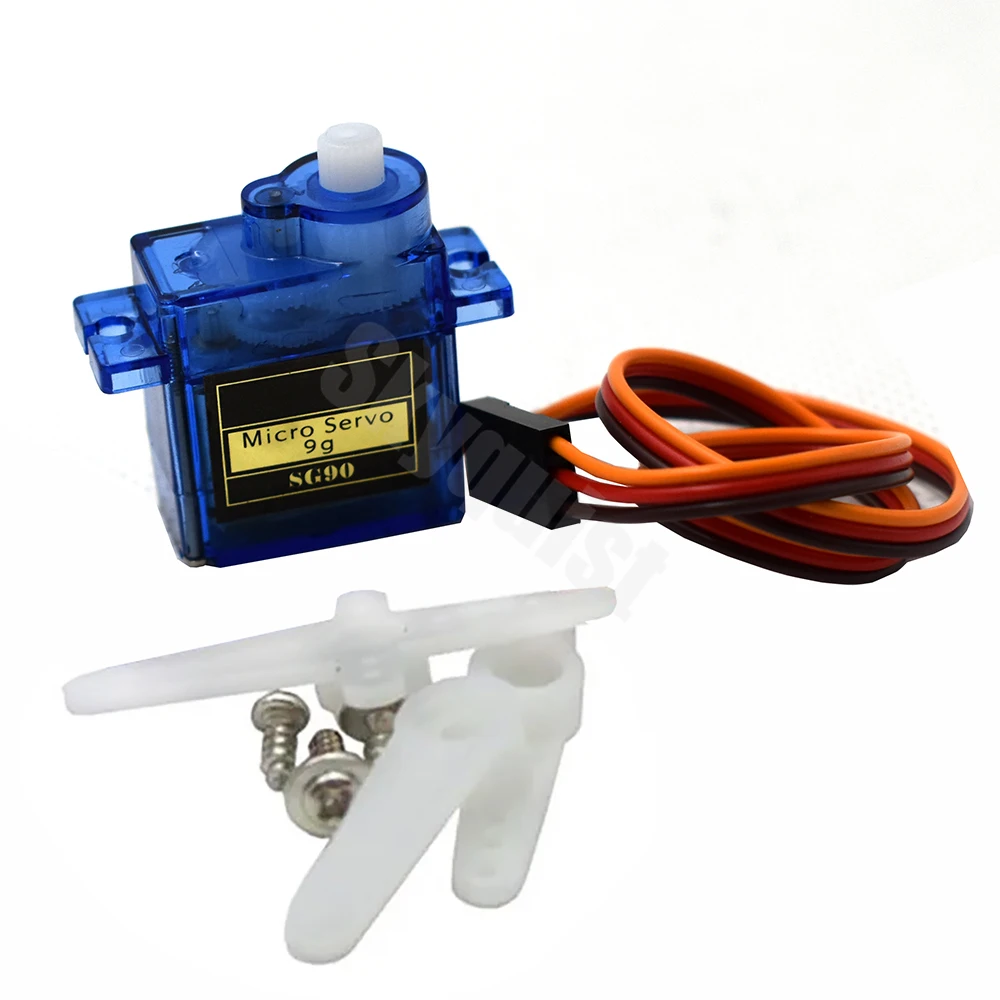

2/4/5/10/20/50 x SG90 9G Servo Motor
