2 3 4 Position Battery Mass Switch Cut Single Dual M-Series Marine Boat 12-48V 100-300A Heavy Duty Isolator Disconnect Rotary [MRN]
2 3 4 Position Battery Mass Switch Cut Single Dual M-Series Marine Boat 12-48V 100-300A Heavy Duty Isolator Disconnect Rotary [MRN]
SKU:1005002100846846-Dual Circuit-CN
Couldn't load pickup availability
SPECIFICATIONS
Terminal size: 3/8 inch-16 (M10)

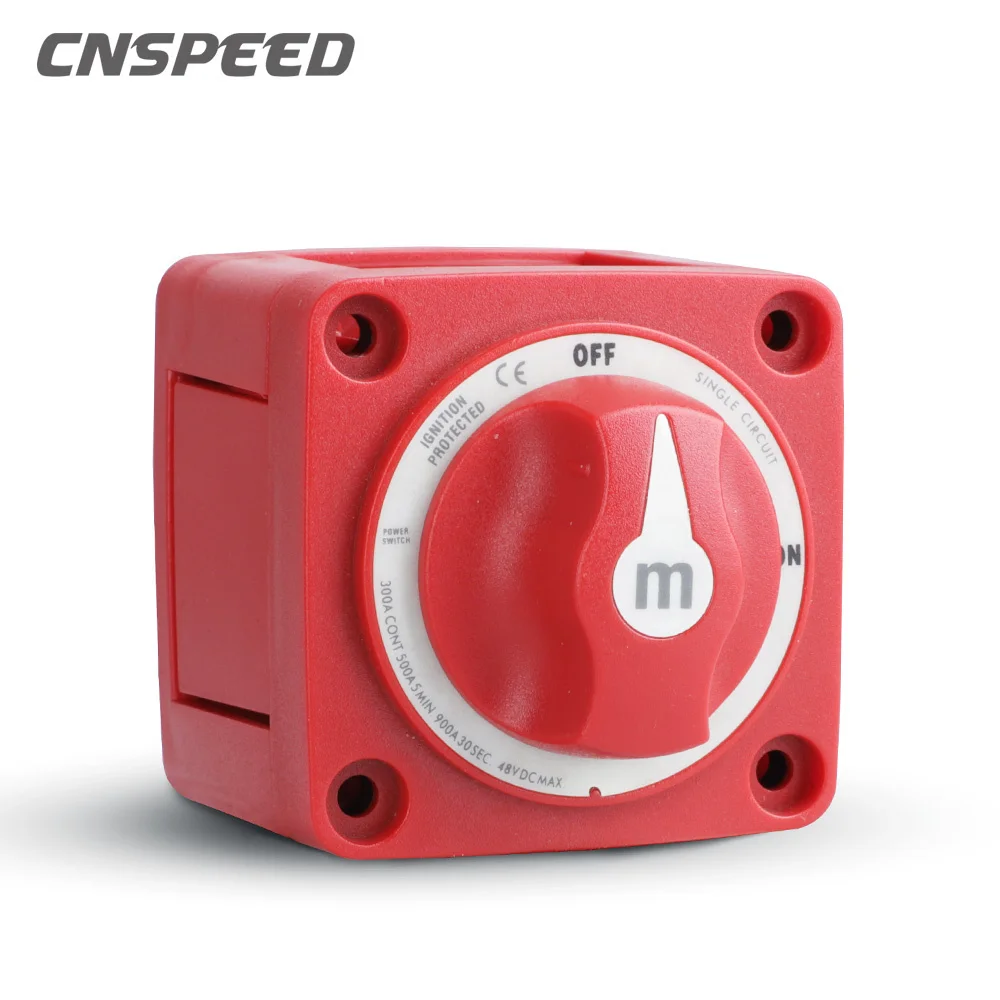

Product description: 6006 M-Series Battery Switch
Maximum working time: 500A (5MIN)
Special Features: Battery Switch
Brand Name: CNSPEED
Item Type: Battery Switch
Item Weight: 0.26
Item Height: 0
Item Length: 0
Material Type: ABS plastic + copper-plated silver inner core
Item Diameter: 0
Model Name: SWH101-2S
OEM NO.: SWH101-106
Origin: Mainland China
semi_Choice: yes

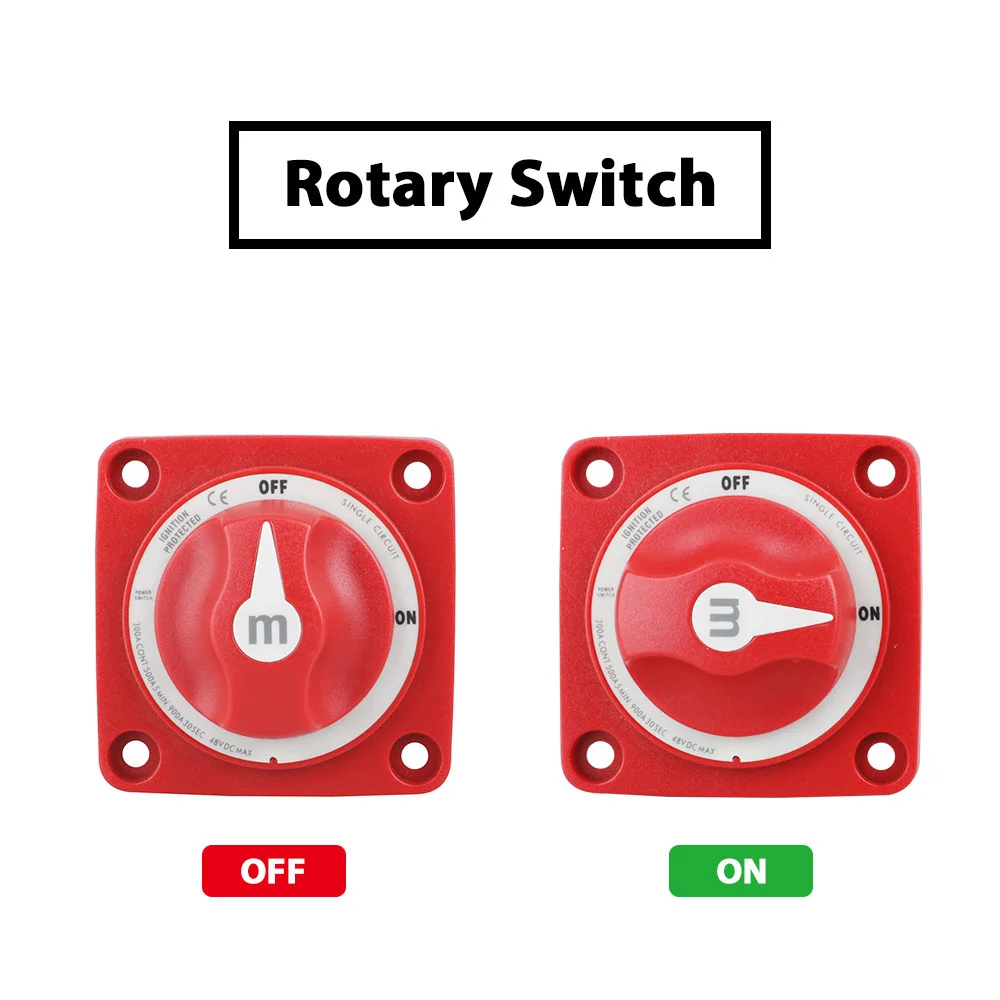

Switch Type :Single Circuit ON-OFF
Color :Red
Switch Positions :2/3/4
Battery Combine : No
Alternator Field Disconnect :No
Stud Size :3/8"
Terminal Stud Torque :120 in-lb (13.56 Nm)
Battery Inputs :12V-48V
Cable Clearance For 4/0 AWG Cables "1.12in (28.45 mm)
Cable Size to Meet Ratings :"4/0 AWG (120mm²)
Mounting Holes : "Accept #10 Screw
Stud Material :"Tinned Copper
Terminal Stud Torque :"120 in-lb (13.56 Nm)
Terminal Stud Size : "3/8"" - 16 (M10)
Description:
This Mini Battery Switch is suitable for smaller boats such as center consoles or runabouts. The rating of the switch is almost as high as the e-Series switches but its compact size makes it more suitable for smaller boats. If you are installing this with large battery cables such as 2/0 awg and above you will find it easier to use the bigger switch if space is available.
Packaged：
Marine boat cut single switch
Size:
Detail:
