SPECIFICATIONS

Brand Name: ZMFJH

Origin: Mainland China

Other Part Number: Oil Liquid Tank Fuel Level Sensor

Placement on Vehicle: Front

Material Type: Stainless Steel

Item Length: 300mm

Special Features: Water Level Sensor

Item Width: 200mm

Country/Region of Manufacture: China

Item Height: 300mm

Interchange Part Number: Water Level Gauge

Item Weight: 0.3kg

Manufacturer Part Number: Fuel Level Sensor

Output Signal:: 0-190 ohm /240-33ohm

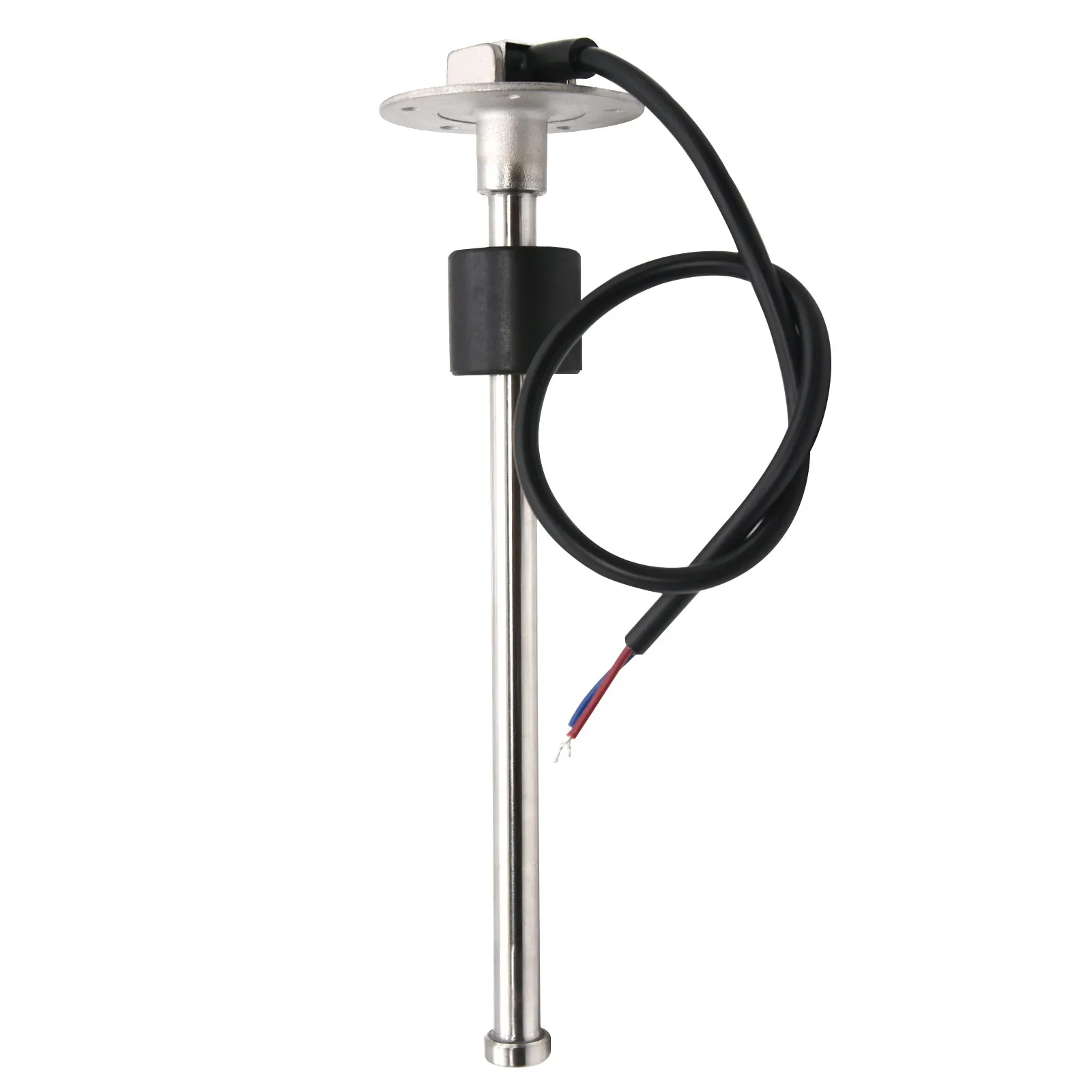

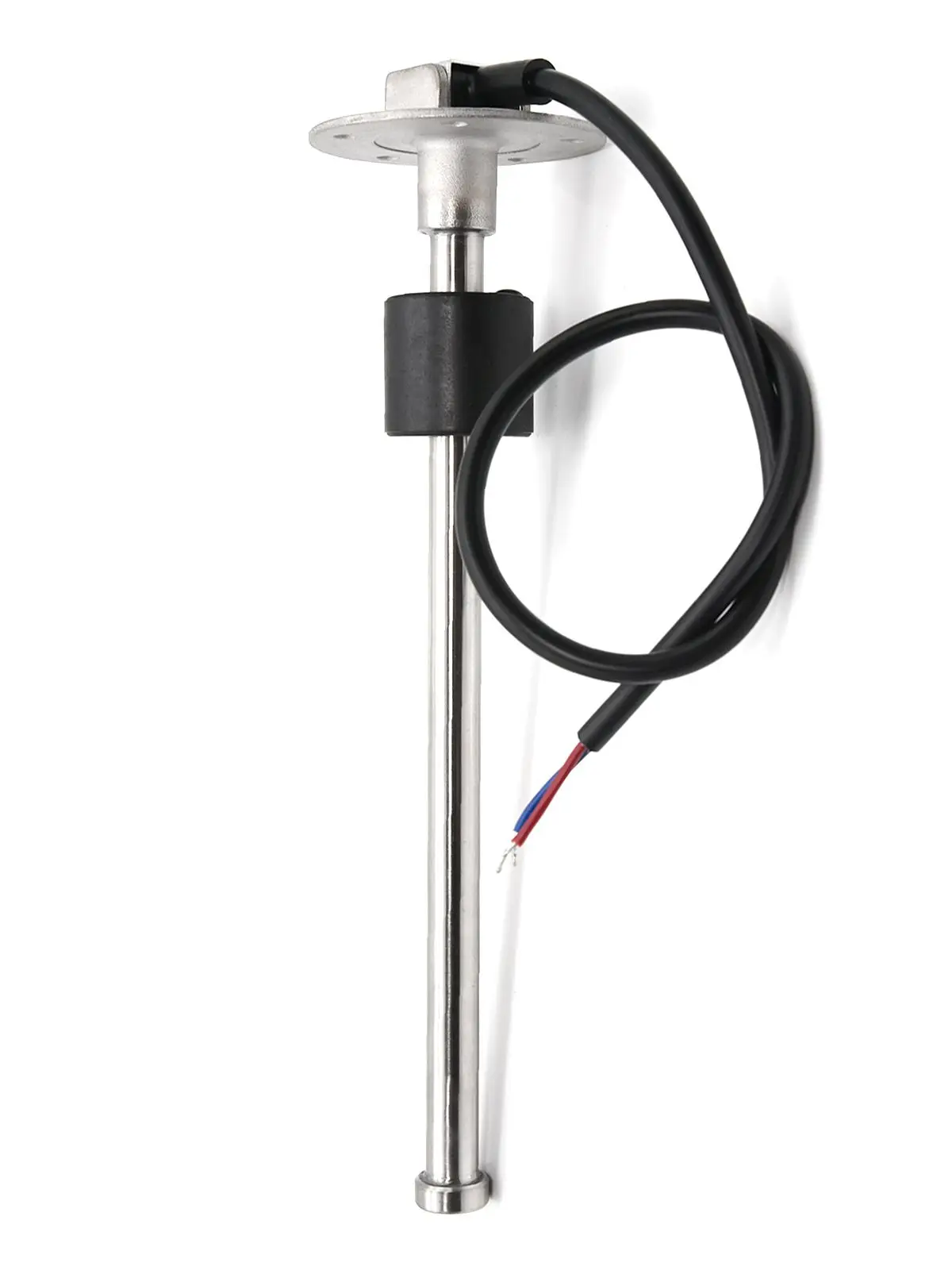

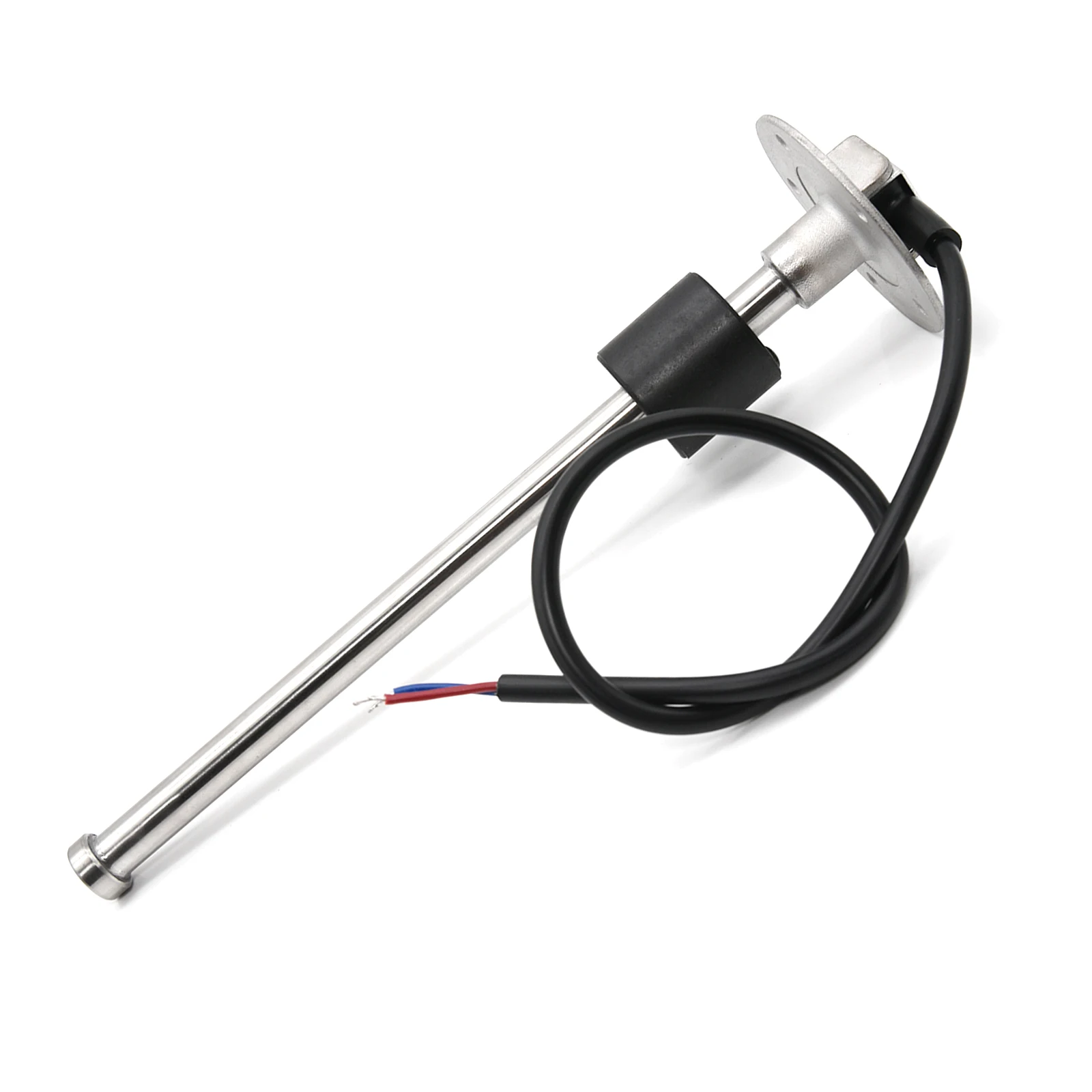

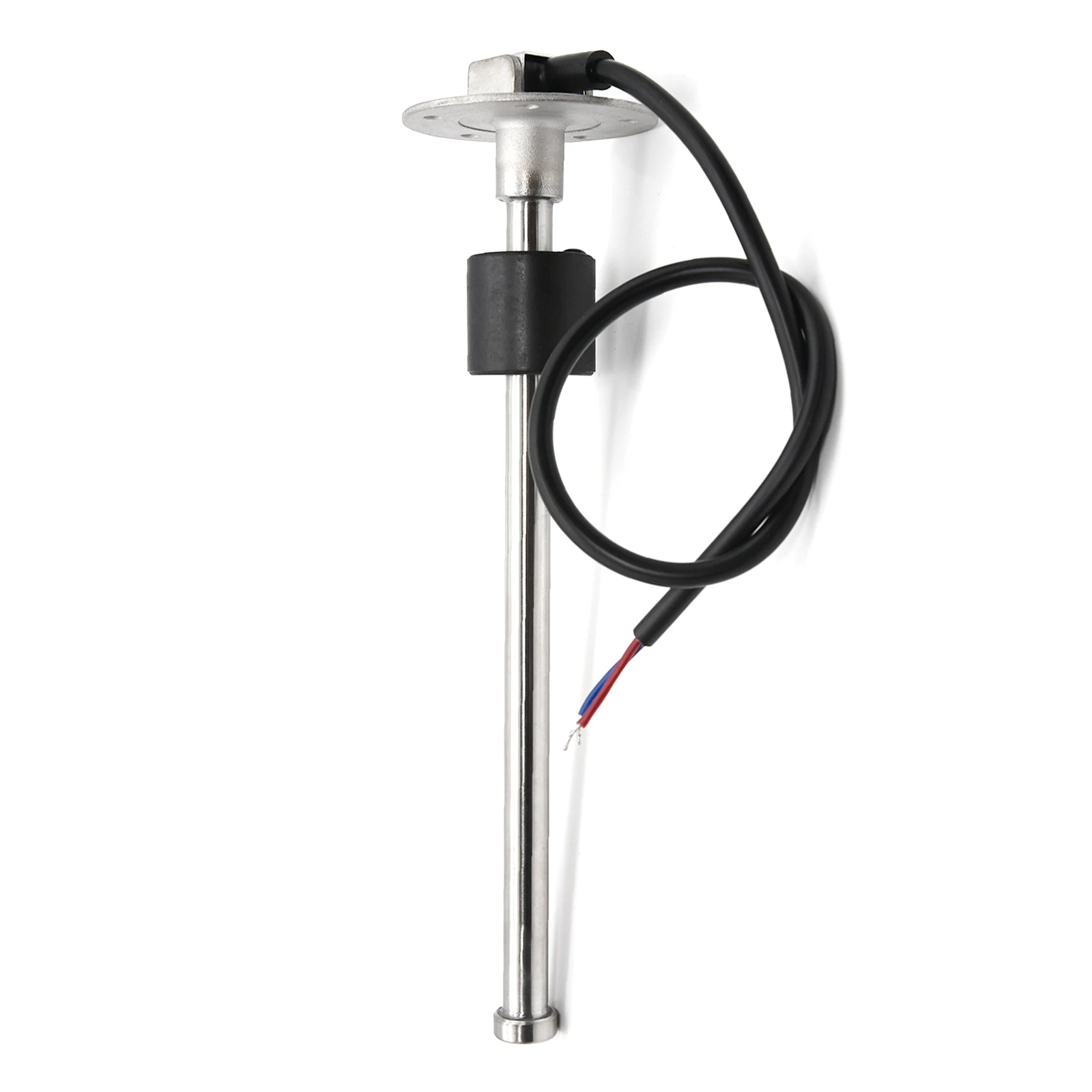

Item name:: Fuel Level Sensor

Fuel Guage Sensor Length Range:: 125mm-600mm

Fuel Sensor Material:: Stainless Steel

Function 1: Water Level gauge Sensor

Function 2: Fuel Level Gauge Sensor

Function 3: Fuel Sending Unit Float switch

Sensor Support:: Fuel Level Gauge / Water Level Gauge

Assembly:: SAE Standard 5 Holes

5 Holes Sensor Support:: Fuel Level Gauge, Water Level Gauge

fuel level sensor stainless 240-33 ohm: Fuel level sensor

fuel level sensor: fuel level sensor 12v



Specification:

- Material: 316 Stainless Steel
-Length:125mm/150mm/200mm/250mm/300mm/
350mm/400mm/450mm
- Mounting Methods: Standard SAE 5
- Protection Rank: IP67
- Output Signal: Standard European 0-190 ohm
Standard American 240-33 ohm

Feature :

- Protection ank: IP67
-100% Barnd New and high quality
-Level Sensor fit for Diesel & Gasoline Engine
-Level Sensor Support : Fuel Level Gauge and Water Level Gauge
-Suitable for truck, generators/gen set, bus and marine field.

Package:

1x Sensor
1xGasket
5xScrews

Note :Fuel Level Sensor can be Custom Size and OHM , pls feel free to contact us !
