GreenYi AHD 1920x1080P Car Camera 170 Degree Fish Eye Lens Starlight Night Vision HD Vehicle Rear View Camera [CAR]

GreenYi AHD 1920x1080P Car Camera 170 Degree Fish Eye Lens Starlight Night Vision HD Vehicle Rear View Camera [CAR]

Regular price $49.99 AUD
Regular price $0.00 AUD Sale price $49.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:4000313602575-CVBS720P-AHD720P-CHINA

Color Name
Ships From

SPECIFICATIONS

Brand Name: GreenYi

Origin: Mainland China

Guiding Line: Yes

View Angle: 170°

Alarm Type: Vehicle Backup Cameras

Alarm Type: ACCESSORIES

Alarm Type: Rear Side

Lens Material: glass

Shell Material: aluminium alloy

Certification: CE

Certification: RoHS

Wire or Wireless: Wire

Material Type: STAINLESS STEEL

Length of Video Cable: 6M

Effective Pixels: 1080P Optional

Camera chip: AHD/Sony OV225

Signal Format: PAL/NTSC

Video output: AHD Video signal

Camera angle: 170 degree like as fish eye

Night vision: low-light level 15m visible

Waterproof: IP68

Model: AHD818-1080P

Choice: yes

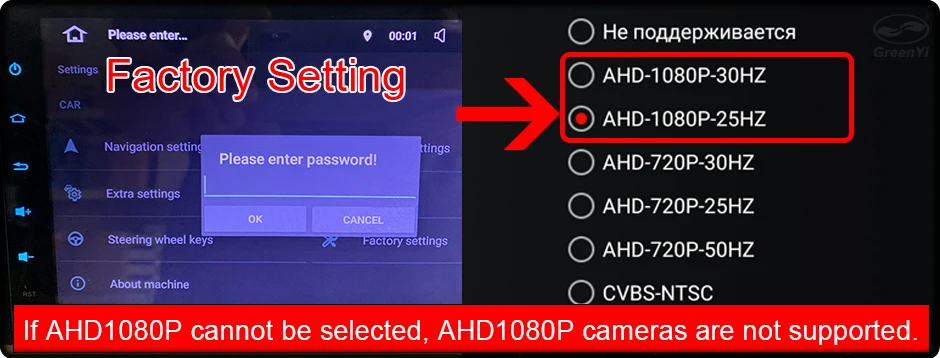

Tip! About AHD1080P options:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!

How to check whether the Android unit supports AHD camera?

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

Features:

• AHD Sony/OV225/2053 imaging sensor.
• Video output: AHD Video Signal (1080P/720P)
• High-definition and 170 degree wide viewing angle. Fisheye lens
• Support parking reference line switch on/off
• Support NTSC/PAL Video system.
• High grade of waterproofing: IP68.
• Low-light Level Night Vision, 15m visible distance for night.
• 6M RCA Video connector.
• New body material:
High quality stainless steel, aluminium alloy.
Anti Scratch.
Waterproof.

170° View Angle

Real 170° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

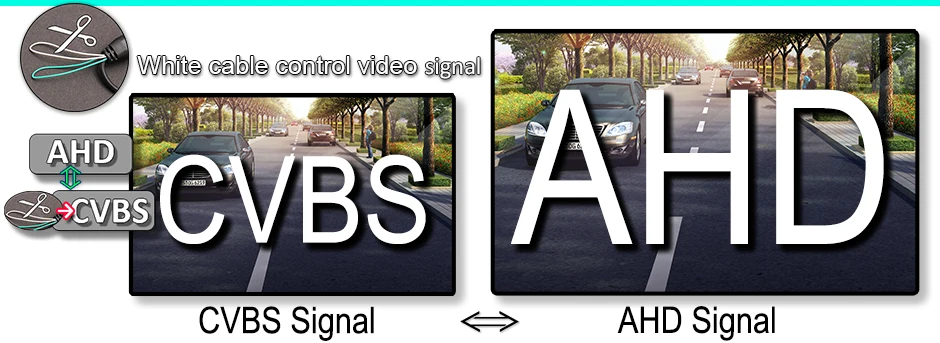

↑↑ Support video signal control AHD/CVBS

Through signal control, it can support CVBS and AHD displays.
• AHD720P-CVBS720P camera:
( AHD )+( 1280x720 )+( 170° )
Cut the white cable→( CVBS )+( 1280x720 )+( 170° )
• AHD1080P camera:
( AHD1080P )+( 1920x1080 )+( 175° )
Cut the white cable→( CVBS )+( 1280x720 )+( 125° )

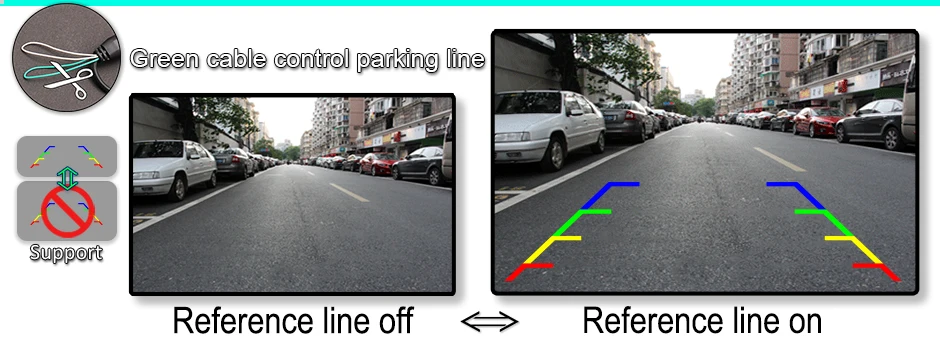

↑↑ Support parking reference line switch on/off

Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.


Support Waterproof


The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions

AHD (Analog High Definition Technology)

AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Highly integrated AHD front-end chip, high-definition quality products.

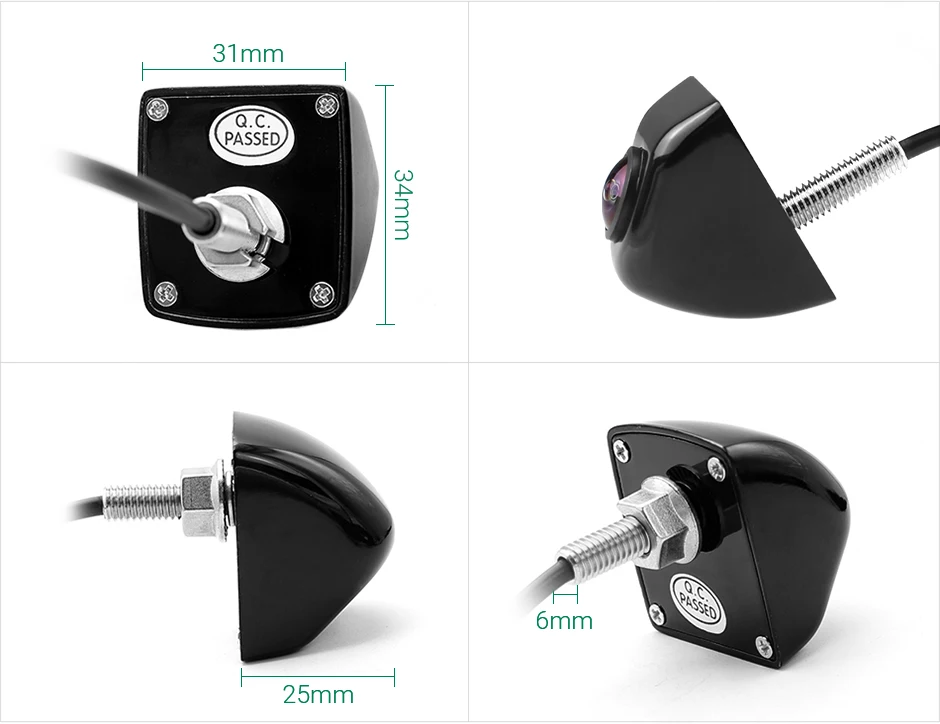

Size

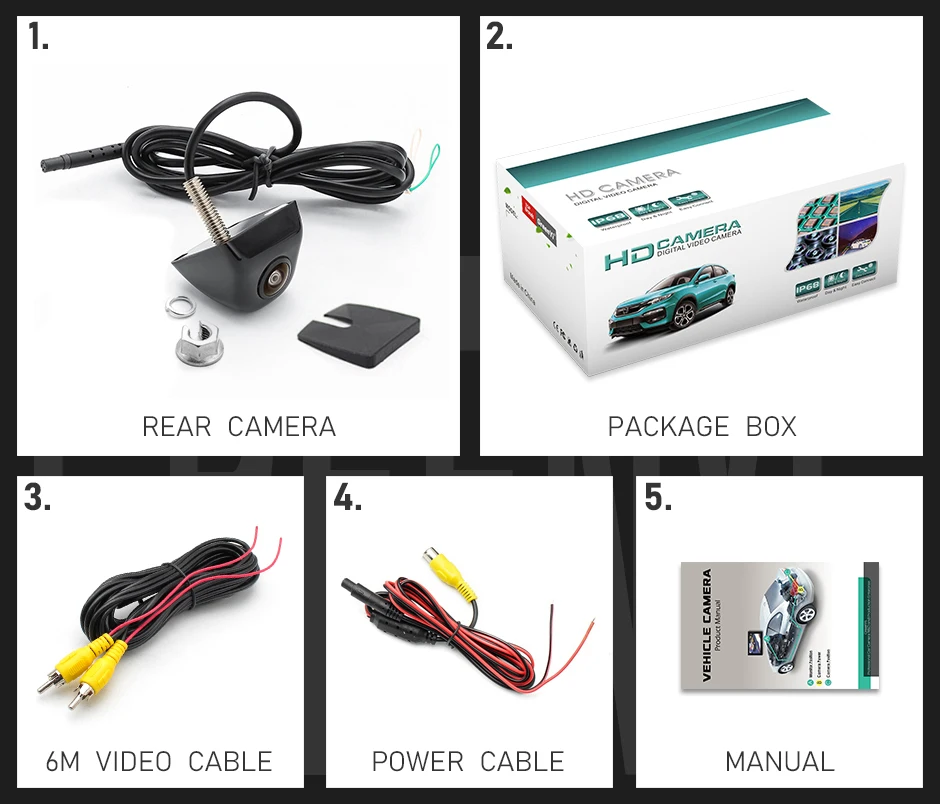

Package

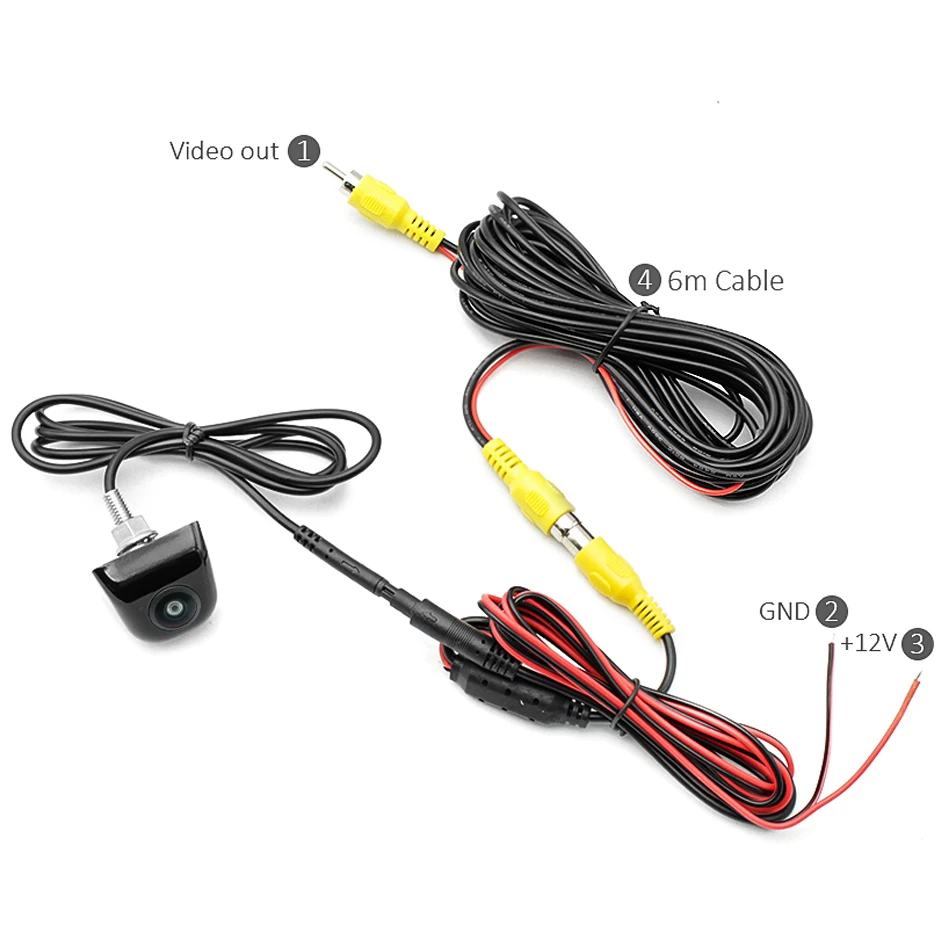

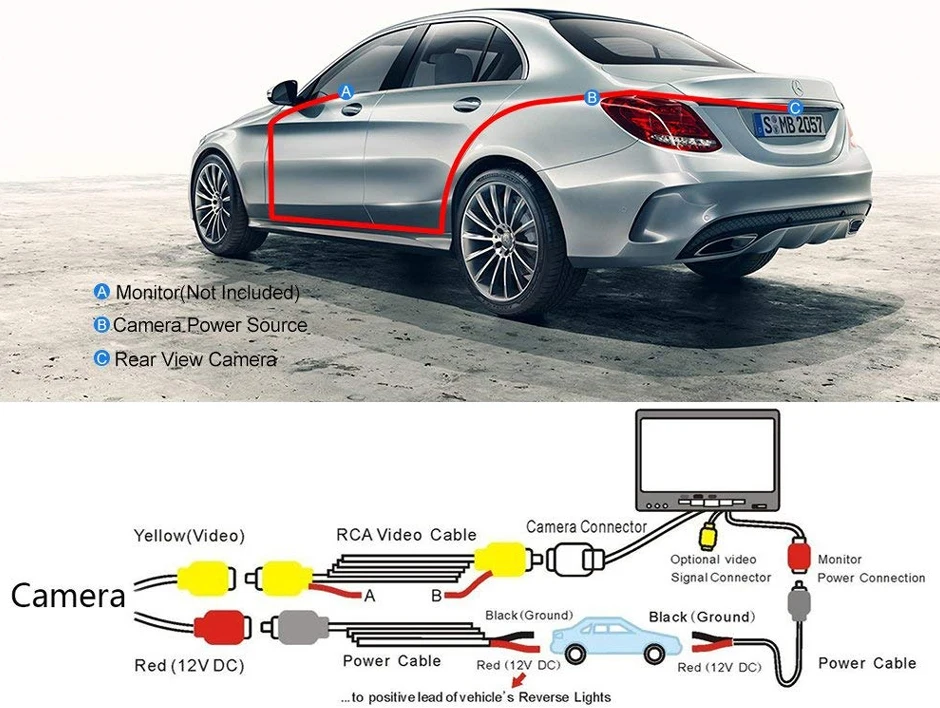

Installation Diagram

Tips: If the monitor is android dvd or stereo radio, you need 6m cable red trigger wire "A" and "B":
"A" connect reverse lights power DC 12V+.
"B" connect to radio trigger wire.
