Product instruction：

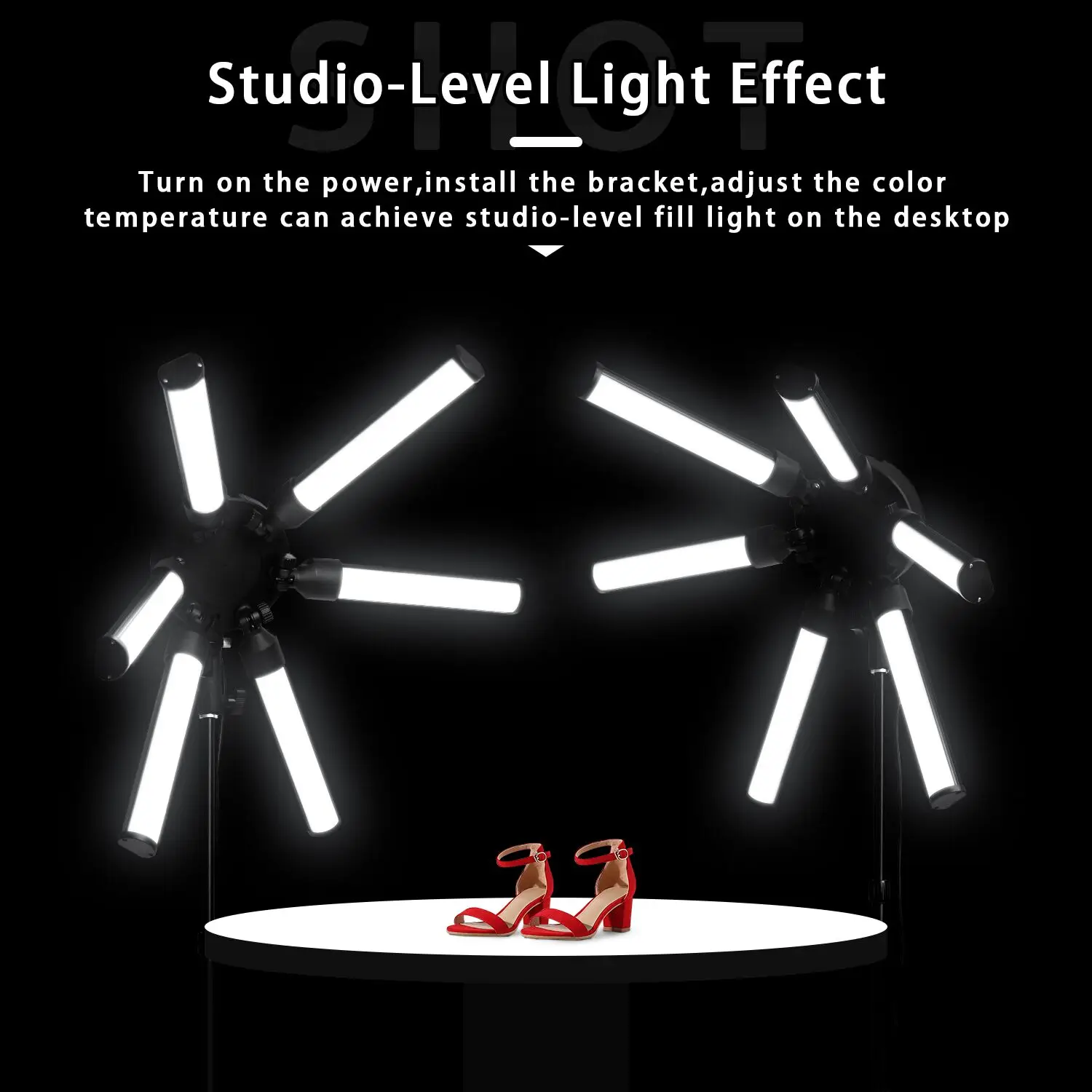

FT-06 eyes digital photography light take the circle as the center outward radiation design,showing sun-shaped shadow. it is controlled by microcomputer chip,

digital tube display,and it is make of 12 tubes of high power there has 3 color temperatures,stable color temperrature,high CRI and long lifetime,it add international general DMX512 function,the output power is stepless adjustable light,the built-in temperature protection circuit,built-in automatic cooling system,this light can provide the high quality and power continuous source for real shed base,television,beauty and make up,traditional film photography,digital photography and photographic teaching and other fields.
Technical data
Input power:100-240V 50Hz/60Hz
output power:6*20W 120W
color temperature:3200K/4200K/5600K(±200K）adjustment
CRI:Above 97
Dimming range: 0%-100%
DMX:Dmx512
led quantity:672pcs leds
lumen: 12000

Operation instruction

(5.1)take the light body from packing insert the power adapter light DC port ,and connect to alternating current

(5.2)Turn on the light the signal of “P””W” are all remitting red light,and into the function to adjust the light,the digital power (1) display from 1.0 to 6.0

(5.3) Push the multi-fuction knob (2) into DMX512 mode,”D” signal is remitting red light ,digital power screen(1) display from d1 to d512 to choose.

(5.4)Push the knob(2）into the color temperature mode and “K” signal is light,digital screen （1）display 3200k,4200k and 5600k.

(5.5)Put the camera to the locking screw (4),it can adjust the position of the camera ,front or back .

(5.6)Adjust the screw (5) .it can adjust the height of the camera

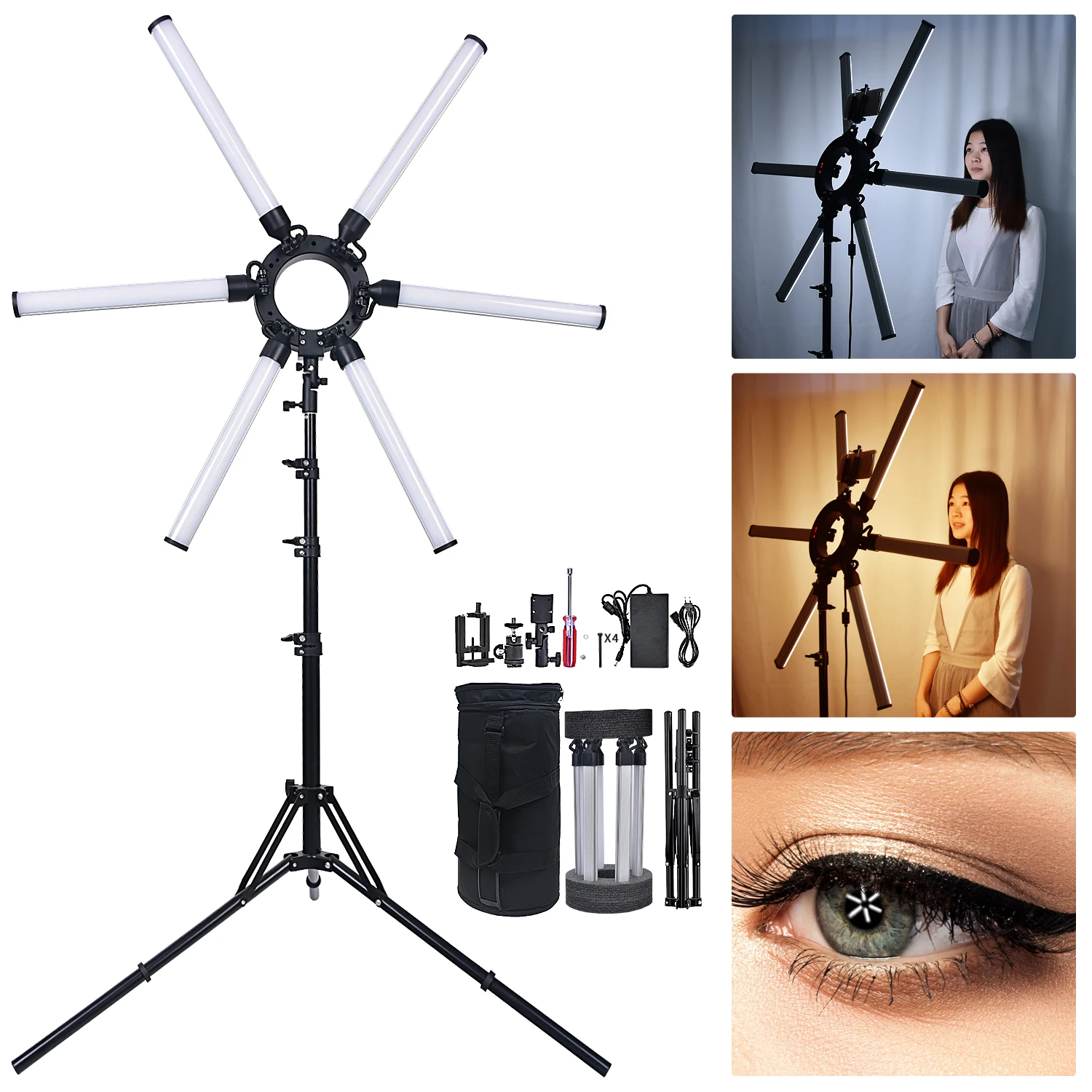

package included:
1*FT-06 star light
1*bag
1*phone holder
1*ball head
1*power adapter
1*plug
1*Manual
1*tripod stand

please note:we have two types phone holders,we will send you on random，thanks
