E-ACE 4G Car Dvr 10 Inch Mirror Dash Cam Android 8.1 GPS Navigation Car Camera Auto Recorder ADAS Support 1080P Rear Camera [CAR]
E-ACE 4G Car Dvr 10 Inch Mirror Dash Cam Android 8.1 GPS Navigation Car Camera Auto Recorder ADAS Support 1080P Rear Camera [CAR]
SKU:4001251156421-D13-6M RCC-uzbekistan-64G
SPECIFICATIONS
Brand Name: E-ACE
Frames Per Second: 30
Origin: Mainland China
Chipset Manufacturer: MediaTek
Assembly Mode: REARVIEW MIRROR
Cable Length: Up to 15 meters
View angle: 170°
Number Of Lenses: 2
Screen Ratio: 16:9
Interface: AV-In
Interface: bluetooth
Interface: USB2.0
Interface: WI-FI
Interface: Micro SD/TF
NightShot Function: YES
Power Source: Corded Electric
Video Code: H.264
Battery Life: Connect with Car charger
Original Package: YES
Dimensions (W x H x D): 10 Inches
Loop-Cycle Recording Feature: YES
Audio Recorded: YES
Camera Resolution: 1920x1080
Warranty: 365 Days
Special Features: G-Sensor
Special Features: digital zoom
Special Features: motion detection
Special Features: sd/mmc card
Special Features: With Rearview Mirror
Special Features: Radar Detector
Special Features: Anti Surge Voltage Impact
Special Features: waterproof
Special Features: Anti Fog
Special Features: Anti Vibration
Special Features: Real Time Surveillance
Special Features: Automatic White Balance
Special Features: Wide Dynamic Range
Special Features: wifi function
Special Features: bluetooth
Special Features: Parking Monitor
Special Features: adas
Special Features: Speed and Coordinates Recording
Special Features: 3D DNR
Special Features: External GPS
Built-in Screen: YES
Video Format: MP4
Touch Screen: YES
Data Storage Capacity: Up to 128GB
Aperture: F 1.8
Item Type: Car DVR
GPS logger: External
Battery: built-in
Maximum Video Frame Rate: 30 FPS
Display Size: 9.88
Certification: CE
Certification: FCC
Certification: RoHS
Memory Card Required Reding Speed: Class 10
Imaging Sensor: Sony IMX323
OSD Language: Arabic
OSD Language: Chinese (Simplified)
OSD Language: Chinese (Traditional)
OSD Language: czech
OSD Language: Danish
OSD Language: DUTCH
OSD Language: English
OSD Language: ESTONIAN
OSD Language: finnish
OSD Language: FRENCH
OSD Language: german
OSD Language: Greek
OSD Language: HEBREW
OSD Language: Italian
OSD Language: japanese
OSD Language: KOREAN
OSD Language: Latvian
OSD Language: Lithuanian
OSD Language: POLISH
OSD Language: Portuguese
OSD Language: Romanian
OSD Language: RUSSIA
OSD Language: Russian
OSD Language: Slovak
OSD Language: Slovenian
OSD Language: Spanish
OSD Language: SWEDISH
OSD Language: THAI
OSD Language: Turkish
OSD Language: UKRAINIAN
OSD Language: VIETNAMESE
Pixels: 1200Mega
Rear Camera: YES
Display: IPS
Max External Memory: 128G
Model Number: D13
Display Size: 10 Inch IPS Touch screen
D13 System: Android 8.1
RAM/ROM: 2GB/32GB
FM Transmitter: SupportSupport(Need Synchronize Dvr Mirror Music To Car Radio)
Bluetooth Handfree: Support
4G Android Dash Camera: 4G Android Dash Camera
GPS Navigation Map: Sygic Or Navitel(Supports Navigation Maps Of Various Countries Around)
Registrar Navigation: Video Recorder Navigator
Choice: yes
semi_Choice: yes
E-ACE D13 4G Car Dvr 10 Inch Mirror Dash Cam Android 8.1 GPS Navigation Car Camera Auto Recorder ADAS Support 1080P Rear Camera
Features And Specifications
●Installation Type: Rearview Mirror, suitable for all vehicles with mirror
●Screen(Display) Size: 10.0 Inch Touch Screen
●Chipset(Processor/CPU): SL8541E
●Memory: RAM:2G; ROM: 32G
●System: Android 8.1
●Camera Sensor: Front 2MP + Rear 1MP
●Camera Lens: Front + Rear; 6 Glass + 4 Glass; 170 Degree Angle + 140 Degree Angle; F2.2 Aperture + F2.2 Aperture
●Video Resolution: Front: 1280*720P@25FPS; Rear: 1920*1080P@30FPS
●Photo Resolution: 12M
●Video Code: H.264
●GPS Navigation: Support
●SIM Network: Support(3G /WCDMA:2100(B1) GSM:900(B8)/1800(B3); 4G/LTE:FDD,2100(B1) GSM:900(B8)/1800(B3) WCDMA:2100(B1)900(B8)
●WIFI: Support
●Bluetooth: Support
●Battery: Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
●OSD Languages: English, Russian, Chinses, Japanese, Korean,etc..... (If you want other languages,tell us,we will help you add it)
●Basic Features: G-Sensor, Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
●Memory Card: Micro SD Card, class 10 and 16GB to 64GB (Not included)
●Rear Camera Upgrade: Support max 15 meters cable Rear Camera
●Add Features: Night Vision, ADAS, FM
●More Features: Coming soon.....

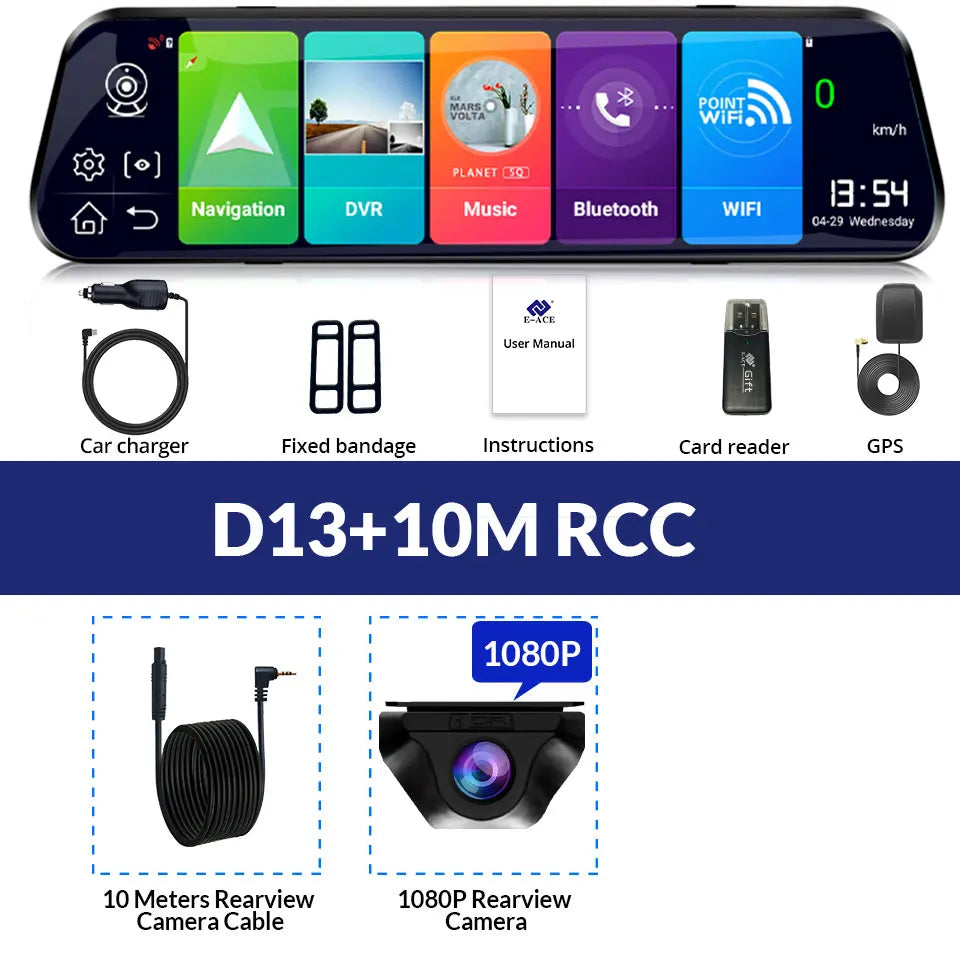

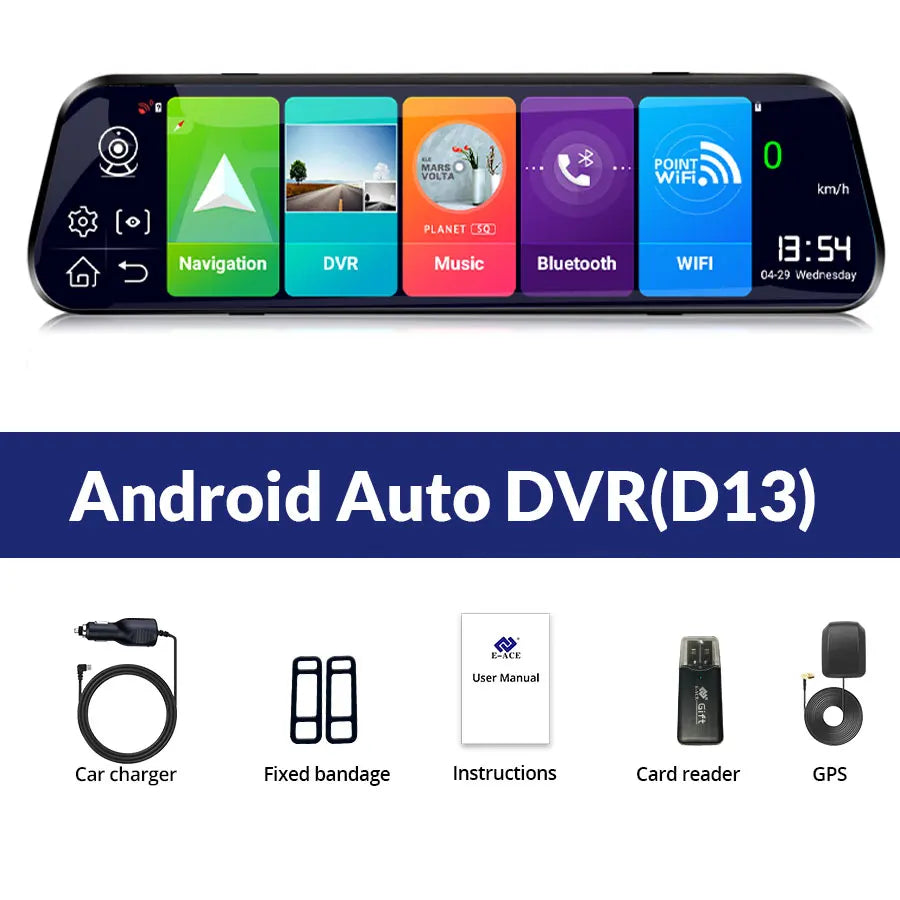

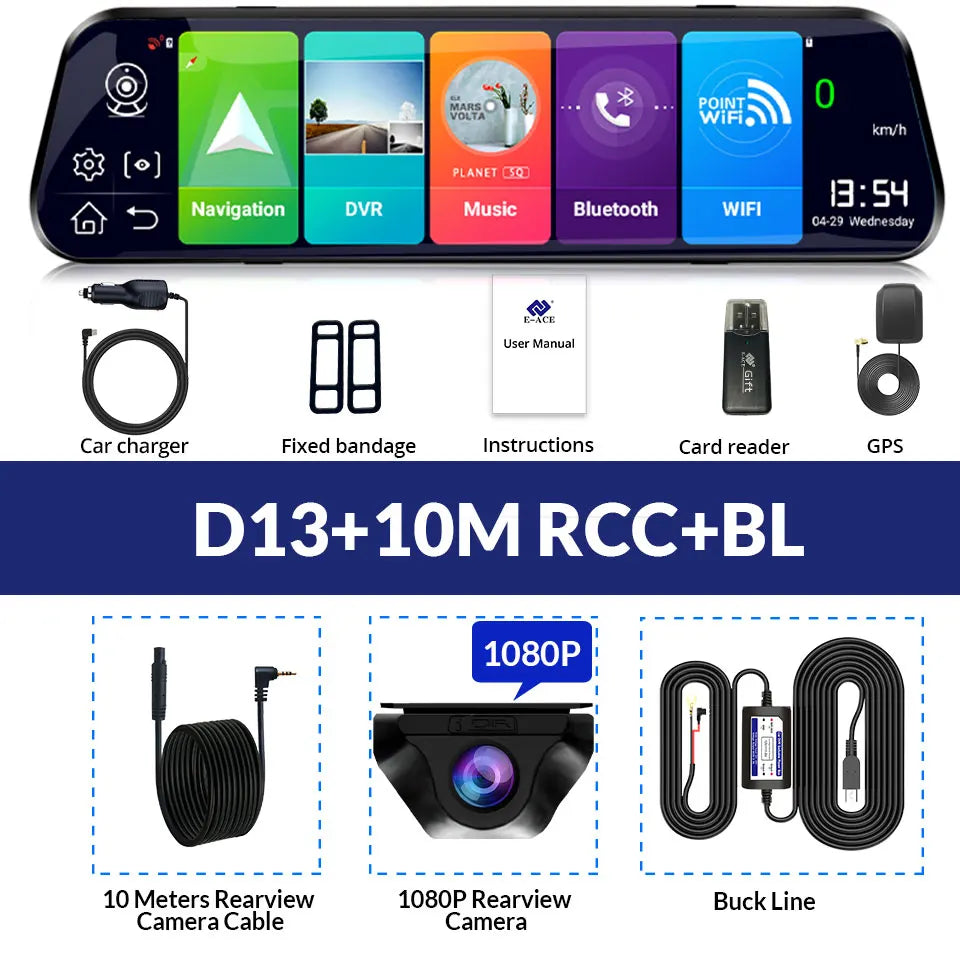

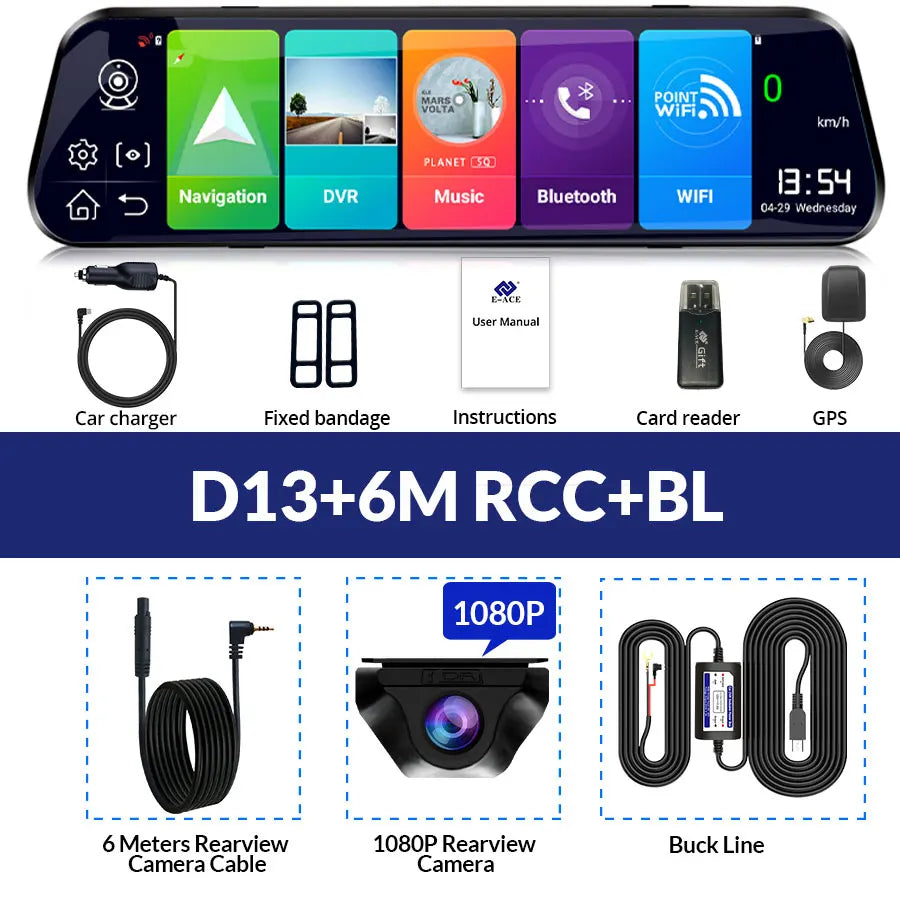

Packing List
●1 x Packaging box
●1 x DVR
●1 x User manual
●1 x GPS antenna
●1 x Car Charger
●1 x Night vision 1080P Rearview Camera With 6 Meters Cable(Optional)
●1 x Night vision 1080P Rearview Camera With 10 Meters Cable(Optional)
●1 x Real Class 10 High Speed TF Card(Optional)
Pay Attention
●About Network:
Before you place the order, please kindly check whether your local SIM card network is below bands or not:
3G /WCDMA:2100(B1) GSM:900(B8)/1800(B3); 4G/LTE:FDD,2100(B1) GSM:900(B8)/1800(B3) WCDMA:2100(B1)900(B8)
Otherwise, the car dvr will not identify your sim card.
●About 24h Monitoring:
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
●About Video:
Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can't support our DVRs work normally, if you can't make sure you have good TF Card,please buy our Original TF Card together.
●About Rear Camera
Because the Chipset and Camera Sensor are different with other seller, we only guarantee that our Original rear Camera can work well with our Dashcam.
Main Features
ADAS functnion helps your driving safely and conveniently.
LDWS(Lane Departure Warning Systems): A warning is triggered when lane departure is detected based on real time video recorded.
FCWS(Forward Collision Warning System): A warning is triggered when a possible forward collision is detected based on real time video recorded.
FVMA(Forward Vehicle Moving Alarm): An alert is triggered when the vehicle ahead of you moves based on the real time video recorder.
with high sensitivity GPS Module, Offer more accurate location when use offline GPS Navigation.
Thanks to 4G SIM card and built in wifi, no matter where you are driving, you will enjoy the fun from internet surfing , make it possible for online navigation/ music /movie ect .Use online map to make intelligent navigation, avoid busy traffic. Enjoy movie and music for driving, have more fun.
The Quad core 1.5GHZ High performance processor incorporates Android 8.1 smart systems, plus it built in RAM 2GB ROM 32GB,it makes D13 operating more smoothly and achieve multiple functions it makes the car dvr runs more quickly. You can download any APP from google play store.
With our unique remote monitor mobile app "Car Assist" and internet connection, it allows you to remote monitor your car driving path,and what happened around your car. No matter where you are, remote capture what happened to your car.
Monitor and Alarm:720P photo and 10s video alarm will be shortly(1-5s time) sent to your mobile if a car collision occurs.
GPS Track History:Your car driving path will be recorded and real-time playback on car assist app.
One Key Capture Video:One key to capture 10s video on car assist app via WIFI connection.
Super screen displays,ideal for watching HD movies playing games, browsing the web, or reading the graphics with bright colors, and provides detailed maps views, all in this 10.0 inch.
It support two Camera Lens,Front Camera Lens is about 170 Drgree wide angle,and back Camera Lens is about 150 Degree angle.Support picture in picture display,two camera lens are record simultaneously,all video save in TF Card.
Smart rear view angle switch between driving and parking.You could see all further vehicles and objects clearly behind. you while real-time driving and it will switch the rear view camera automatically to give a closer backup image when parking.
This is all new technology for rearview mirror dvr.D13 is equipped with this advanced streaming media technology,makes the driving rear view angle more widely,it is triple wide view angle then the traditional mirror.
It is not affected by obstacles or natural weather. Dvr use HD to provide you with flawless images in rain, fog, snow, or even at low-light level.You will be able to observe all the details with ease for outside or inside.
Thanks to the FM transmission function,you could synchronize the mirror dvr music to your car audio with ease.
Thanks to bluetooth hands-free,after pairing the bluetooth between dvr and smartphone,you could make and receive calls dircetly from the mirror dvr itself with the built-in MIC and speaker.
If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours.If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.
Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.
Flexible Front Camera Lens
The front lens can be pulled out/in for view angle adjusting flexibly,6-lens quality offers non-deforming images, together with 170° wide angle, captures the whole road’s picture in 1080P high resolution.
About choosing the length of rear camera cable
There are 3 lengths of rear camera (up to about 15 meters) can be chosen,suitable for cars of different lengths.Please choose the rear camera according to the length of your car.
About Rear Camera Installation
Please connect the rear camera's Red cable wire with your car reverse lamp power's Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.
When you get your car in Reverse Gear, the car dvr will automatically switch to the rear camera with parking line.
Then the auto reversing function will work.
