100mm ~ 1000mm Water Fuel Level Gauge Sensor 0~190 240~33 ohm Marine Boat Yacht Car Oil Liquid Tank Fuel Sender Unit Sensors [MRN]

100mm ~ 1000mm Water Fuel Level Gauge Sensor 0~190 240~33 ohm Marine Boat Yacht Car Oil Liquid Tank Fuel Sender Unit Sensors [MRN]

Regular price $33.99 AUD
Regular price $0.00 AUD Sale price $33.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:4001224884687-100mm 0-190ohm-CN

Color
Ships From

SPECIFICATIONS

Brand Name: RYSJM

Origin: Mainland China

OEM NO.: tacho

Other Part Number: fuel level sensor

Placement on Vehicle: speedometer car

Material Type: Plastic Shell

Item Length: 52mm

Special Features: water level sensor

Item Width: 52mm

Country/Region of Manufacture: China

Item Height: 52mm

Interchange Part Number: tachometer motorcycle

Item Weight: 400g

Manufacturer Part Number: fuel meter

digital fuel gauge: water level sensors

fuel pump level: fuel sensor

gauge car: auto gauge

fuel pressure testers: aforador combustible

boat fuel tank: motorcycle fuel sensor

fuel level gauge: water level sensor

medidor de combustible auto: compteur voiture

fuel indicator: car fuel gauge

painel digital moto: fuel meter motorcycle

fuel led gauge: fuel gauge motorcycle

fuel pressure tester: outboard tachometer

0~190 ohm: 240~33 ohm

Car Fuel Sending Unit: Fuel & Water Level Sensor

sensor: 100mm ~ 1000mm

Length: Length can be customized






100mm ~ 1000mm Water Fuel Level Gauge Sensor 0~190 240~33 ohm Marine Boat Yacht Car Oil Liquid Tank Fuel Sender Unit Sensors

Product Specifications:

- Protection ank: IP67

- Resolution range: 21 mm

- Assembly: SAE standard 5 holes

- Rated current for alarm switch: 500mA

- Operating temperatures: - 40 to 85 Celsius

- Fit for Fuel Level Gauge and Water Level Gauge

- Sensor Length :300 mm ,350 mm ,400mm, 450 mm

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket

- Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American)

Can be customized:

Sensor Length:

100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on

Output signal:

0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on

The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~

Package Include:

1 x Sensor

1 x Gasket

5 x Screws

Connection:

Blue wire: connect the ground wire

Brown wire: connect the gauge signal wire

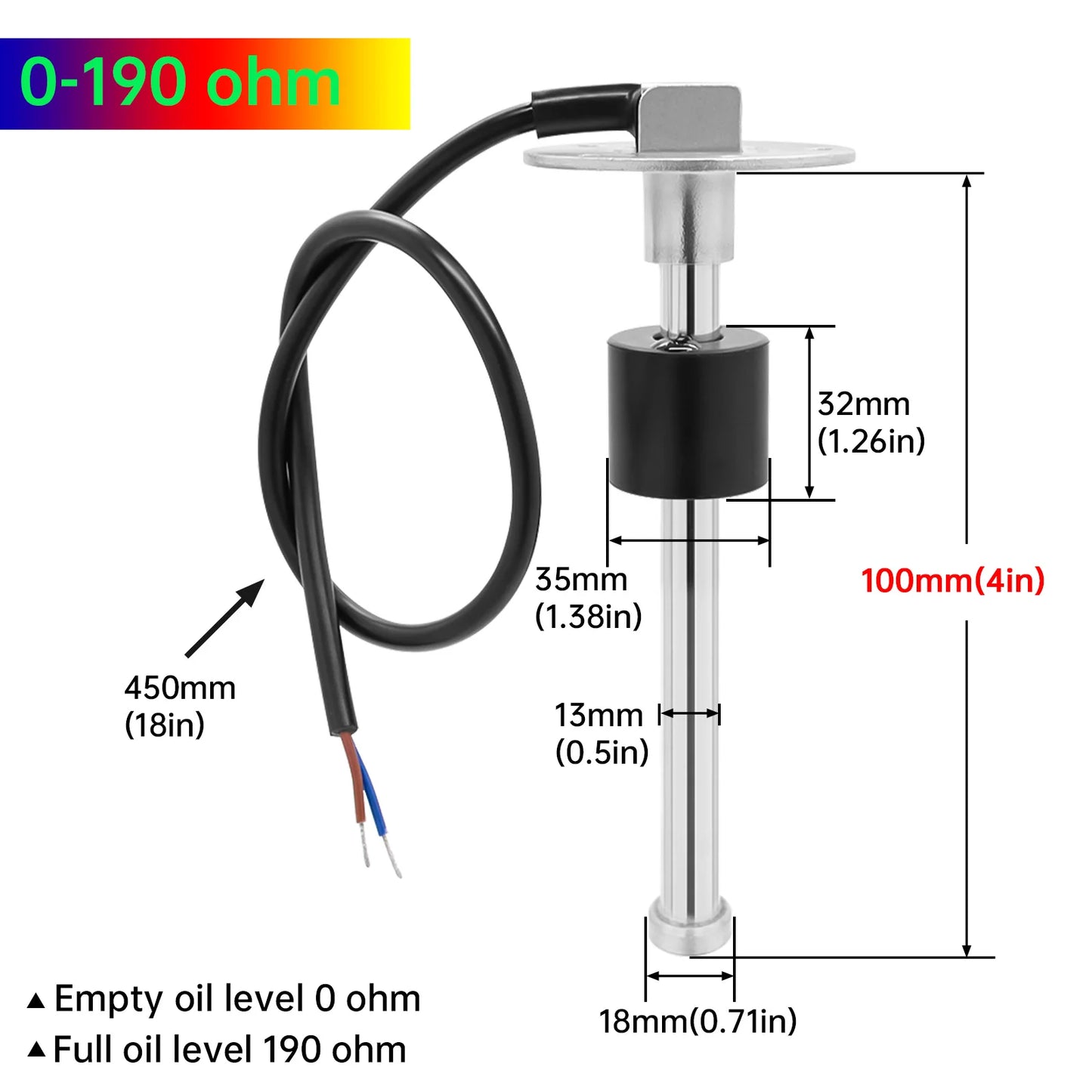

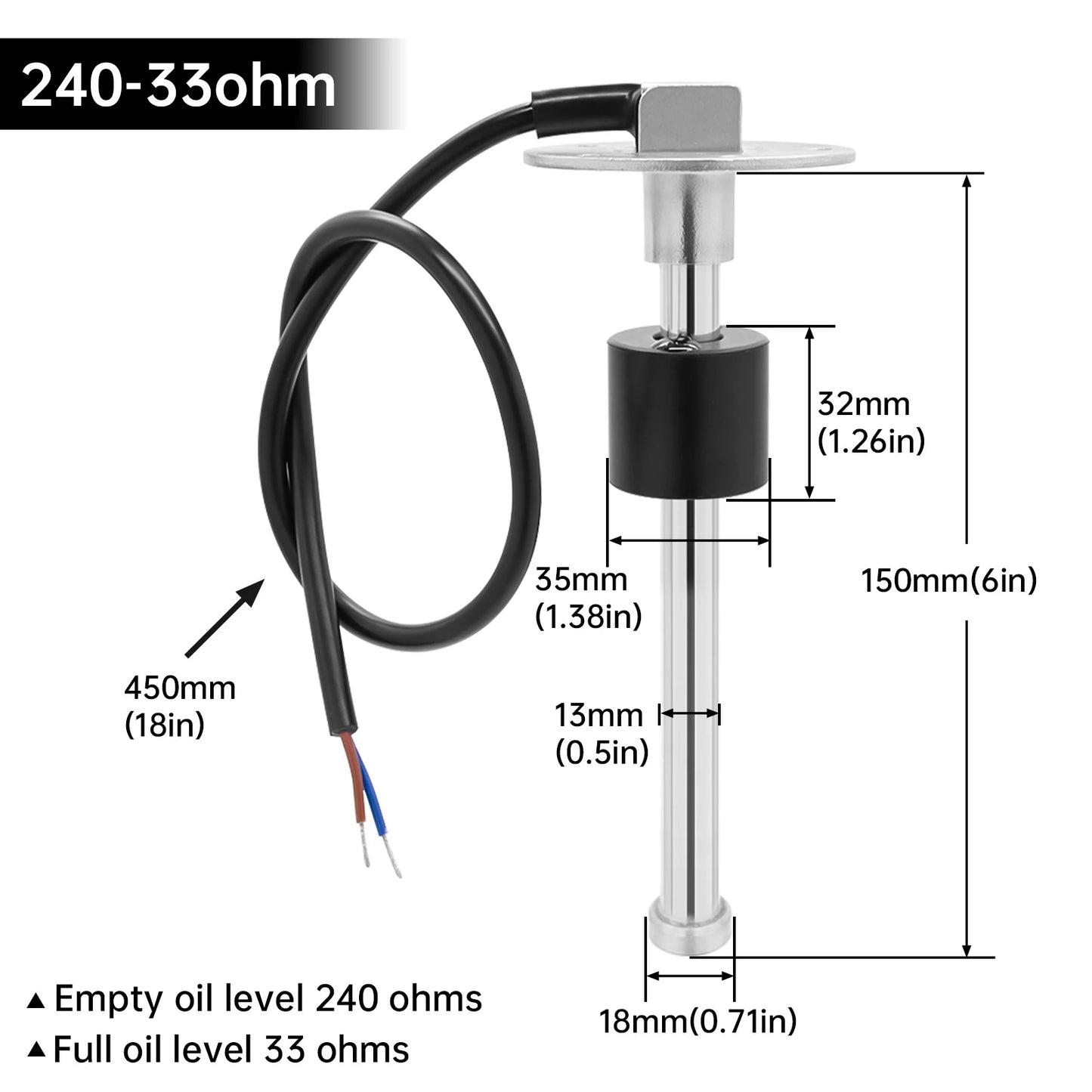

☆Empty oil level 0 ohm/240 ohm

★Full oil level 190 ohm/33 ohm

Please attention :

0~190 ohm sensors can only be applied to 0~190 ohm fuel gauge.

240~33 ohm sensors can only be applied to 240~33 ohm fuel gauge.

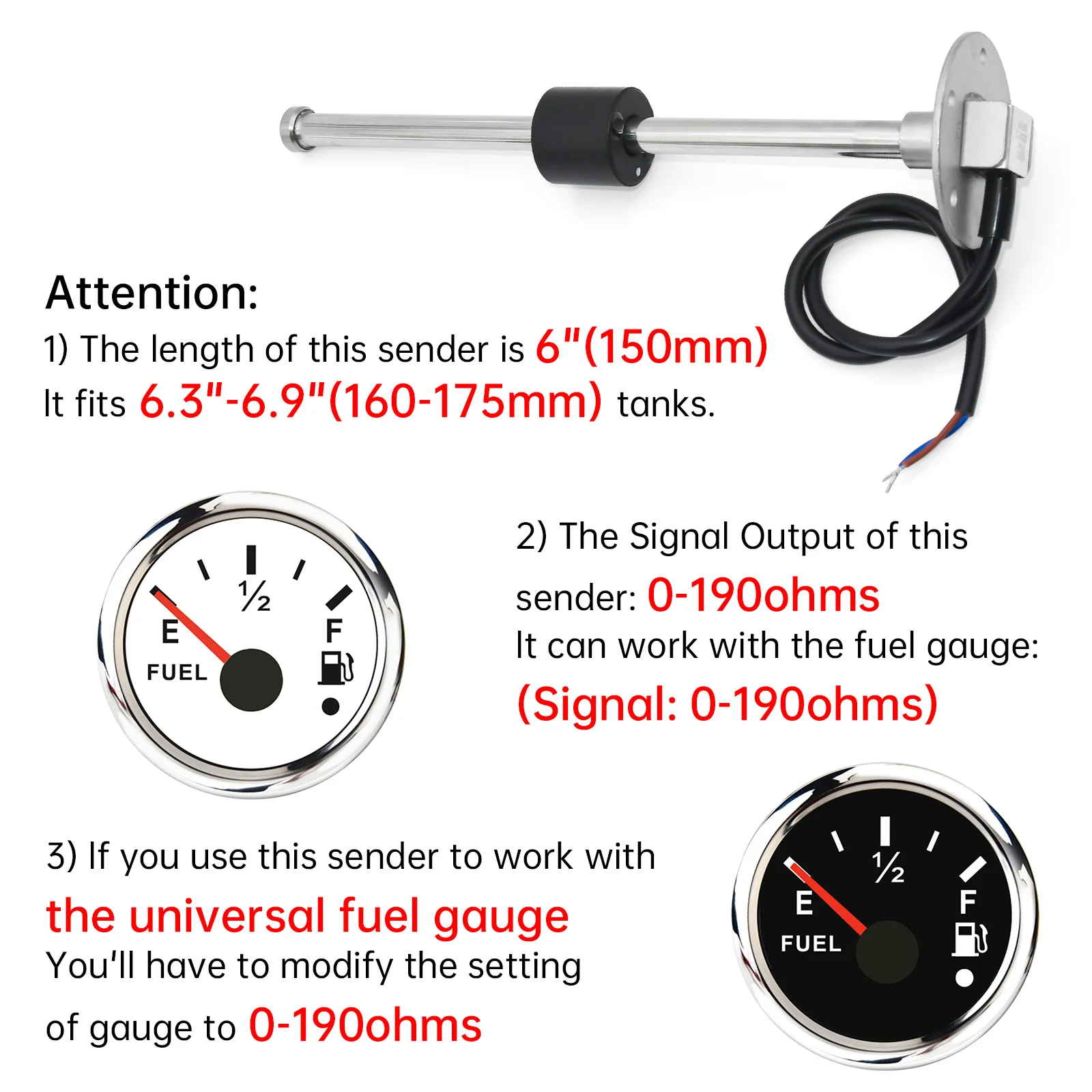

Attention:
1) The length of this sender is 6"(150mm) , lt fits 6.3"-6.9"(160-175mm) tanks.
2) The Signal Output of this sender: 0-190ohms , lt can work with the fuel gauge: (Signal: 0-190ohms)
3) lf you use this sender to work with the universal fuel gauge , You'll have to modify the setting of gauge to 0-190ohms
