SPECIFICATIONS

Brand Name: Dsservo

Origin: Mainland China

Material: Metal

RC Parts & Accs: Servos

For Vehicle Type: BajaS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembly Category

Technical parameters: KV1100

Model Number: DS3218 update and DS3218 Pro

Four-wheel Drive Attributes: Assemblage

Sepcification:

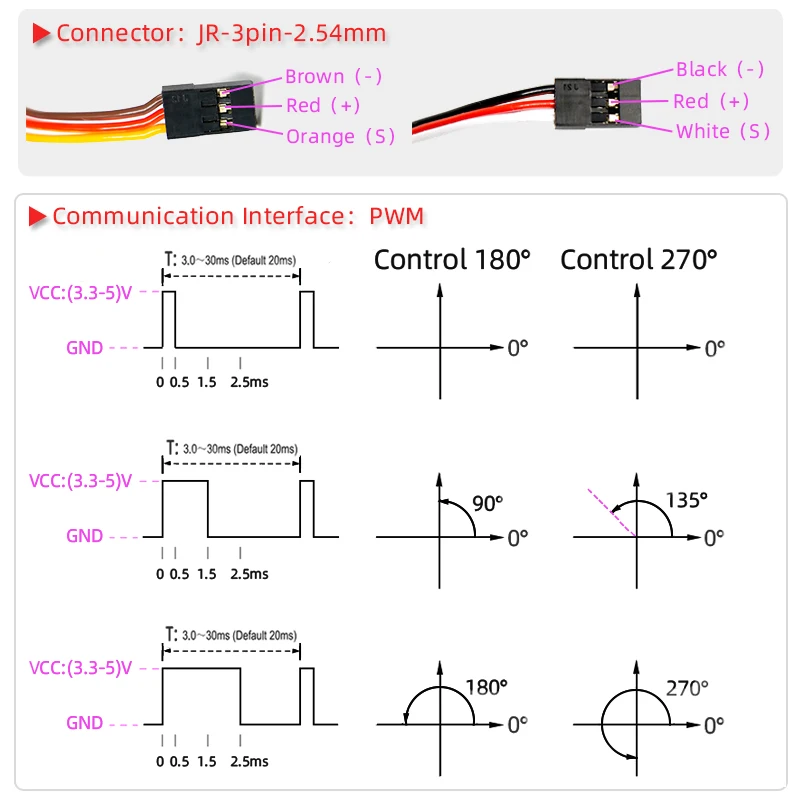

Brand: Dsservo Packing List: 1x   digital servo 1x   25T adjustable metal servo arm 1x   accessory bag Apply Environmental Conditon: 1.Storage Temperature Range:-30°C~80°C 2.Operating Temperature Range:-25°C~70°C Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 58g±2g 3. Limit angle: 360° 4.Bearing: 2BB 5.Horn gear spline: 25T   Diameter:5.9mm 6.Case : Engineering plastics+Aluminum alloy 7.Connector wire: 320mm±5mm 8.Motor: Carbon brush motor Electrical Specification: 1.Working voltage range:  4.8 - 6.8V 2.Command signal: Pulse width modification 3.Amplifier type: Digital controller 4.Pulse width range: 500～2500usec 5.Neutral position: 1500usec 6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec) 7.Dead band width: 3 usec 8.Rotating direction Counterclockwise: (when 1000～2000usec)
